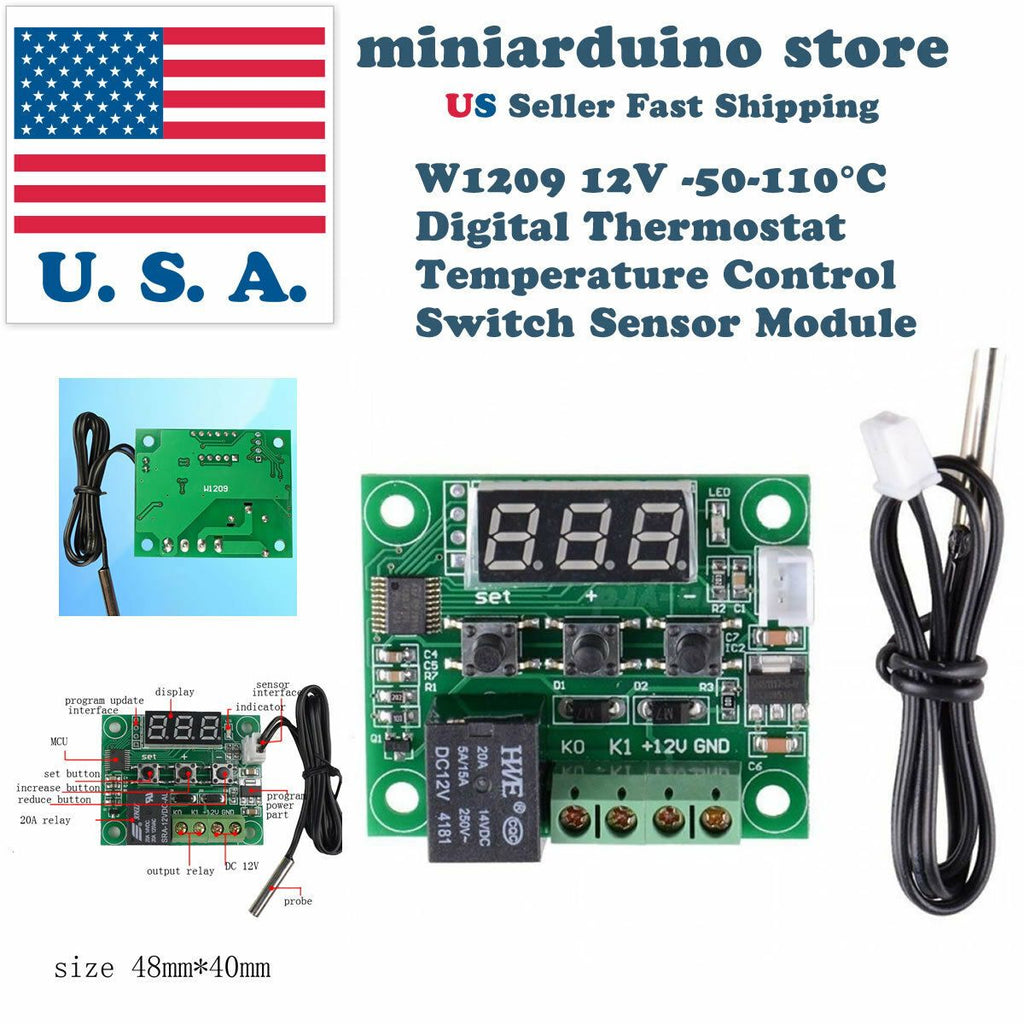

W1209 Digital thermostat Temperature Control Switch Sensor + Acrylic Case Box US

Out of stock
Business & Industrial:Automation, Motors & Drives:Control Systems & PLCs:PLC Peripheral Modules:PLC Temperature Modules
Features: 100% brand new and high quality guarantee. Temperature range :-50-110 . Dimensions: 48.5 * 40mm. Temperature control mode: ON / OFF. Resolution When temperature is 0.1 , the resolution...
  customers are viewing this product
  • 100% brand new and high quality guarantee.
  • Temperature range :-50-110 .
  • Dimensions: 48.5 * 40mm.
  • Temperature control mode: ON / OFF.
  • Resolution When temperature is 0.1 , the resolution is -9.9~99.9, other temperature segment is 1 .
  • Control accuracy: 0.1 .
  • Hysteresis accuracy: 0.1 .
  • Refresh rate: 0.5S.
  • High temperature protection 0-110 .
  • Supply voltage: DC 12V.
  • Static current: 35MA, attract current 65MA.
  • Output voltage: DC 12V.
  • Output power: 20A relay .
  • Measurement input: NTC (10K 0.5%) Waterproof Sensor.
  • Environmental requirements: -10 ~ 60 Humidity 20% -85%.

  • How to use:
  • Connect the power supply and the load, you can supply to the controller.
  • Is displayed as a measured temperature.
  • Press the SET button, the display flashes the temperature.
  • Press - to set the desired temperature.
  • After setting press SET to confirm return.
  • The controller automatically performs the relay by setting off.
  • Lights, LED status descriptions.
  • Indicator: Off The relay is switched off, Always indicate the relay is closed.
  • LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay.
  • the display --- as high temperature protection.

  • Package Included:
  • 1 x -50-110 C W1209 12V Digital thermostat Temperature Control Switch sensor Module.
  • 1 x Acrylic Clear Case Box with mounting screws (assembly required)
