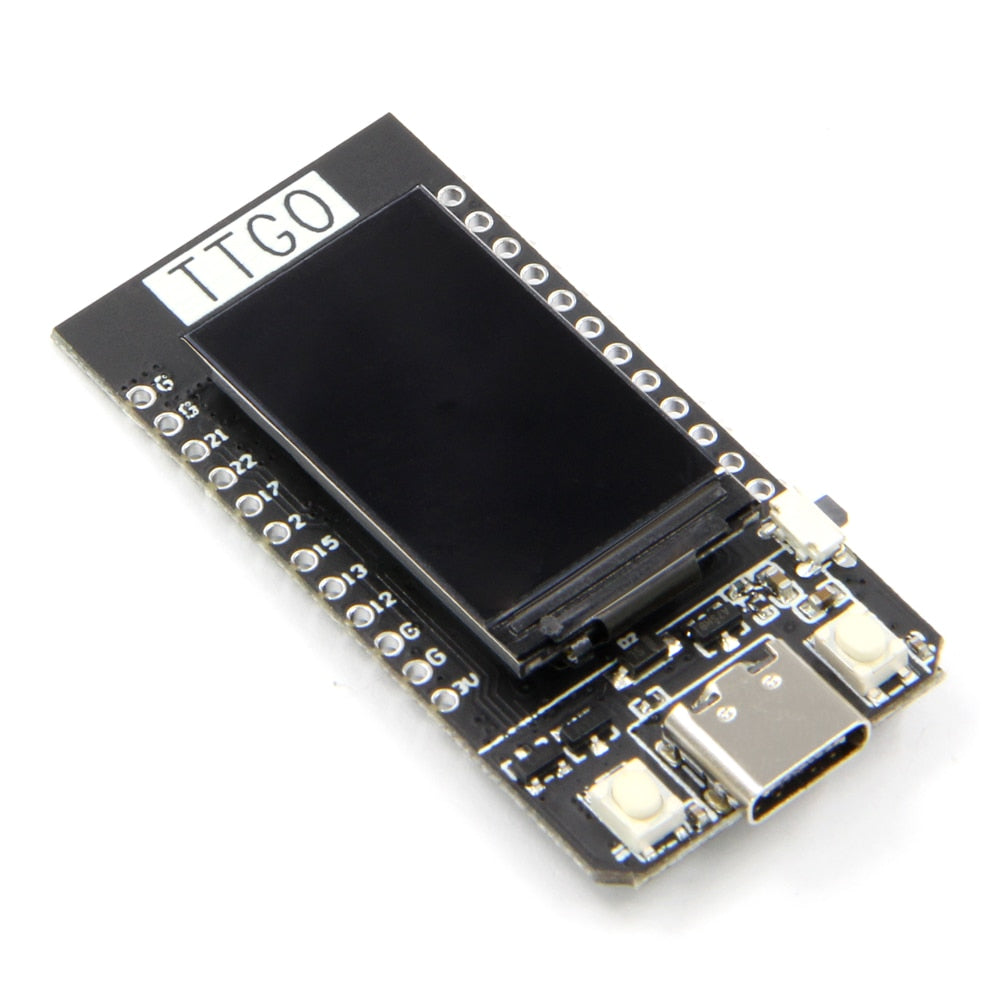

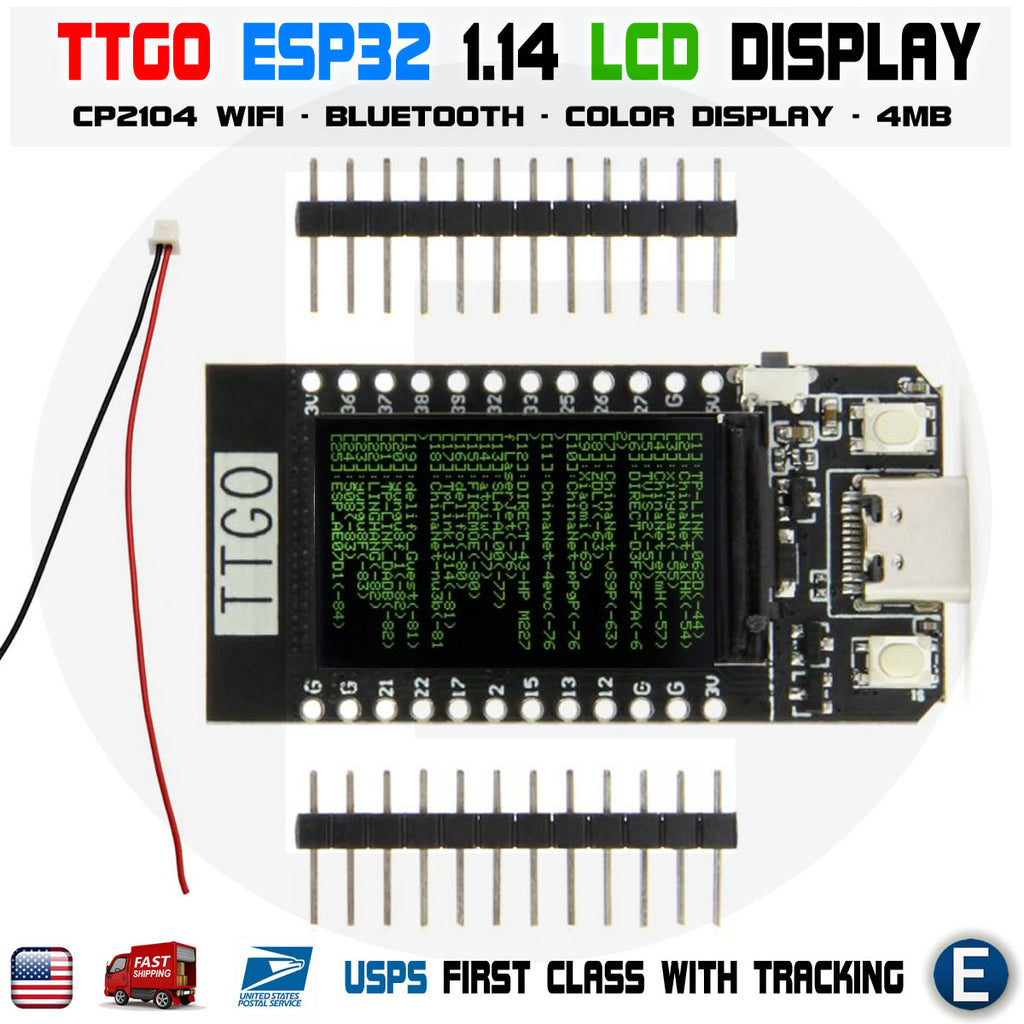

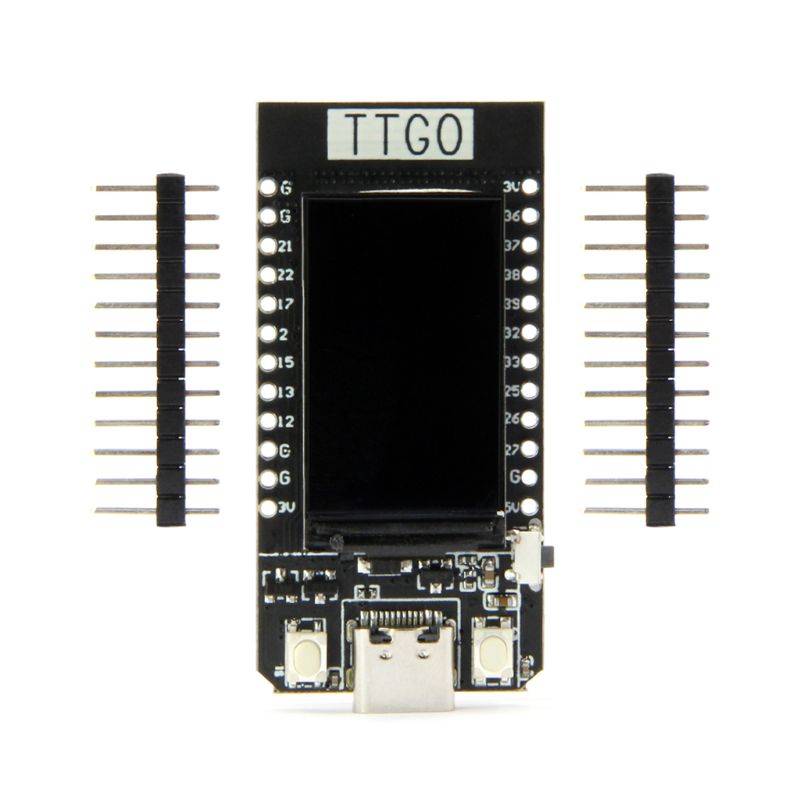

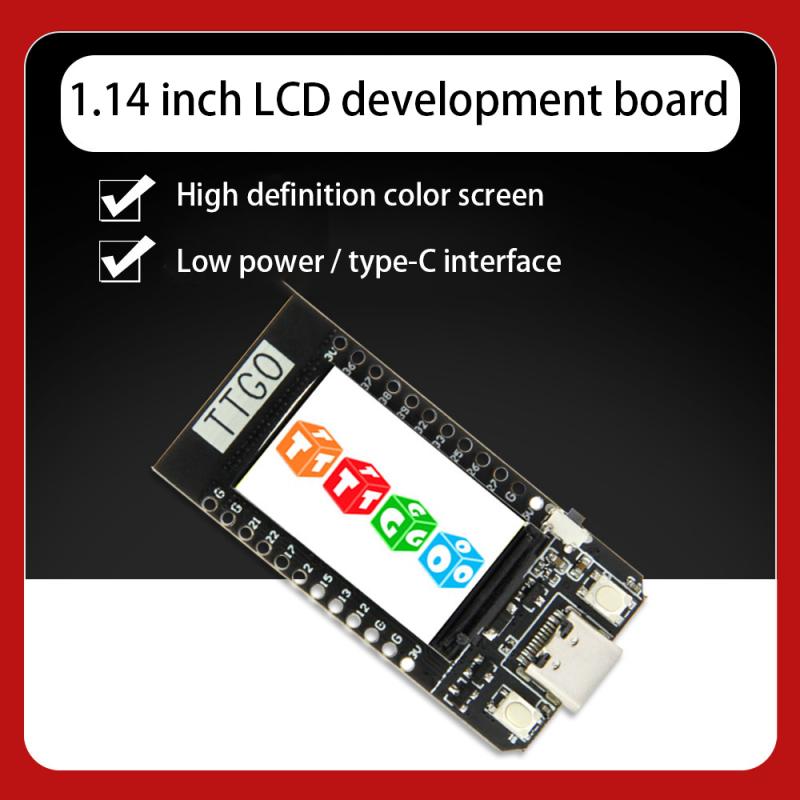

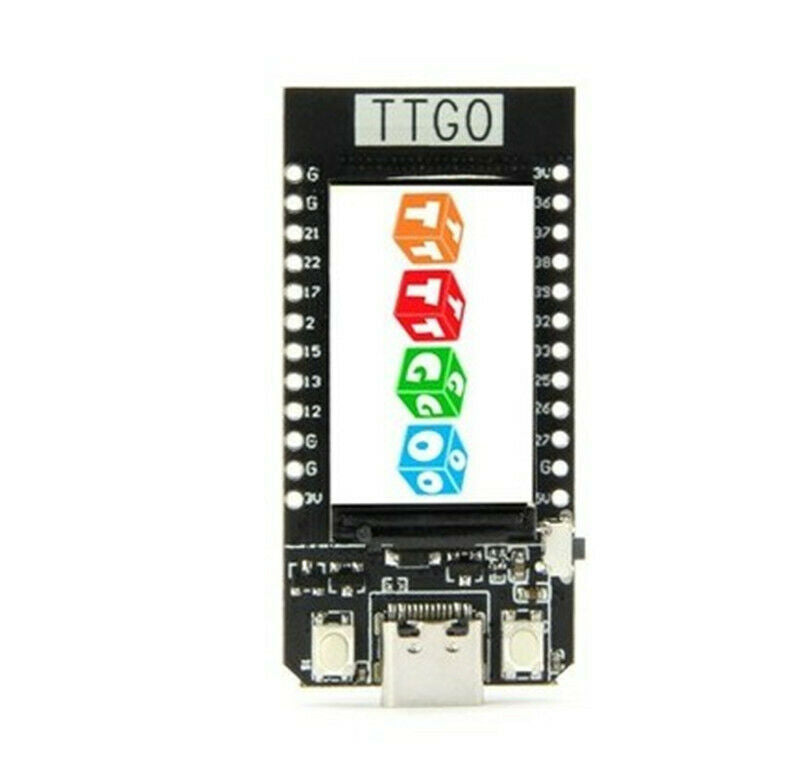

TTGO T-Display ESP32 WIFI & BLT Module Development Board 1.14 " LCD 4MB CP2104

Out of stock
Business & Industrial>Electrical Equipment & Supplies>Electronic Components & Semiconductors>Semiconductors & Actives>Development Kits & Boards
A-03-10-07
Hardware Specifications Chipset - ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor FLASH - QSPI flash 4MB /16MB SRAM- 520 kB SRAM Button - Reset USB to TTL - 4MB CP2104 Mo...
$18.89
  customers are viewing this product

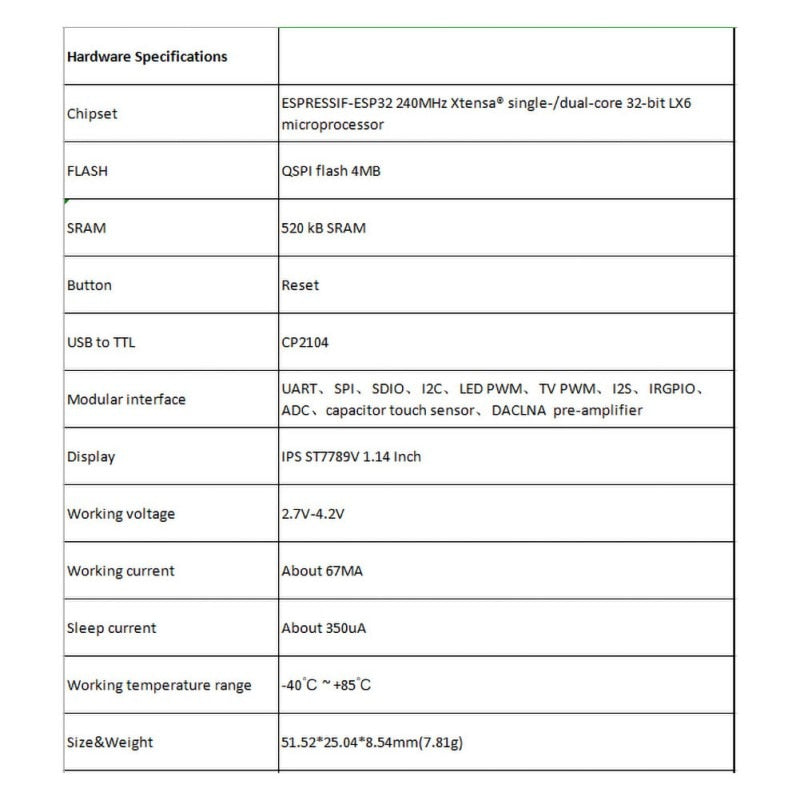

Hardware Specifications
Chipset - ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASH - QSPI flash 4MB /16MB
SRAM- 520 kB SRAM
Button - Reset
USB to TTL - 4MB CP2104
Modular interface - UART、SPI、SDIO、I2C、LED PWM、TV PWM、I2S、IRGPIO、ADC、DACLNA pre-amplifier
Display - IPS ST7789V 1.14 Inch
Working voltage - 2.7V-4.2V
Working current - About 67MA
Sleep current - About 350uA
Working temperature range - -40℃ ~ +85℃
Size&Weight - 51.52*25.04*8.54mm(7.81g)

Power Supply Specifications
Power Supply - USB 5V/1A
Charging current - 500mA

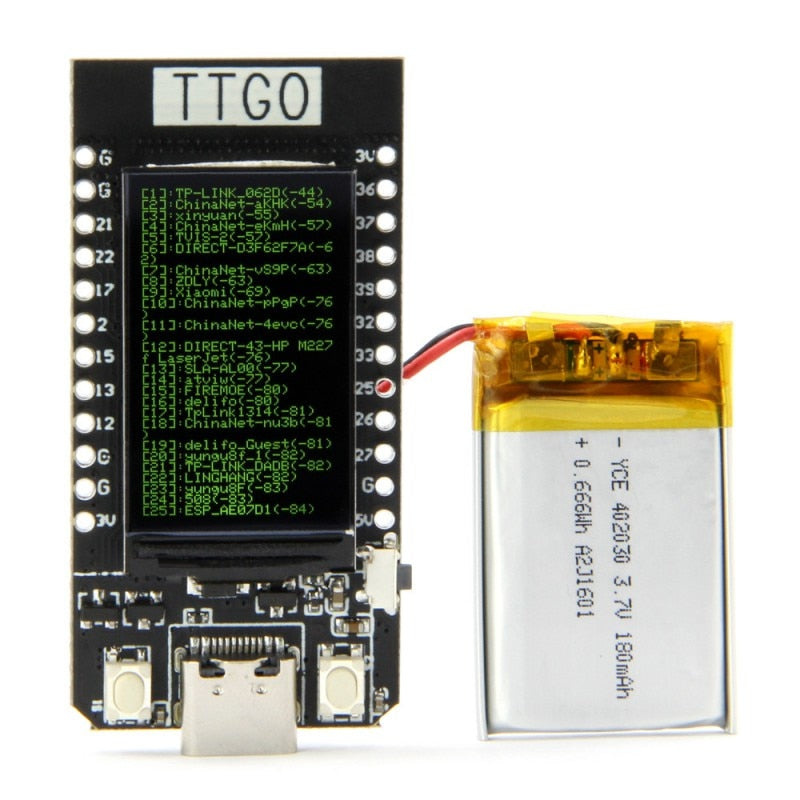

Battery - 3.7V lithium battery (NOT INCLUDED)
JST Connector - 2Pin 1.25mm
USB - Type-C

Wi-Fi
Standard - FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
Protocol - 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization support 0.4μS Protection interval
Frequency range - 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power - 22dBm
Communication distance - 300m

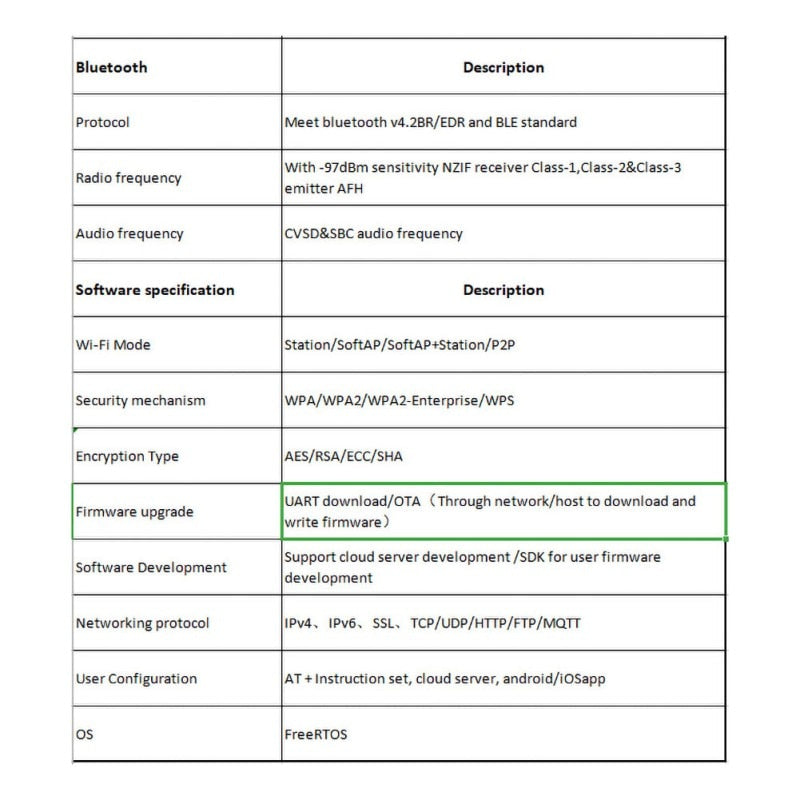

Bluetooth
Protocol - Meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency - With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency - CVSD&SBC audio frequency

Software specification
Wi-Fi Mode - Station/SoftAP/SoftAP+Station/P2P
Security mechanism - WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type - AES/RSA/ECC/SHA
Firmware upgrade - UART download/OTA(Through network/host to download and write firmware)
Software Development - Support cloud server development /SDK for user firmware development
Networking protocol - IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration - AT + Instruction set, cloud server, android/iOSapp
OS - FreeRTOS

T-Display Features:
1. Colorful Display
2. Low power consumption
3. Battery-powered charging circuit
4. Have Custom Button

Github link: https://github.com/Xinyuan-LilyGO/TTGO-T-Display

Package Included:

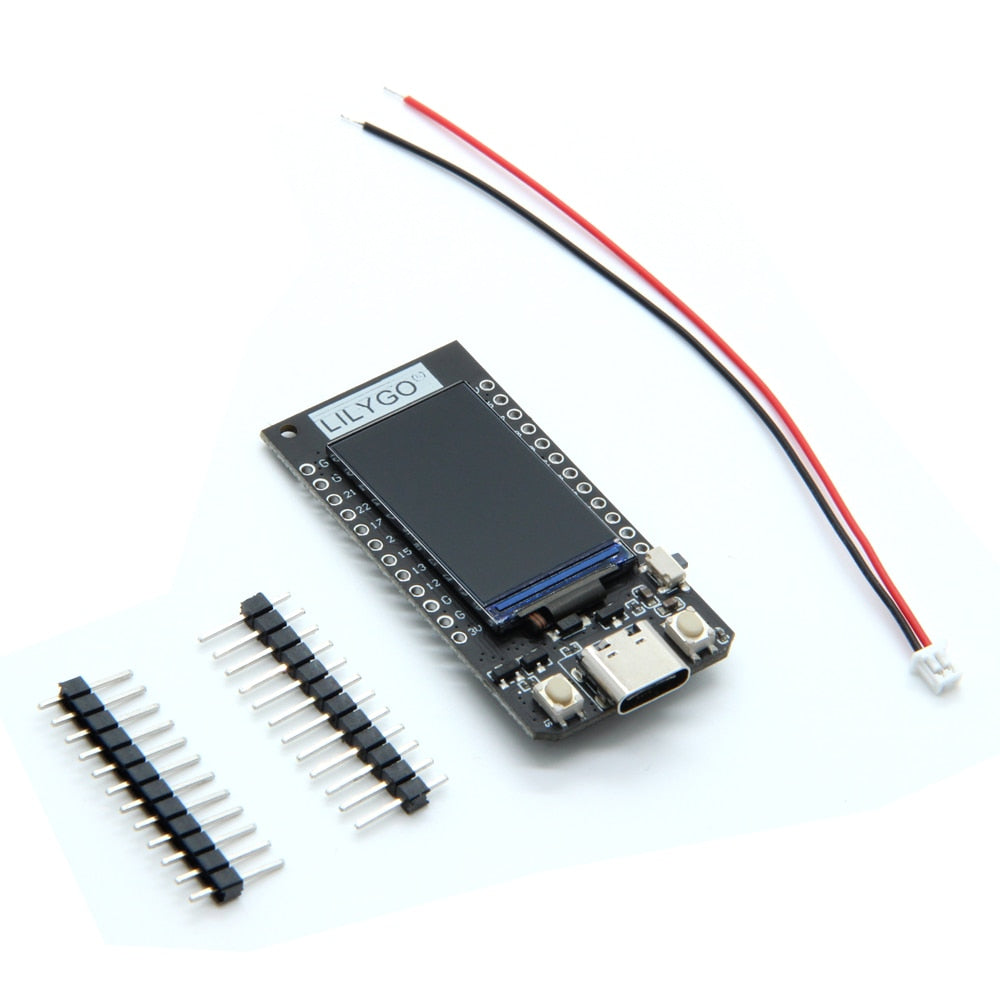

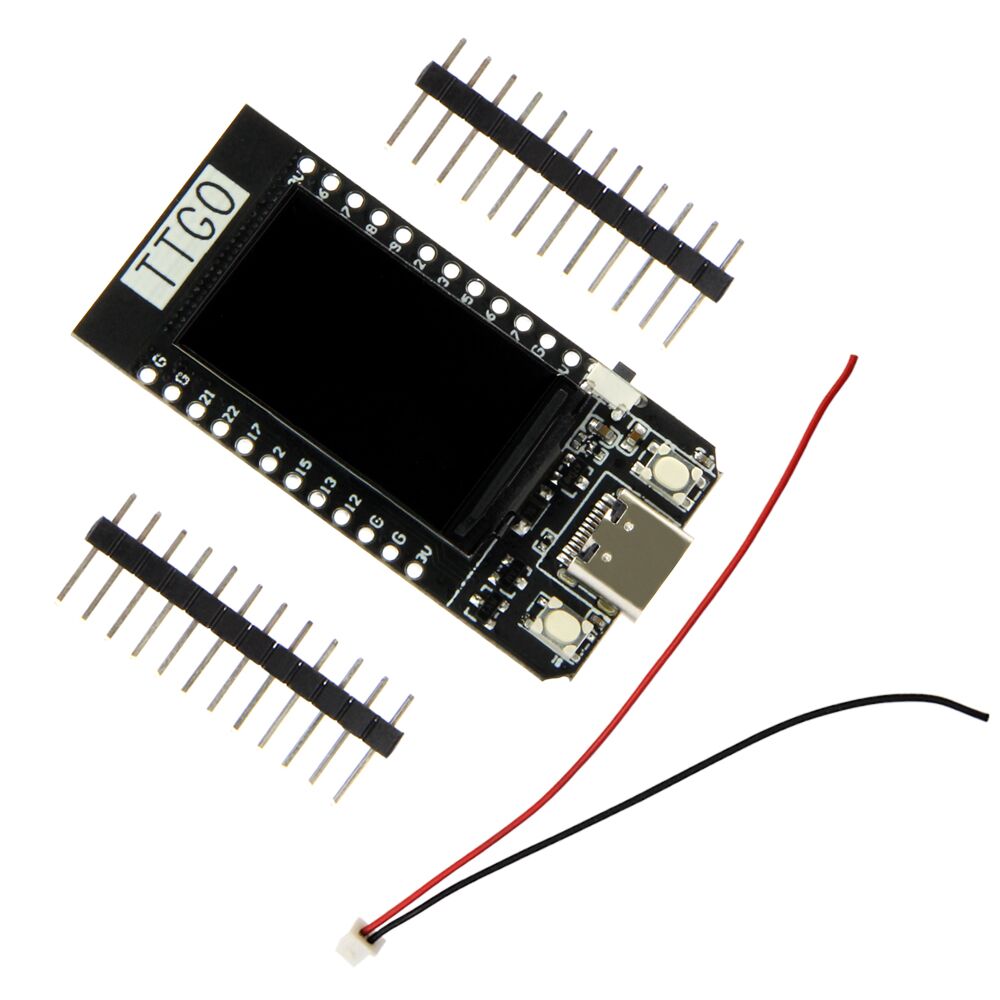

1 x TTGO T-Display ESP32 WIFI & BLT Module Development Board 1.14 " LCD 4MB CP2104
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
