TP4056 + 3.7V 550mAh 612338 lithium polymer lipo rechargeable battery

Out of stock
Consumer Electronics:Multipurpose Batteries & Power:Rechargeable Batteries
Built-in protection circuit PCM for prevent over charging or over dischargingModel: 612338Capacity : 550MAHVoltage: 3.7VDimensions: Length 38MM 23MM width thickness 6.1MMTP4056 Description:Charge m...
$6.63
  customers are viewing this product

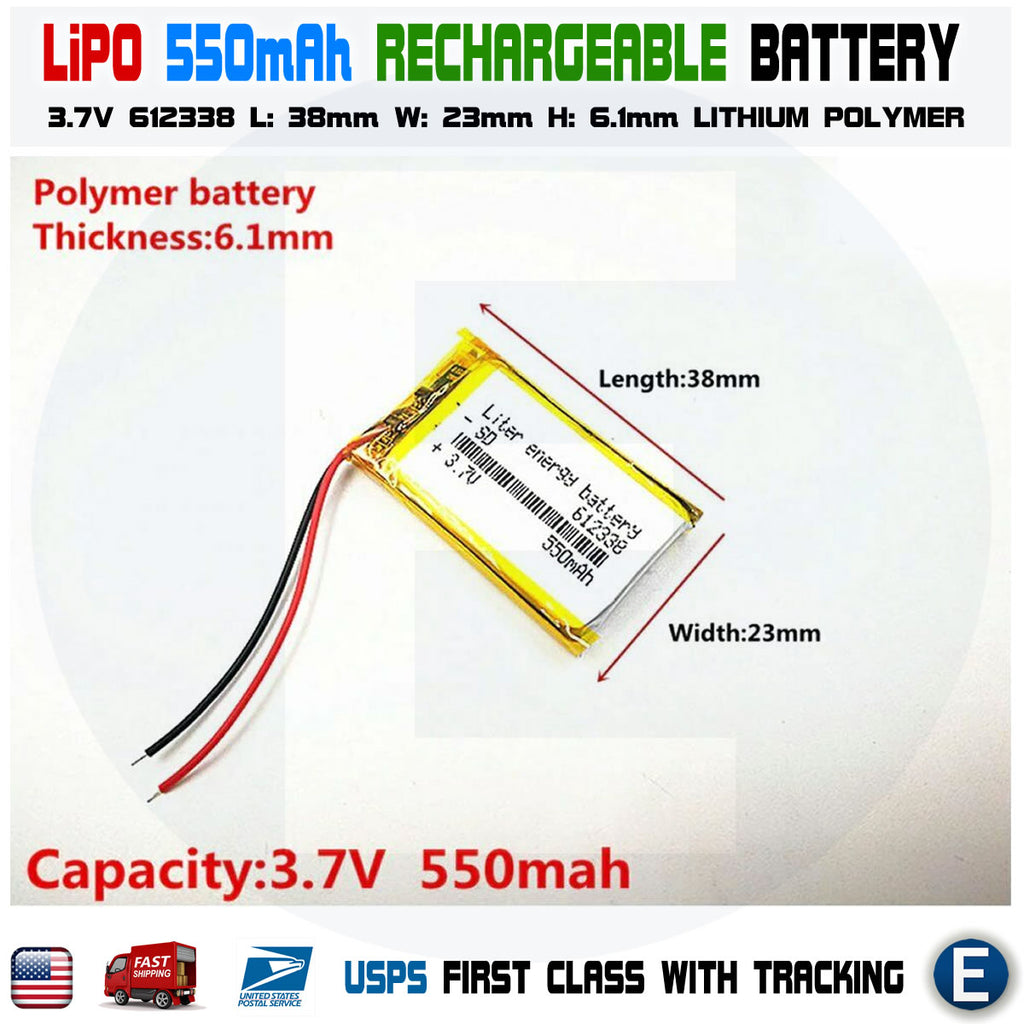

Built-in protection circuit PCM for prevent over charging or over discharging

Model: 612338
Capacity : 550MAH
Voltage: 3.7V
Dimensions: Length 38MM 23MM width thickness 6.1MM

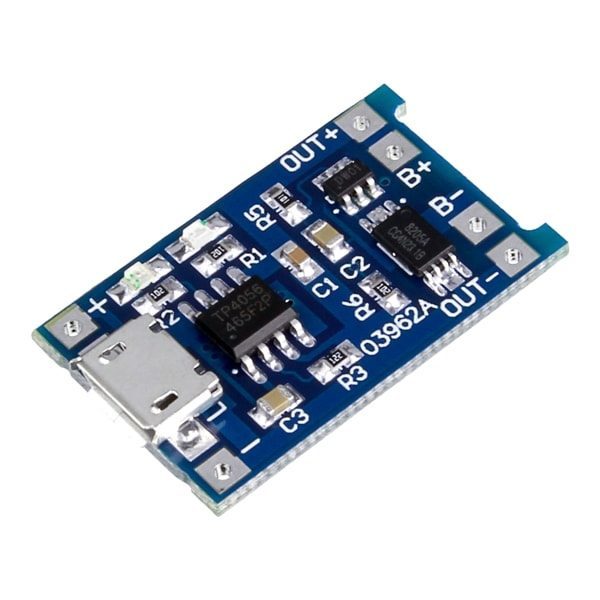

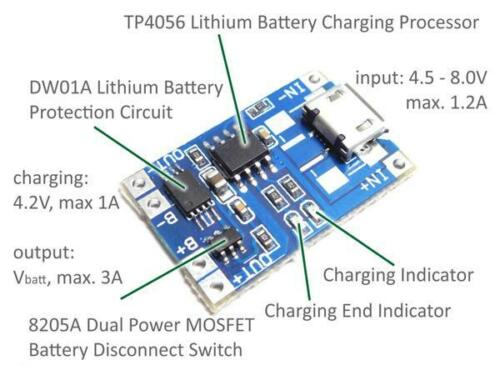

TP4056 Description:

Charge module - Linear charging
It has MICRO USB female
It still retain the input voltage wiring solder joints, can be very convenient to DIY

Specifications:
Current- 1A adjustable.
Charge precision- 1.5%.
Input voltage- 4.5V-5.5V.
Full charge voltage- 4.2V.
Led indicator- red is charging green is full charged.
Input interface- micro USB.
Work temperature- -10℃ to +85℃.
Inverted polarity- NO.
Size: 27mm X 17mm.
1 x 18650 batteries (6000 mAh) you can charge with this charger in parallel at the same time

NOTE:
Only one 18650 batteries (6000 mAh) you can charge with this charger in parallel at the same time
1. Ampere meter can only be connected to 5v input end of the module.
2. It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.
3. The connection wire should not be too thick.
4. Make sure the connect point is good.
5. If the input voltage is too high, like 5.2v, the current will be less than 1000 mA, it is normal. It is protection function, auto-subtract the charging current to avoid burn damage to chip.
6. NO Reversal polarity.

Package Included:
1 x 3.7V 550mAh 612338 lithium polymer lipo rechargeable battery
1 x TP4056 charging module
Note: This battery is sold without any connectors.
No returns on Batteries, please make sure the size of the battery is correct for your project. We don't provide technical assistance, please make sure that you are familiar with the product before purchasing.
