STM32F401 256KB ROM Development Board V1.2 STM32F401CCU6 STM32F411CEU6 STM32F4 Learning Board

Out of stock
A-03-11-02
Why choose 401? In the F401 series, the chip is the cheapest, even cheaper than some F1, and crushed F1 on the main frequency, and has a floating-point arithmetic module, the IO port contains all t...
$7.63
  customers are viewing this product

Why choose 401? In the F401 series, the chip is the cheapest, even cheaper than some F1, and crushed F1 on the main frequency, and has a floating-point arithmetic module, the IO port contains all the basic functions. Therefore, it is possible to provide a learning platform with a very high cost performance for beginners. In practical applications, it is not because the computing power is insufficient, and the IO port is incomplete and hinders development.
25MHZ high speed crystal oscillator 32.768k low speed crystal oscillator

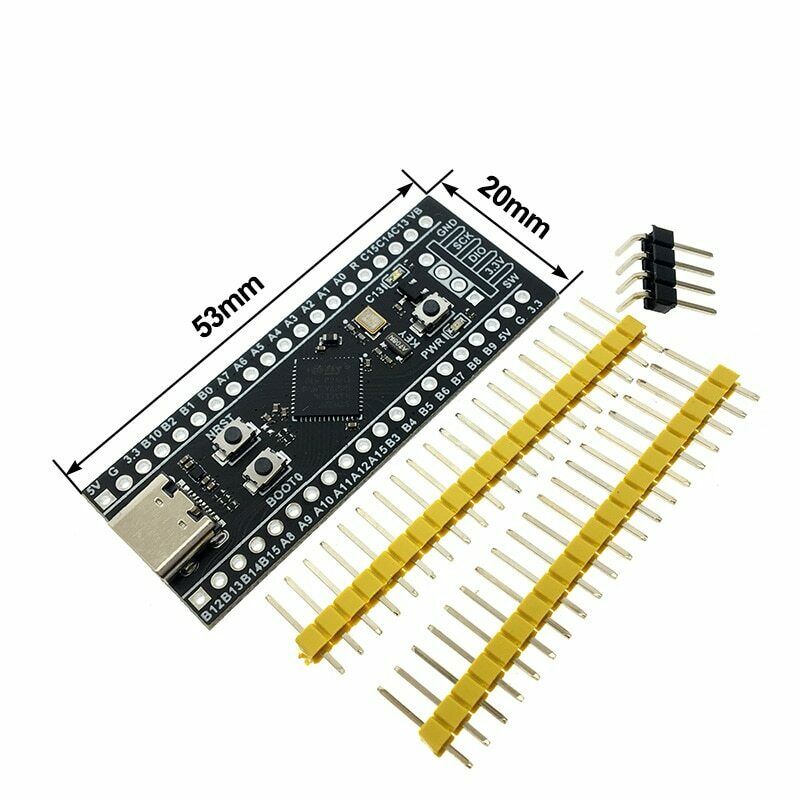

STM32F401CCU6 core board 64KB RAM 256KB ROM
BOOT settings are changed from jumper to button to reduce the installation trouble by pressing
BOOT0 and NRST, releasing NRST to access serial port download, DFU download, providing ST official multi-in-one STM32 Cube Programmer burning software.

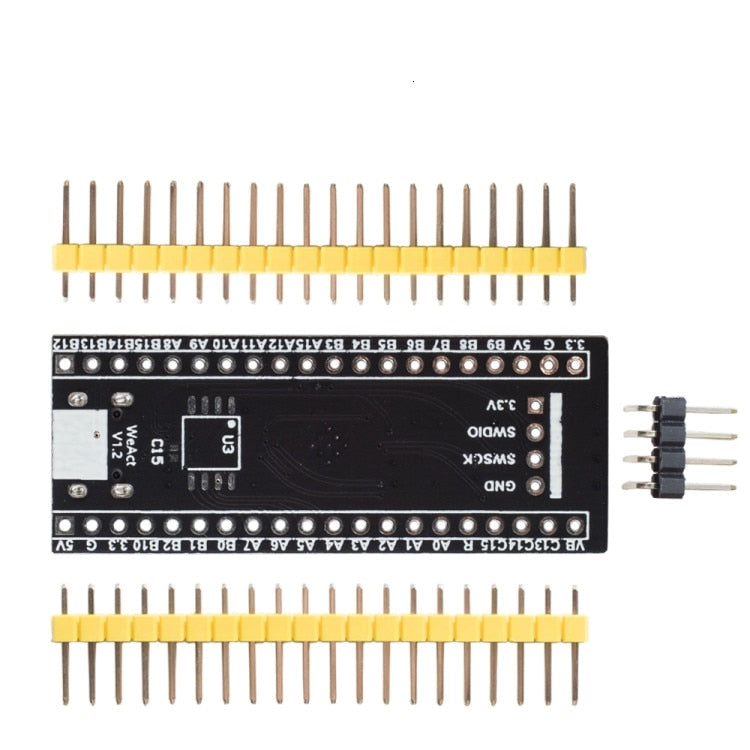

The GND is changed to 5V B9 5V GND, which can directly connect a small steering gear without additional wiring and reduce development time.
Previous versions of the sole can not be welded to the foot, no impact.

Features
High performance microcontroller STM32-401
Great price / performance ratio

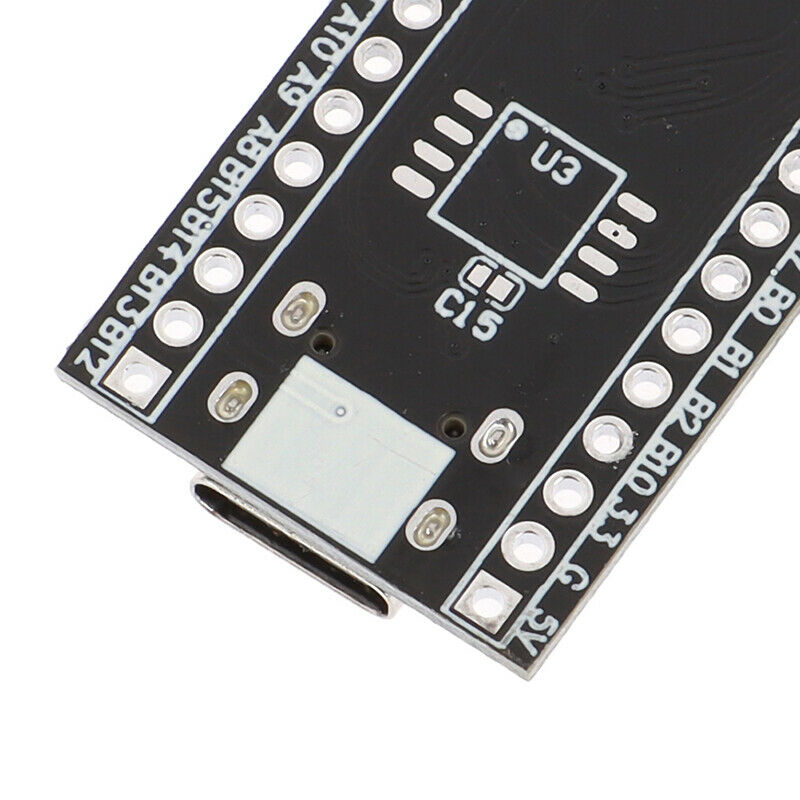

Clean PCB layout with no components on the underside.

Package Included:
1 x STM32F401 256KB ROM Development Board V1.2 STM32F401CCU6 STM32F411CEU6 STM32F4 Learning Board
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
