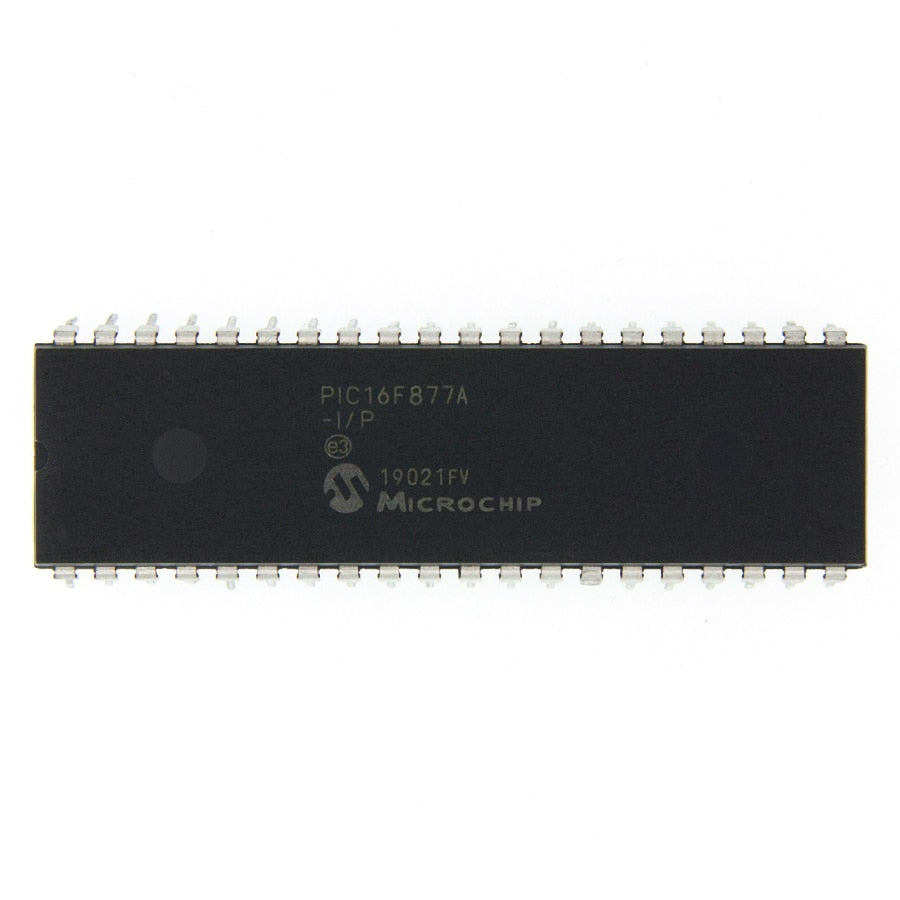

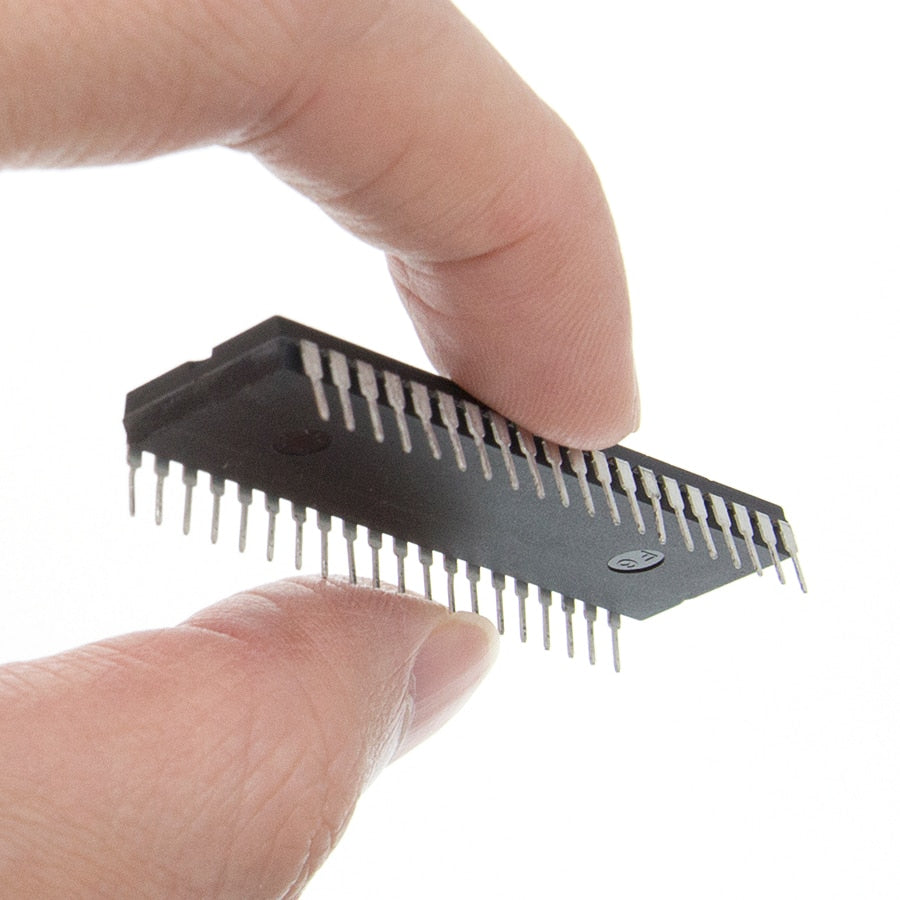

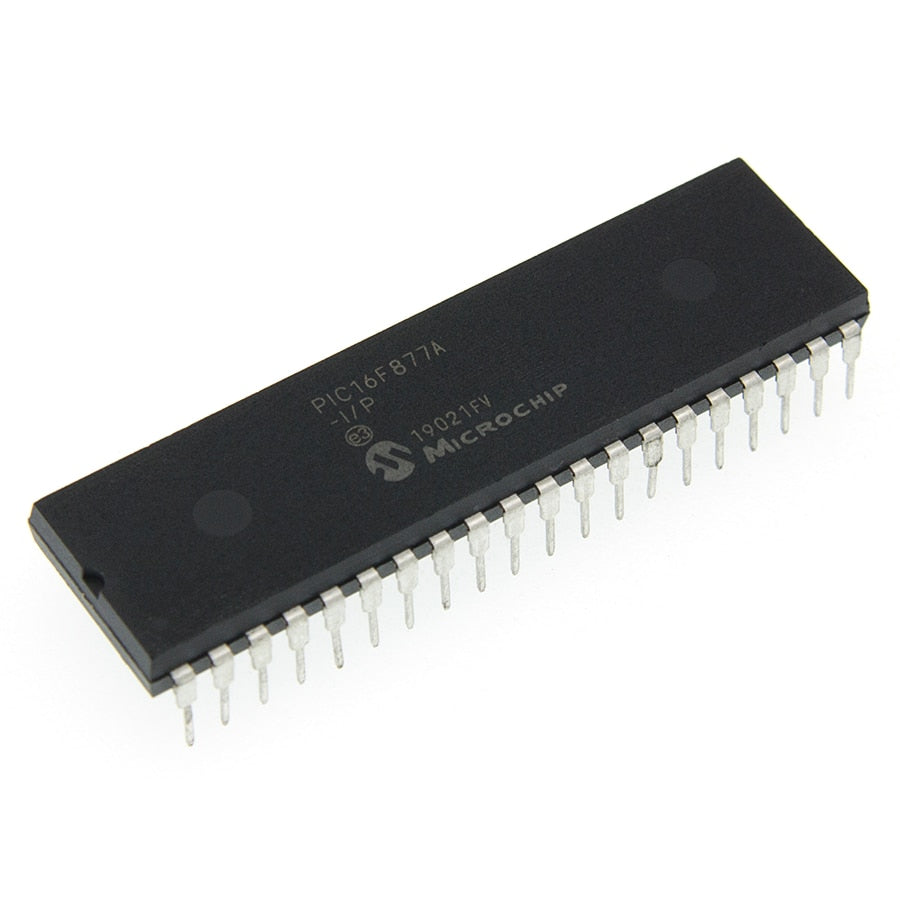

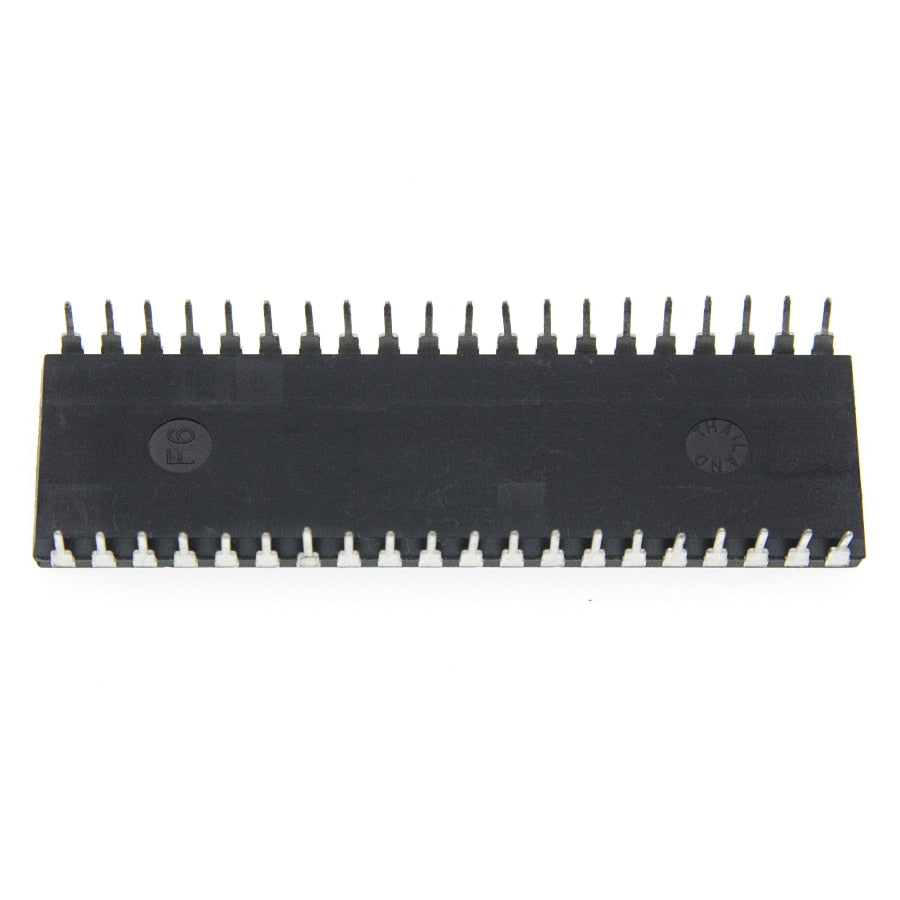

PIC16F877A PIC16F877A-I/P 8-bit Microchip Microcontroller IC Integrated Circuit DIP-40

In stock
PIC16F877A datasheet specifies that this CMOS FLASH-based 8-bit microcontroller packs Microchip’s powerful PIC architecture into an 40- or 44-pin package and is upwards compatible with the PIC16C5X...
$6.63
$6.63
  customers are viewing this product

PIC16F877A datasheet specifies that this CMOS FLASH-based 8-bit microcontroller packs Microchip’s powerful PIC architecture into an 40- or 44-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F877A features 256 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 8 channels of 10-bit Analog-to-Digital (A/D) converter, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI) or the 2-wire Inter-Integrated Circuit (I²C) bus and a Universal Asynchronous Receiver Transmitter (USART).

PIC16F877A Features
Package Type: DIP
Number of Pins: 40
Family: 8-bit
inputs/outputs (I/O): 33
A-D converters: 8
comparators: 2
Program Memory: 8192 instructions (14K)
RAM: 8kb
EEPROM: 256 bytes
PWM: 2 x 10bit
Freq: 20MHz
2 PWM 10-bit
256 Bytes EEPROM data memory
ICD
25mA sink/source per I/O
Self Programming
Parallel Slave Port
Supply Voltage: 2.0-5.5V

EF68A00P DIP-40 MIT
UPD8155C DIP-40 NEC
XC6847T1P DIP-40 MOTOROLA
SCN68681C1N40 DIP-40 PHILIPS
MC6800P DIP-40 MOTOROLA
TMS5501NL DIP-40 TEXAS
MC6847P DIP-40 MOTOROLA
3850PC DIP-40 FAIR
SC68297P DIP-40 MOTOROLA
MC68B02P DIP-40 MOTOROLA
EF6802P DIP-40 ST
Z8536PS DIP40 ZILOG

Package Included:
1 x PIC16F877A PIC16F877A-I/P 8-bit Microchip Microcontroller IC Integrated Circuit DIP-40
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
