Description

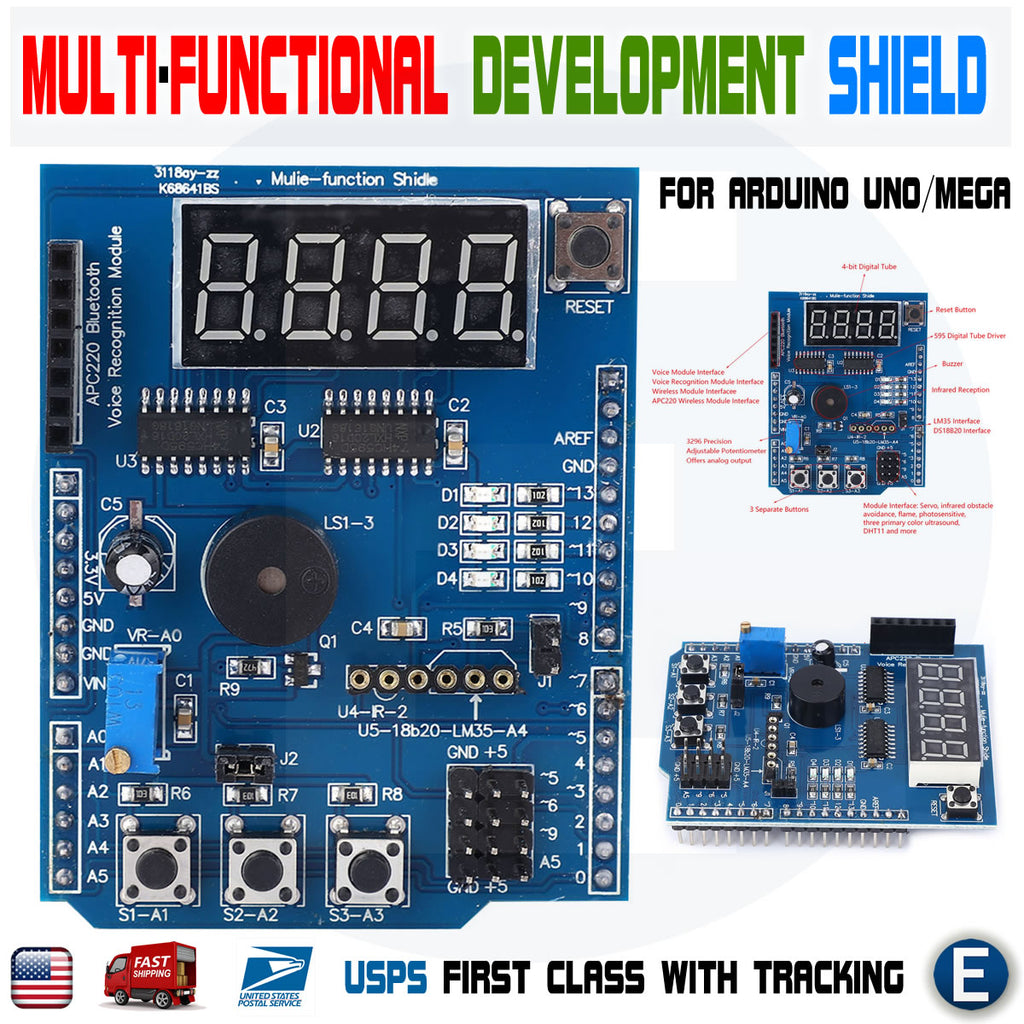

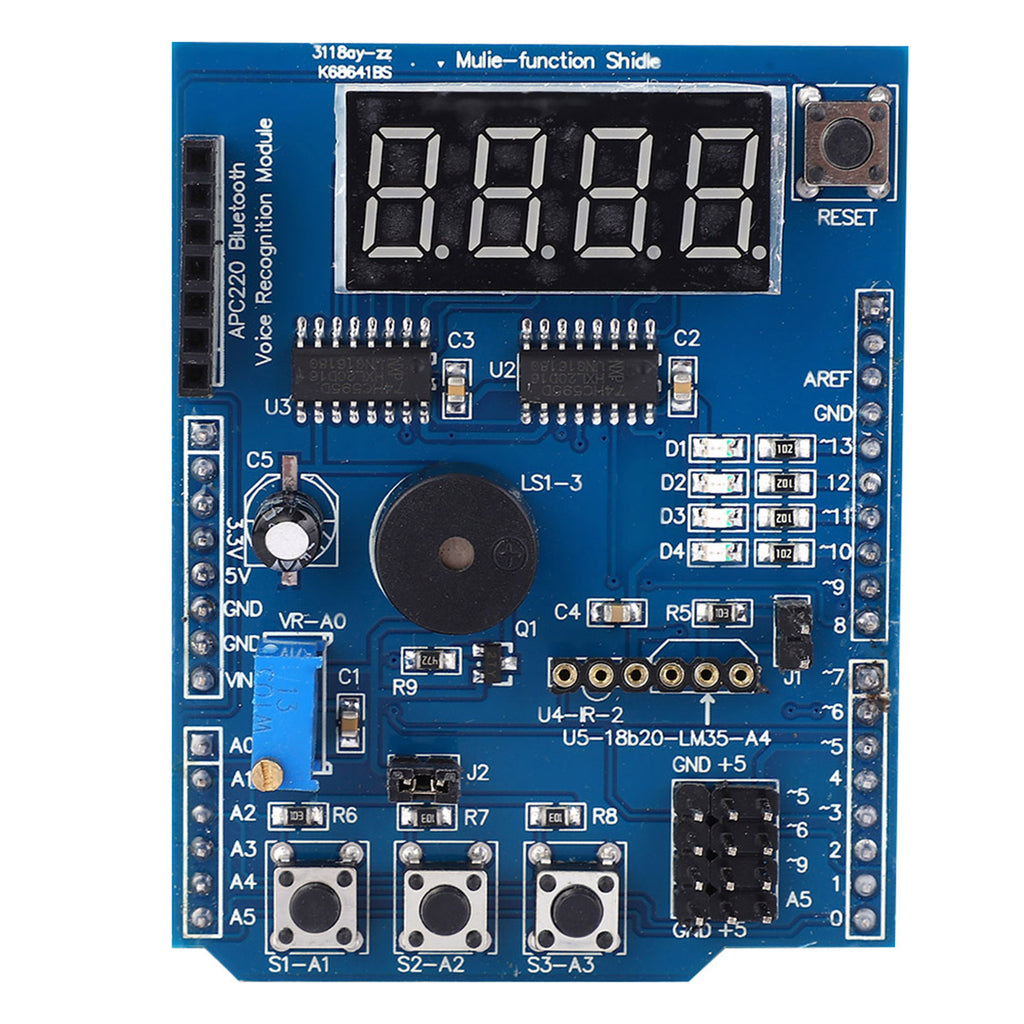

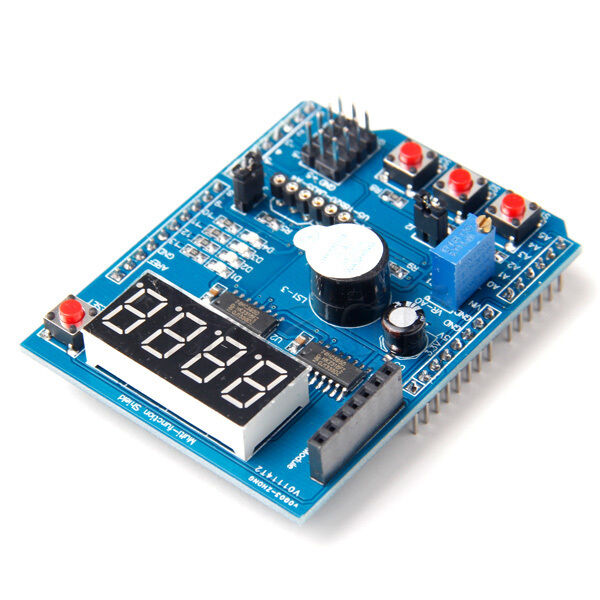

Arduino Multi-Function Shield ProtoShield For Arduino UNO LEONARDO MAGA2560

This module is an open source code base with the Simple i / o platform, and with the use of a similar java, C language development environment. So that you can quickly use the Arduino language and software such as Flash or Processing ... to make interactive works. Arduino can be used to complete the development of electronic components such as Switch or Sensors or other controller, LED, stepper motor, or other output device. Arduino can also operate independently as a software platform that can communicate with, for example, said: flash processing Max / MSP VVVV or other interactive software ..., Arduino development IDE interface is based on open source principles, allows you to download free of charge to develop more and order surprisingly interactive works.

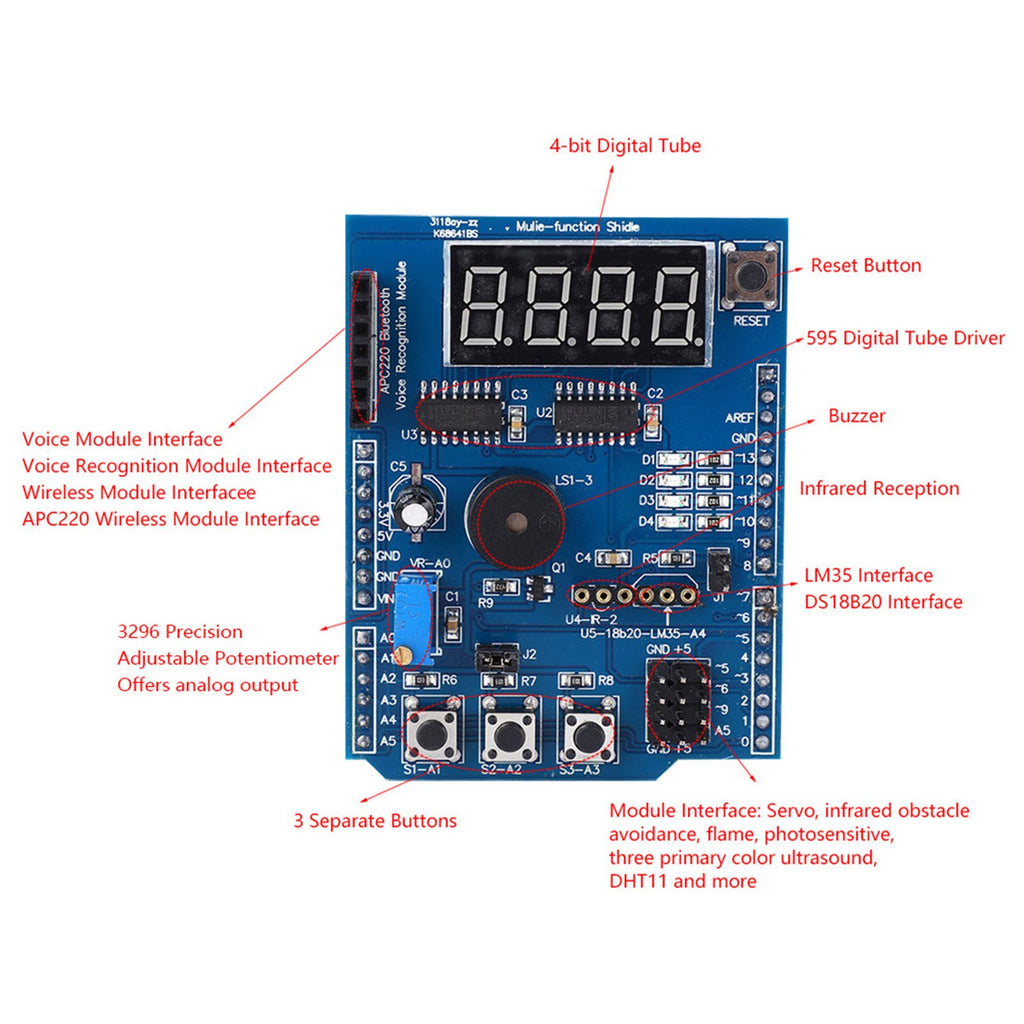

Features:
This board can seamlessly connect with 2009 UNO LEONARDO 2560 and other Mainstream Controller.
4 LED indicator, it can convenient for Debugging.
DS18B20 temperature sensor interface
LM35 temperature sensor interface
3296 precision adjustable potentiometer, with analog input port.
Integrated infrared receiver
Four digital LED Segment Displays (using 74HC595 driver provincial IO learning SPI).
Three separate buttons (red color), a reset button, for experiments (HMI).
With Buzzer
Bluetooth, wireless interfaces, voice module, voice recognition module can be used for wireless communication experiment
Servo interface, easy for drive servos.
Infrared detection interface for easy docking and infrared, to achieve human traffic statistics.

Package included:
1 x Multi-functional Expansion Development Board Base Learning Arduino UNO LEONARDO Mega 2560 Shield ( sensors are not included )
Instructions/code sample/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
