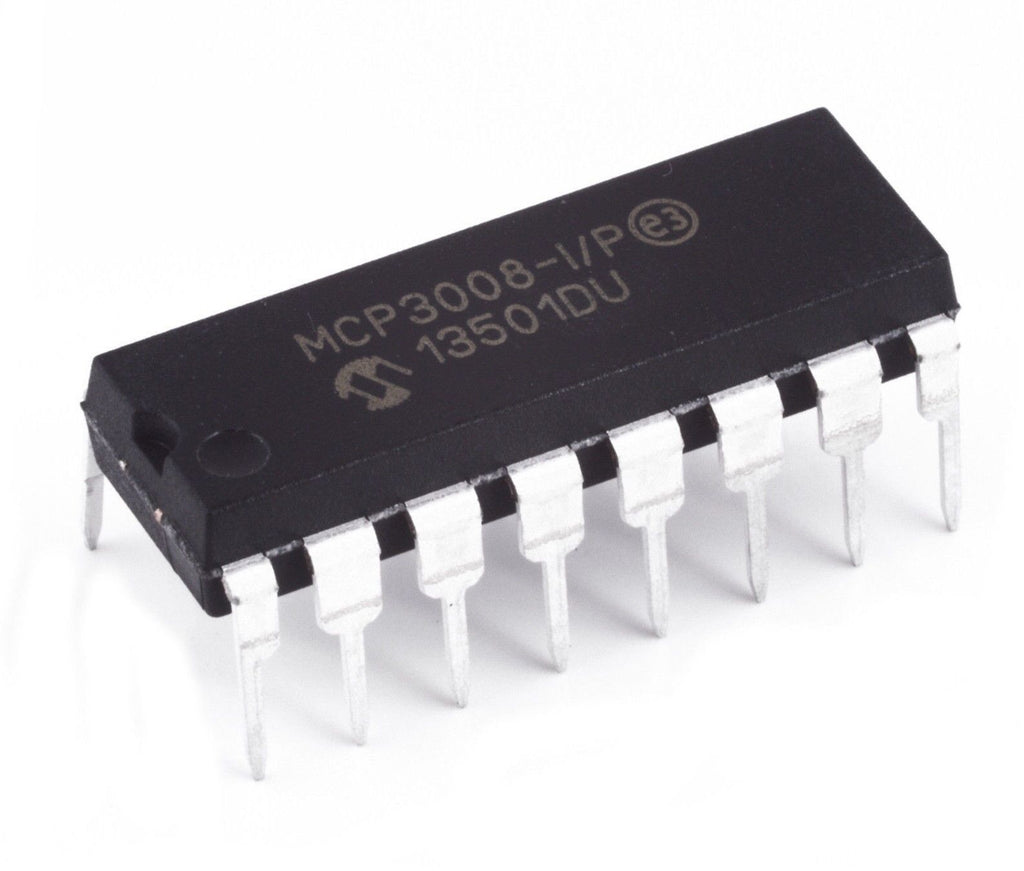

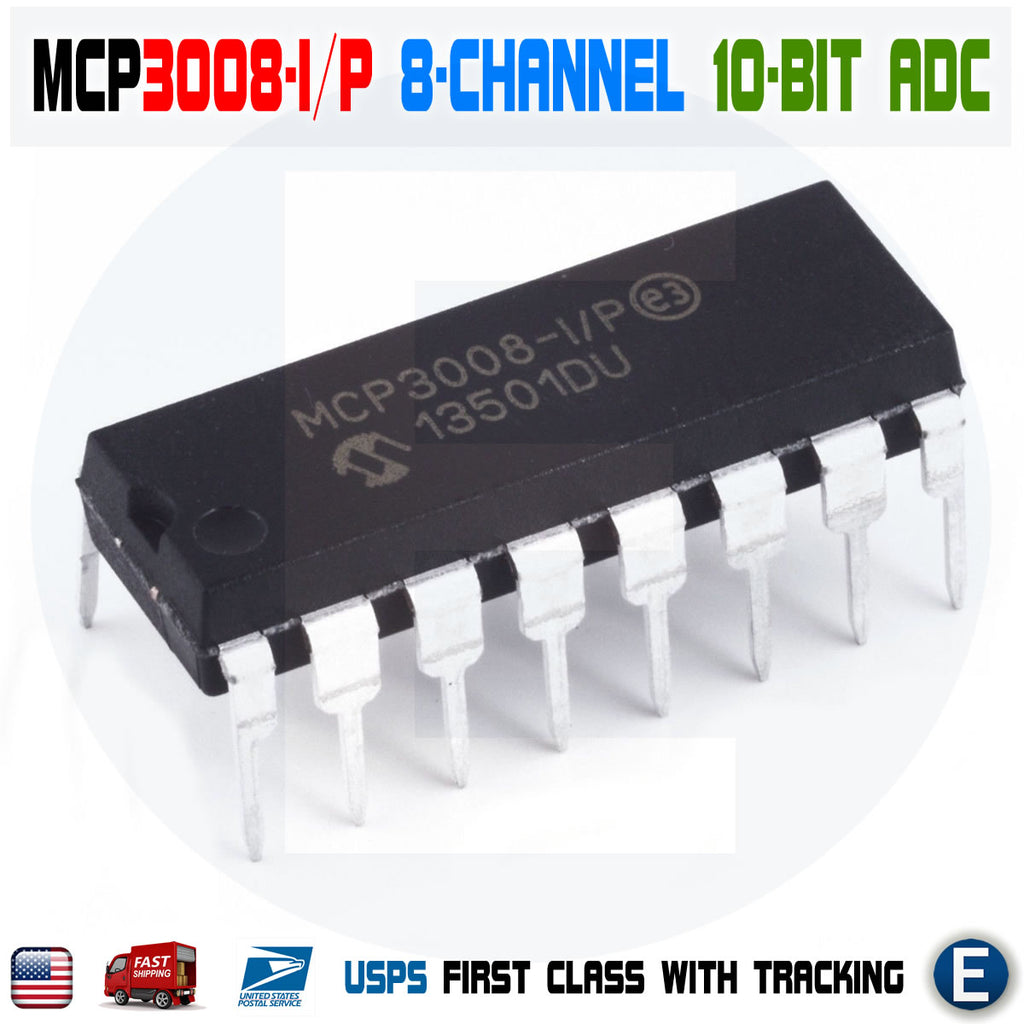

MCP3008-I/P MCP3008 8-Channel 10-Bit A/D Converters SPI Interface Microchip IC
In stock
Business & Industrial>Electrical Equipment & Supplies>Electronic Components & Semiconductors>Semiconductors & Actives>Integrated Circuits (ICs)>Interface ICs
MCP3008-I-P-Microchip-IC
Description:
The MCP3008-I/P 10-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications. The ...
$6.63
customers are viewing this product
Description:
The MCP3008-I/P 10-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications. The MCP3008 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 10-bit ADC capability to be added to any PIC® microcontroller. The MCP3008-I/P features 200k samples/second, 8 input channels, low power consumption (5nA typical standby, 425u00b5A typical active), and is available in 16-pin PDIP and SOIC packages. Applications for the MCP3008 include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCs, motor control, robotics, industrial automation, smart sensors, portable instrumentation and home medical appliances.
Features:
10-bit resolution,
±1 LSB maX DNL, ±1 LSB max INL
4, 8 (MCP3008) input channels
Analog inputs programmable as single-endedor
pseudo-differential pairs
On-chip sample and hold
SPI serial interface (modes 0,0 and 1,1)
Single supply operation: 2.7V-5.5V
200ksps max.samplin grateat VDD=5V
75ksps max. samplin grateatVDD=2.7V
Low power CMOS technology
5 nA typical standby current, 2 μA max.
500μA max. active currentat 5V
Industrial temp range:-40°Cto+85°C
Package Included:
1 x MCP3008-I/P MCP3008 8-Channel 10-Bit A/D Converters SPI Interface Microchip IC
