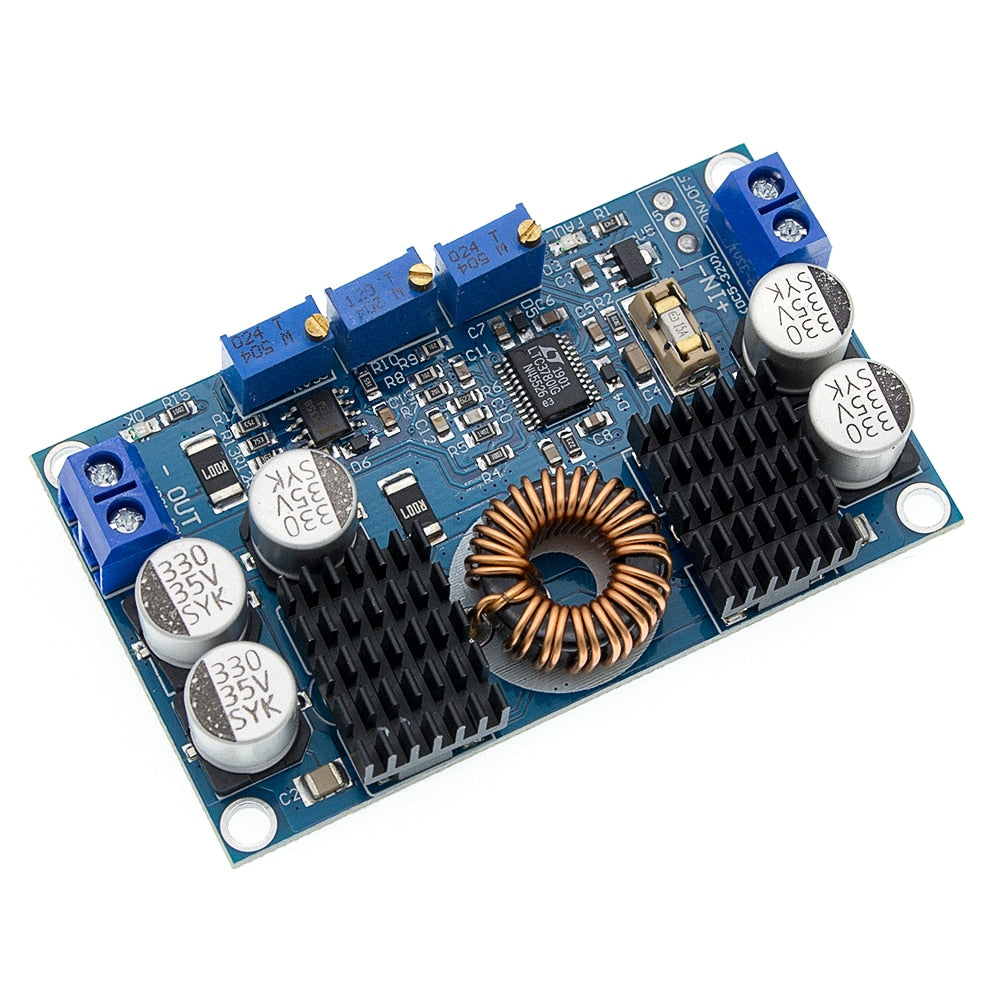

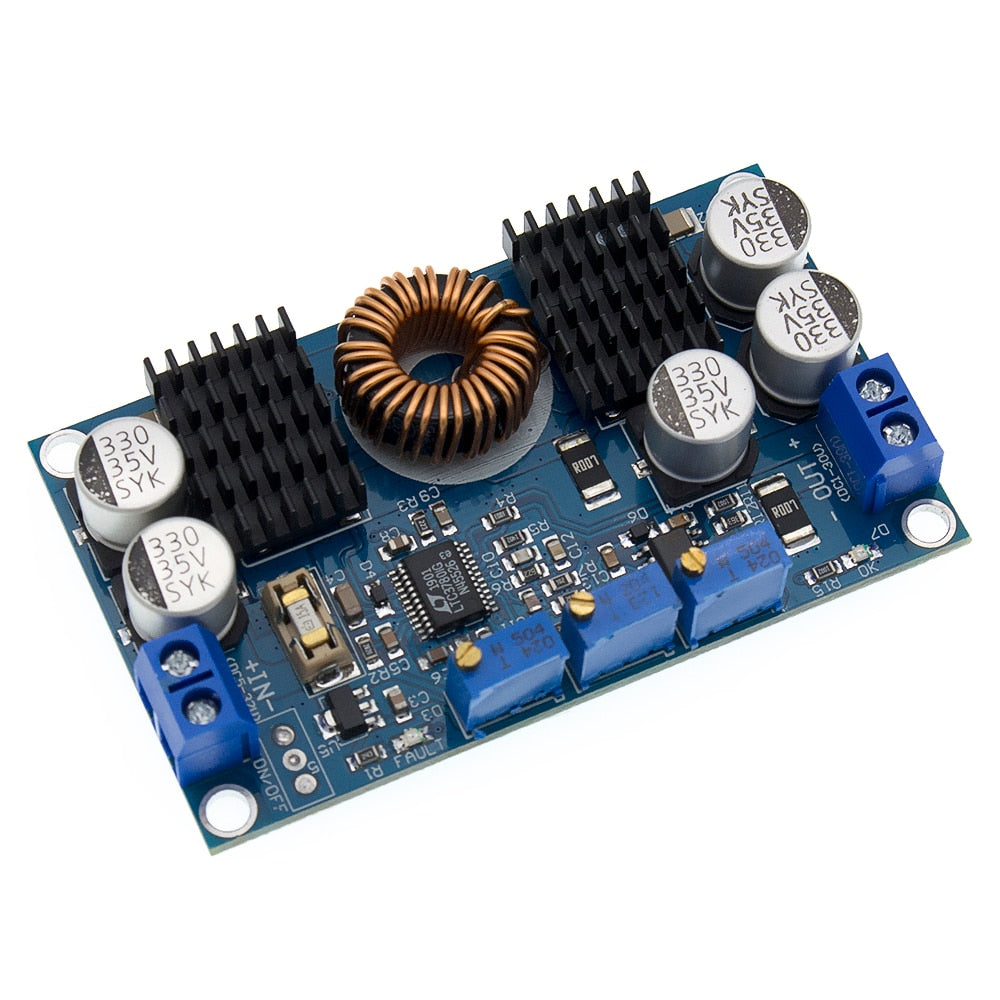

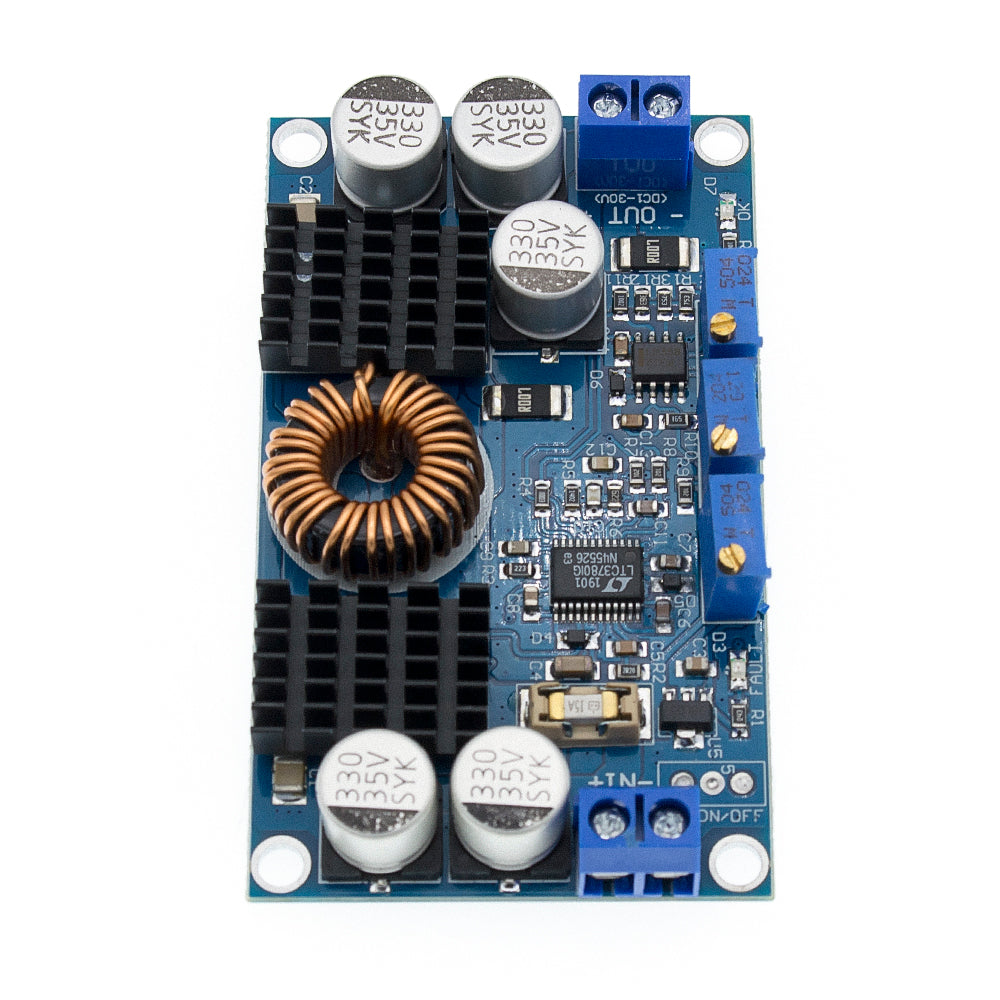

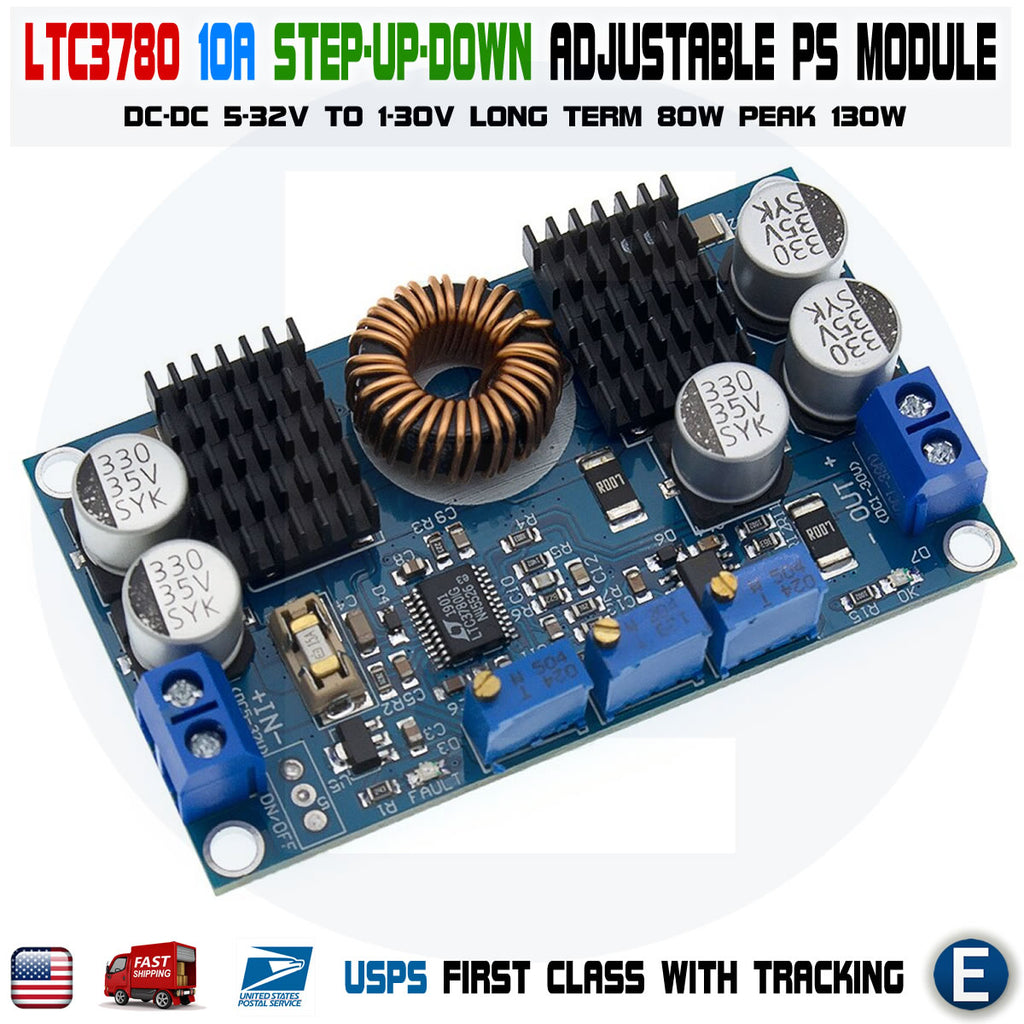

LTC3780 DC 5V-32V to 1V-30V Automatic Step Up Set Down Constant Voltage 130W
Maintain stable output voltage and limit the current over a wide range of input voltages. Great for general voltage conversion, battery charging, solar, LEDs, automotive electronics, battery conver...
$16.63
customers are viewing this product
Maintain stable output voltage and limit the current over a wide range of input voltages. Great for general voltage conversion, battery charging, solar, LEDs, automotive electronics, battery conversions, micro-controllers, and electronic projects
Synchronous rectification provides the most efficient power conversion available, up to 98%! We tested the following conversion efficiencies: 24V->12V1A: 98%, 12V->16V1.5A: 85.7%, 8V->16V: 76.7%. The buck (step-down) efficiency is phenomenal, the converter operates with a low thermal load allowing stable operation at higher current while maintaining a small physical size
Ideal for running electronics off of a battery. The high efficiency maximizes battery life. Buck/boost capability allows devices to run across the full discharge curve of the battery. Under-voltage protection shuts off the device when the battery is depleted to prevent damage to lithium and lead-acid batteries
Input Voltage: 5-32V DC, Output Voltage: 1-30V DC, Max Load: 130W/10A Peak, 80W/7A Sustained (whichever is lower, amps or watts). The maximum sustained load varies with the input and output voltages, and the difference between them, for long term stable operation do not allow the operating temperature to exceed 140 degrees Fahrenheit

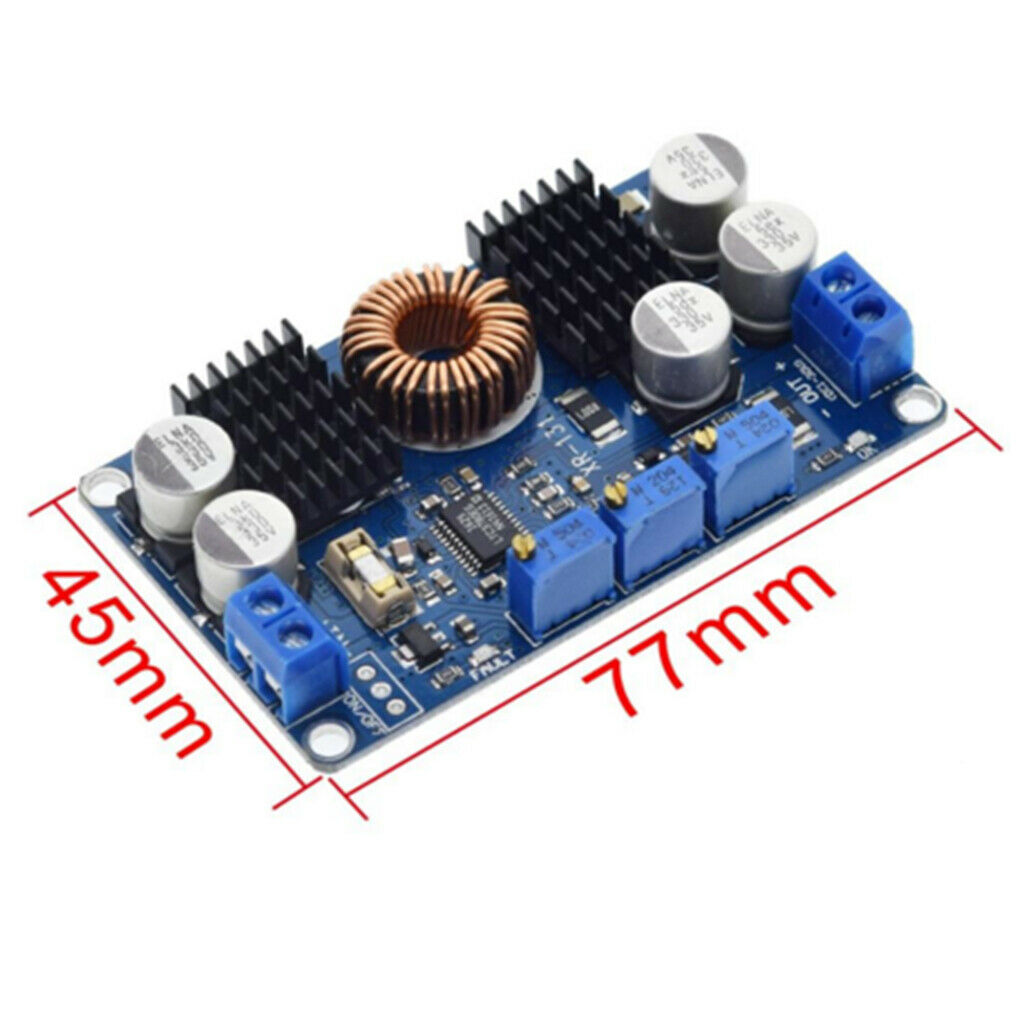

Dimensions: 77.6x46.5x15mm, Linear Technology LTC3780 IC with external MOSFETs, adjustable output voltage, output current, and input under voltage cutoff. 300KHz switching frequency
The LTC3780 is a high performance buck-boost switching regulator controller that operates from input voltages above, below or equal to the output voltage. With a wide input and output range and seamless transfers between operating modes, the LTC3780 is ideal for automotive and battery-powered systems.
Synchronous rectification technology uses a dedicated power MOSFET with very low on-state resistance to replace the rectifier diode and reduce the rectification loss. It can greatly improve the efficiency of DC / DC converter as there are no diode barrier voltage losses. Synchronous rectification technology greatly reduces the switching power supply losses, thereby enhancing the conversion efficiency and reducing waste heat.
Features:
-The input uses replaceable fuse to protect power supply and equipment
-The whole electrolysis use patch, low resistance, high frequency capacitor to make the ripple down to the freezing point
-Constant voltage, constant current, under voltage protection (MPPT is more suitable for solar charging)
-The output has error indicating lamp,it will light when the output voltage drift too serious short circuit and other fault
-Inductor use iron silicon aluminum, 0.8 double winding, generate less heat.
Package Included:
1 x LTC3780 DC 5V-32V to 1V-30V Automatic Step Up Set Down Constant Voltage 130W
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
