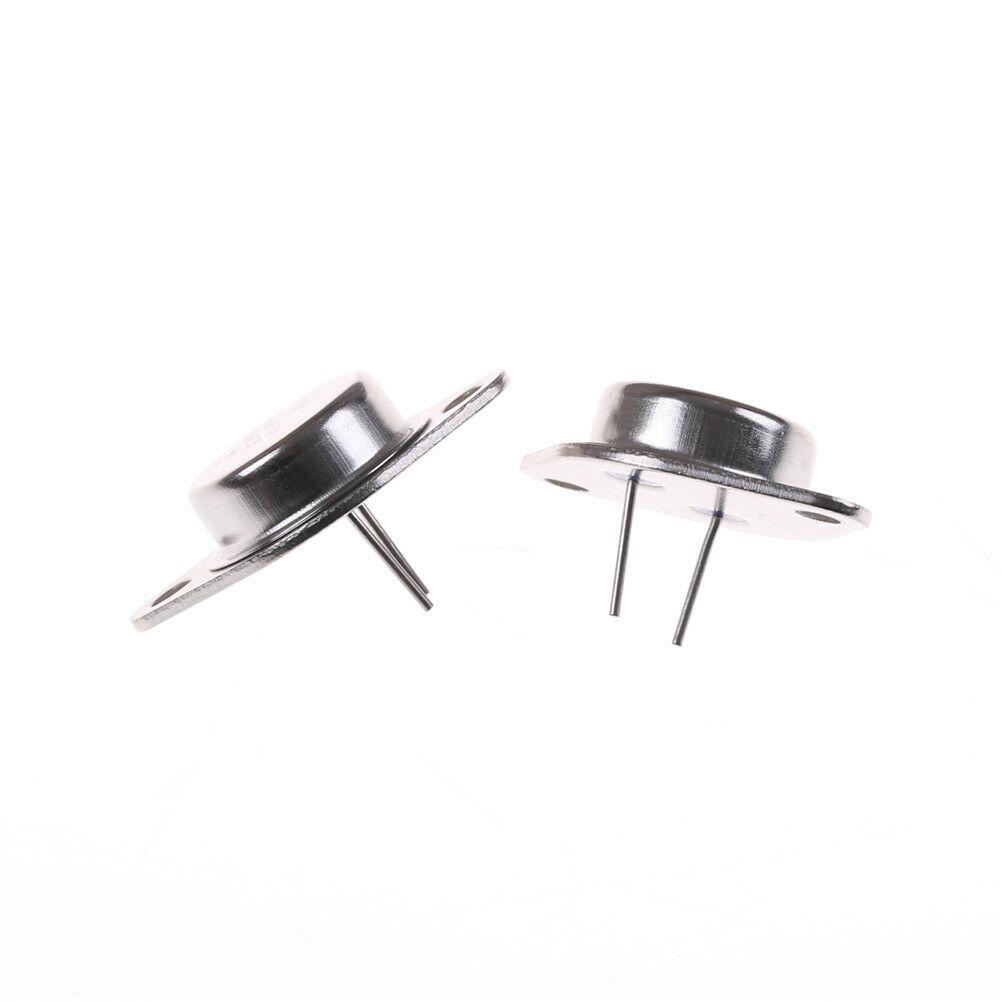

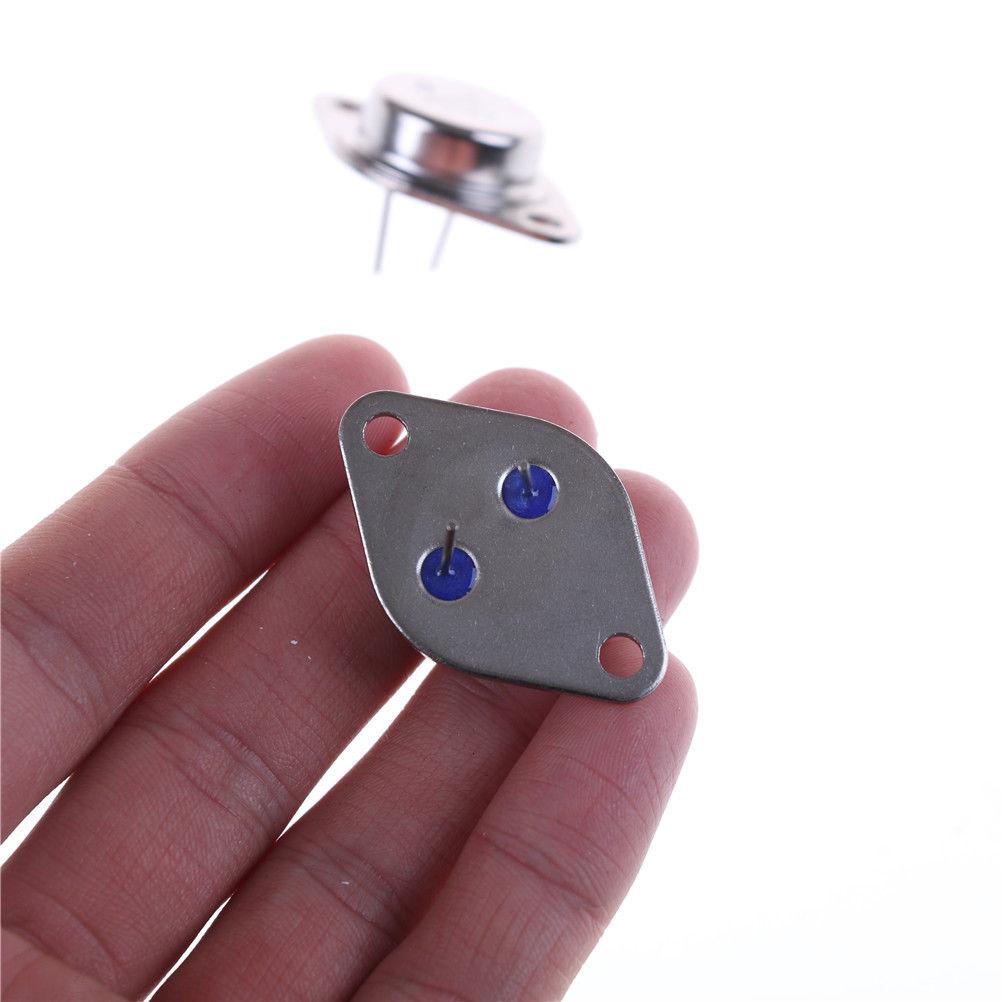

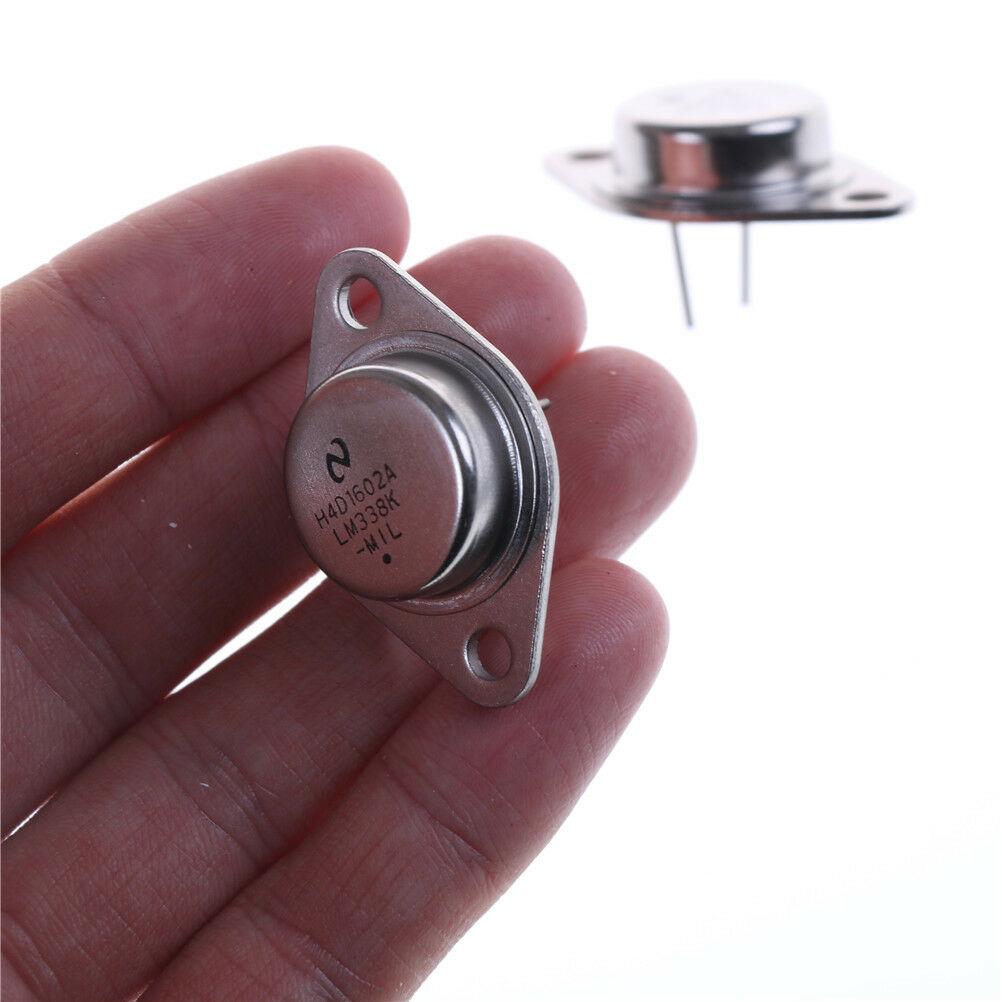

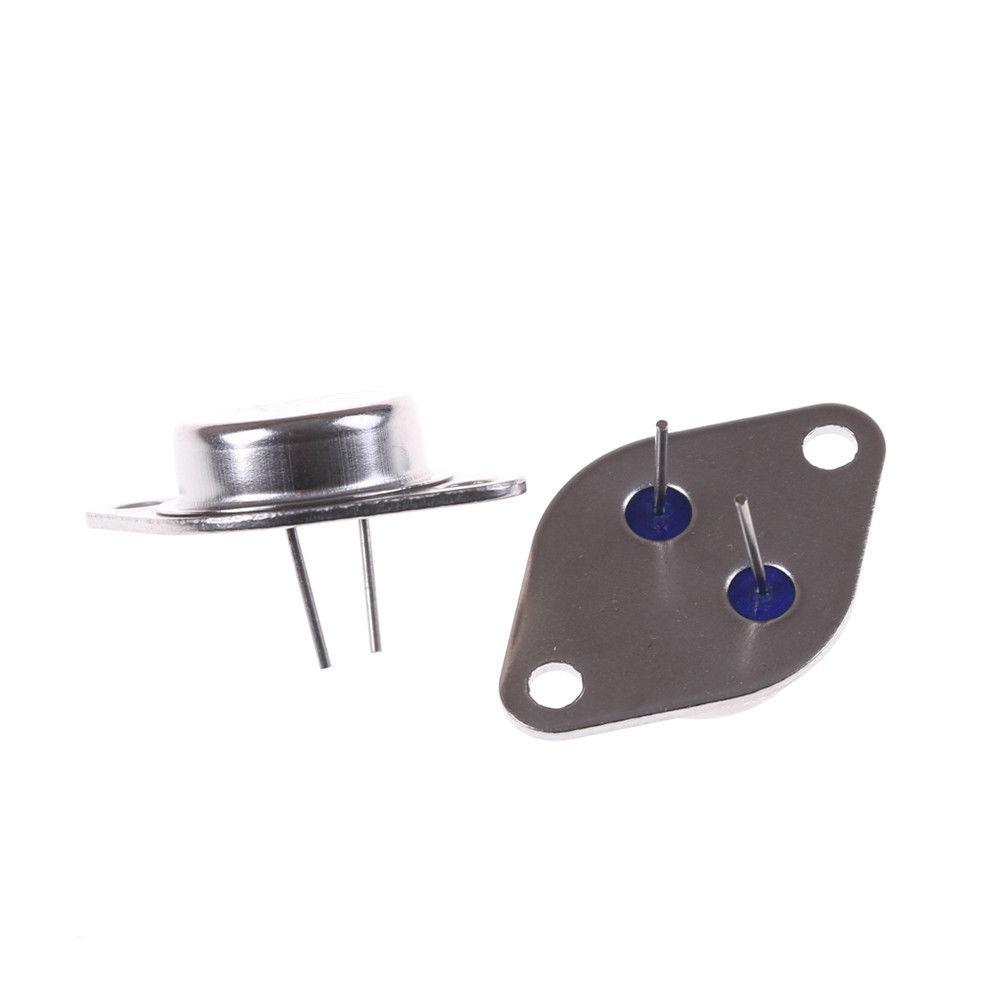

LM338K LM338 1.2-30V Adjustable Voltage Regulator 5A TO-3

Out of stock
Features■ Guaranteed 7 A peak output current■ Guaranteed 5 A output current■ Adjustable output down to 1.2 V■ Line regulation typically 0.005 %/V■ Load regulation typically 0.1 %■ Guaranteed therma...
  customers are viewing this product

■ Guaranteed 7 A peak output current
■ Guaranteed 5 A output current
■ Adjustable output down to 1.2 V
■ Line regulation typically 0.005 %/V
■ Load regulation typically 0.1 %
■ Guaranteed thermal regulation
■ Current limit constant with temperature
■ Standard 3-lead transistor package

The LM138, LM238, LM338 are adjustable 3-terminal positive voltage regulators capable of supplying in excess of 5 A over a 1.2 V to 32 V output range. They are exceptionally easy to use and require only 2 resistors to set the output
voltage. Careful circuit design has resulted in outstanding load and line regulation comparable to many commercial power supplies. The LM138
family is supplied in a standard 3-lead transistor package.
A unique feature of the LM138 family is time-dependent current limiting. The current limit circuitry allows peak currents of up to 12 A to be drawn
from the regulator for short periods of time. This allows the LM138 to be used with heavy transient loads and speeds start-up under full-load conditions. Under sustained loading conditions, the current limit decreases to a safe value
protecting the regulator. Also included on the chip are thermal overload protection and safe area protection for the power transistor.

Package Included:
1 x LM338K LM338 Adjustable Voltage Regulator 5A
