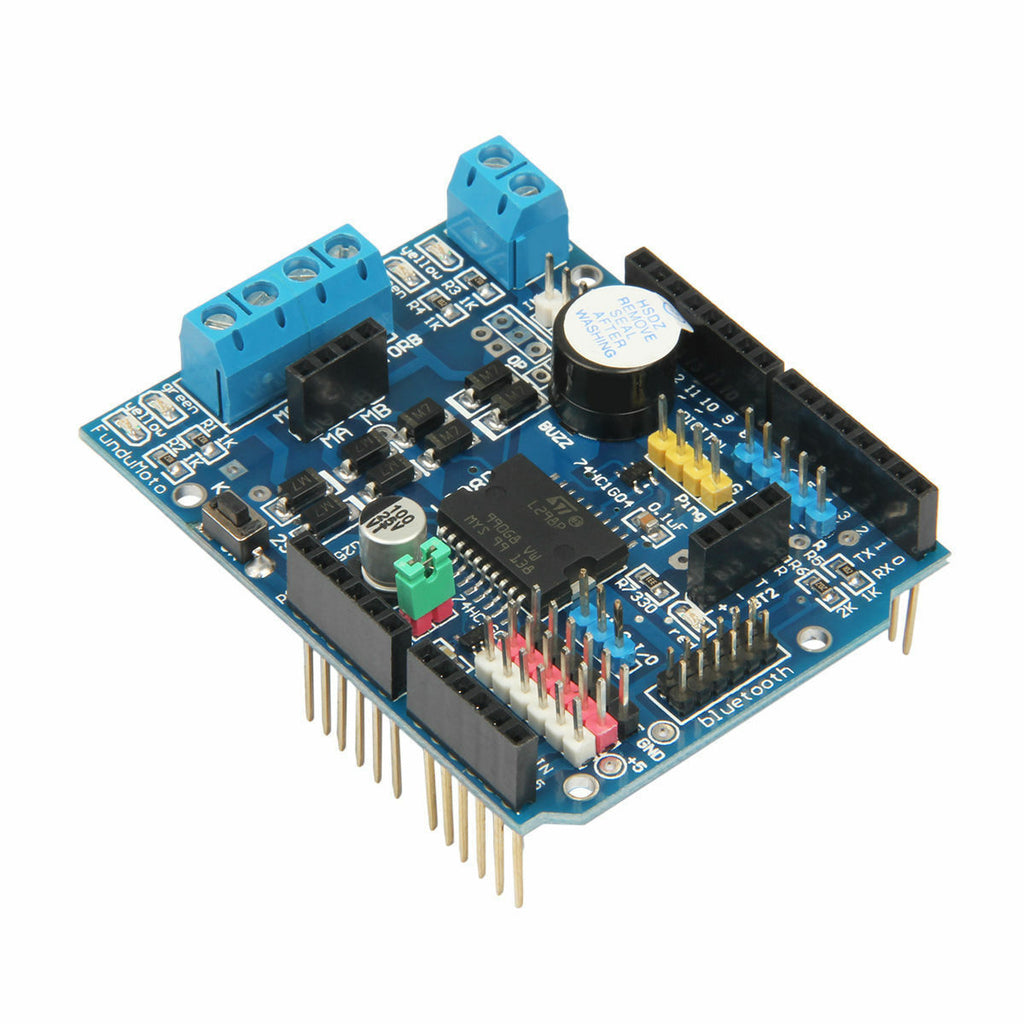

L298P Motor Drive Shield Expansion Board PWM Speed Controller H-bridge Arduino

Out of stock
Business & Industrial:Automation, Motors & Drives:Drives & Starters:Drives & Motor Controls:Stepper Controls & Drives
Unbranded
A-03-02-02
Description:   L298P Shield DC motor drives using LGS’s outstanding high-power motor driver chip dedicated L298P, can directly drive two DC motors, drive current up to 2A, motor output using e...
$15.63
  customers are viewing this product
Description:

L298P Shield DC motor drives using LGS’s outstanding high-power motor driver chip
dedicated L298P, can directly drive two DC motors, drive current up to 2A, motor
output using eight-speed Schottky diodes as protection. Stack design can be directly
plugged into the Arduino, easier to use!

Technical Specifications:

Logical part of the input voltage VD: 5V- driven part of the input voltage VS: VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V input
Logical part of the work current Iss: <36mA – driven part of the operating current Io: <2A

Maximum power dissipation: 25W (T = 75 Celsius)
Control signal input level: High 2.3V Working temperature: -25 + 130 Celsius
Hardware interface: 5.0mm pitch terminal
Belt clip and can be controlled via front row access signal
Drive Type: Dual power H-bridge driver
Pin occupancy: D4 ~ D7 direct drive motor
Supports PWM / PLL mode motor speed control
Size: 68mm * 53mm

Package Included:
1 x L298P Motor Drive Shield Expansion Board
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
