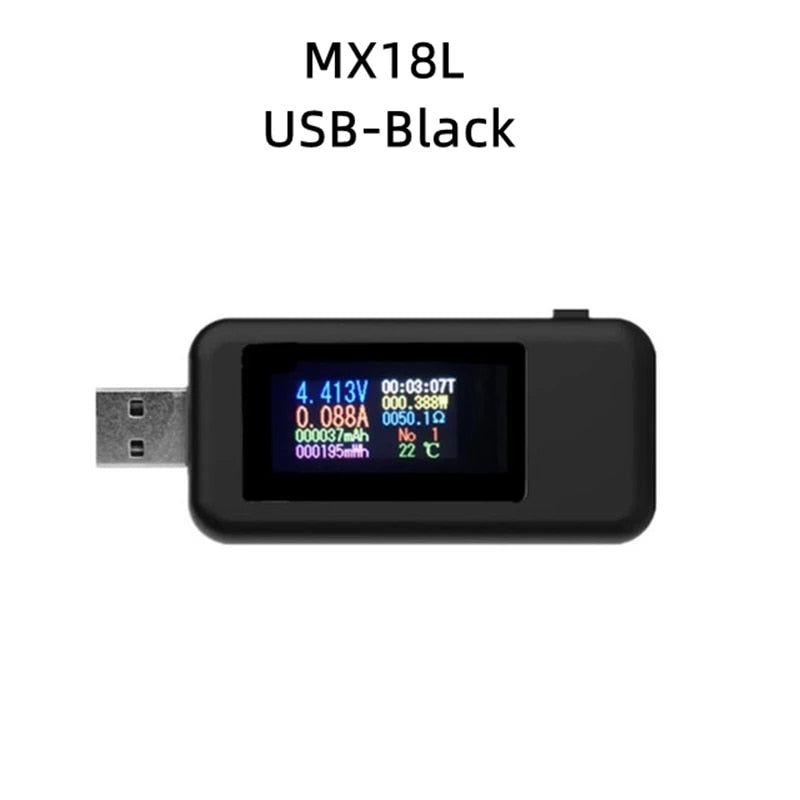

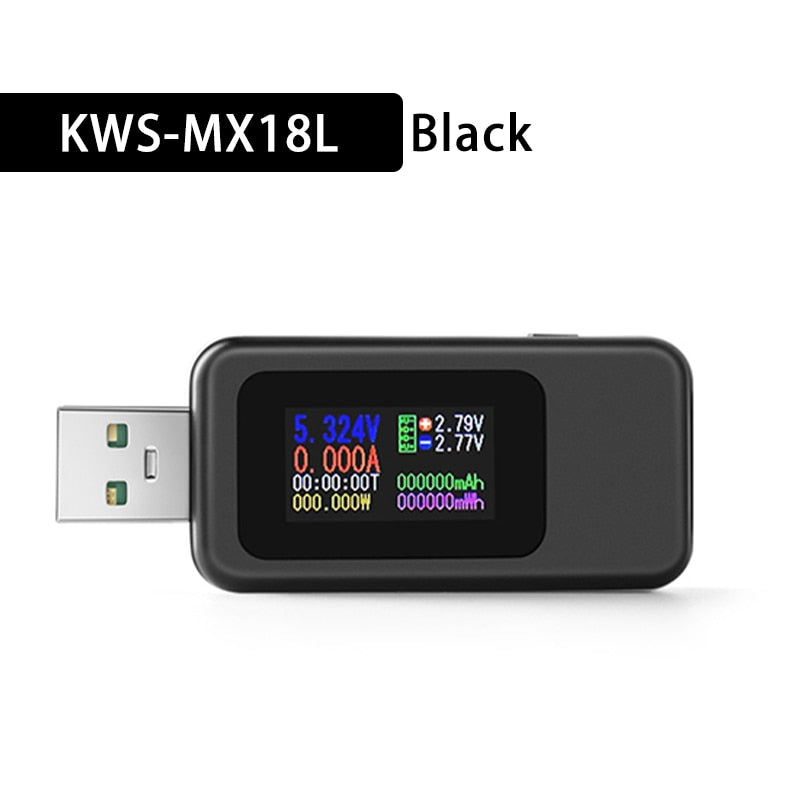

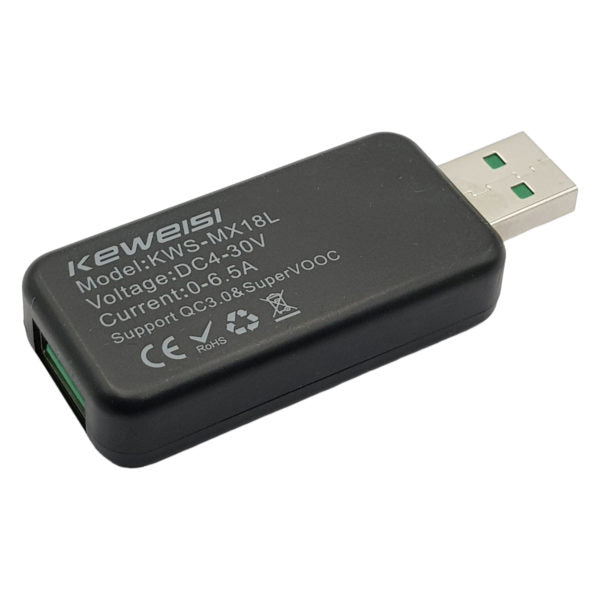

KWS-MX18L 10 in 1 Digital USB Tester Current Voltage Meter Charger Voltmeter
In stock
Measurement & Inspection Test Meters & Detectors Other Test Meters & Detectors
C-03-11-03
This USB intelligent tester can measure voltage, current, power, capacity, temperature, and timing in real time, more secure and reliable.
Has power-off storage function, which can store capacity a...
$10.98
customers are viewing this product
This USB intelligent tester can measure voltage, current, power, capacity, temperature, and timing in real time, more secure and reliable.

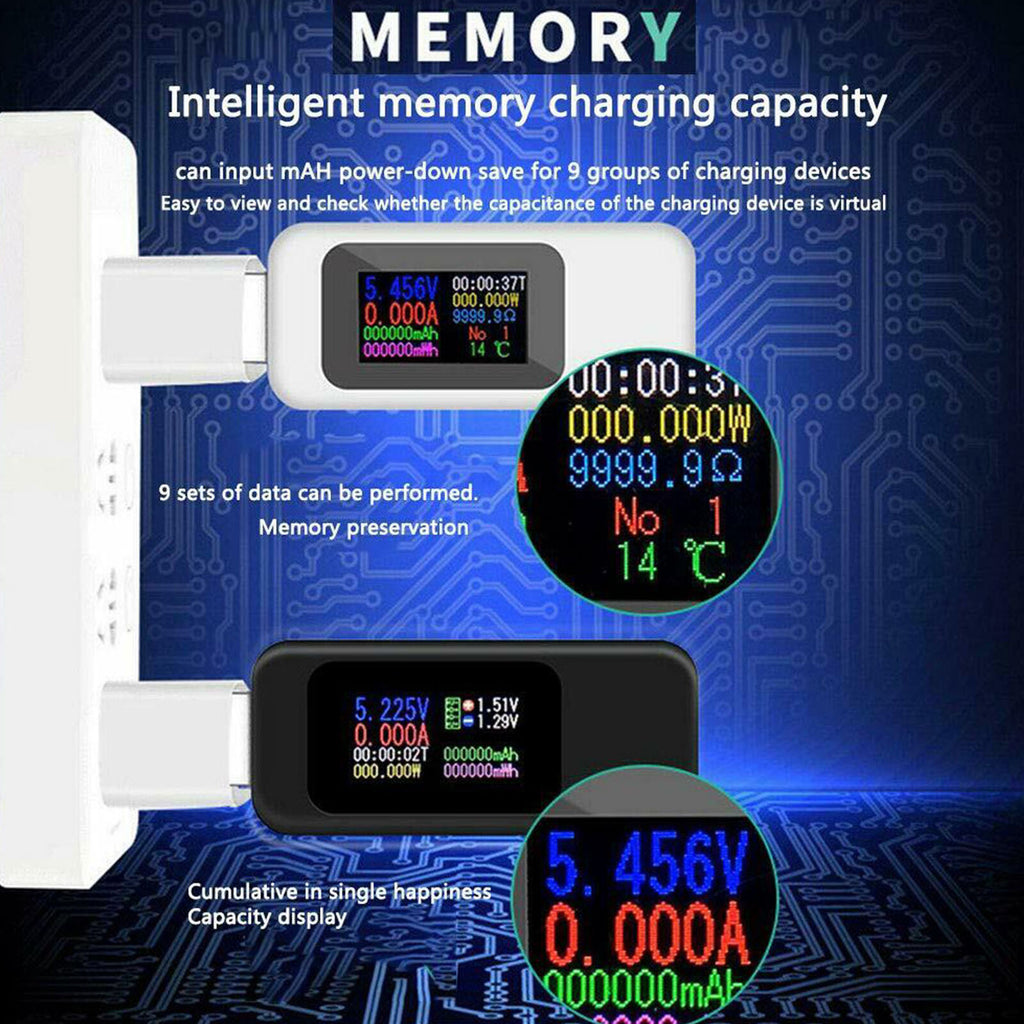

Has power-off storage function, which can store capacity and energy data when the mobile power is cut off, convenient for subsequent viewing and convenient for capacity energy measurement of mobile power.

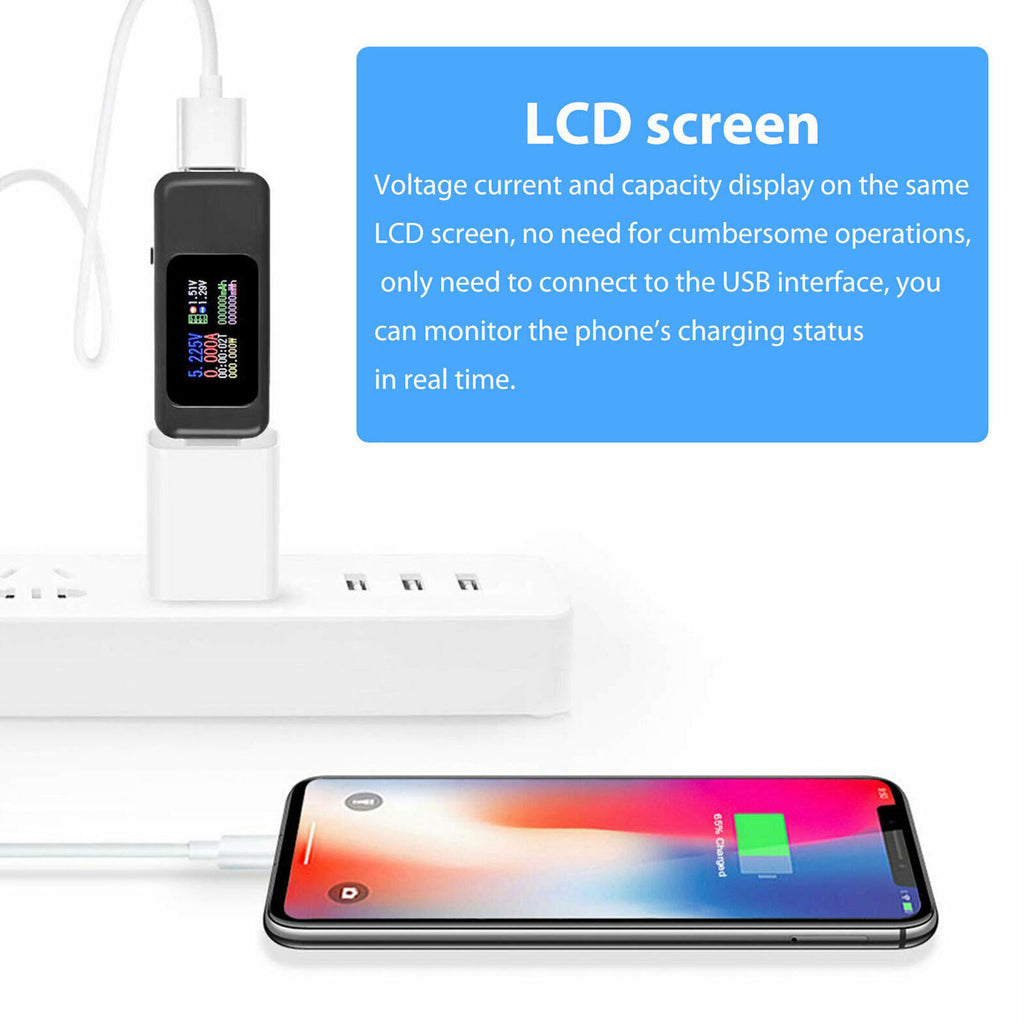

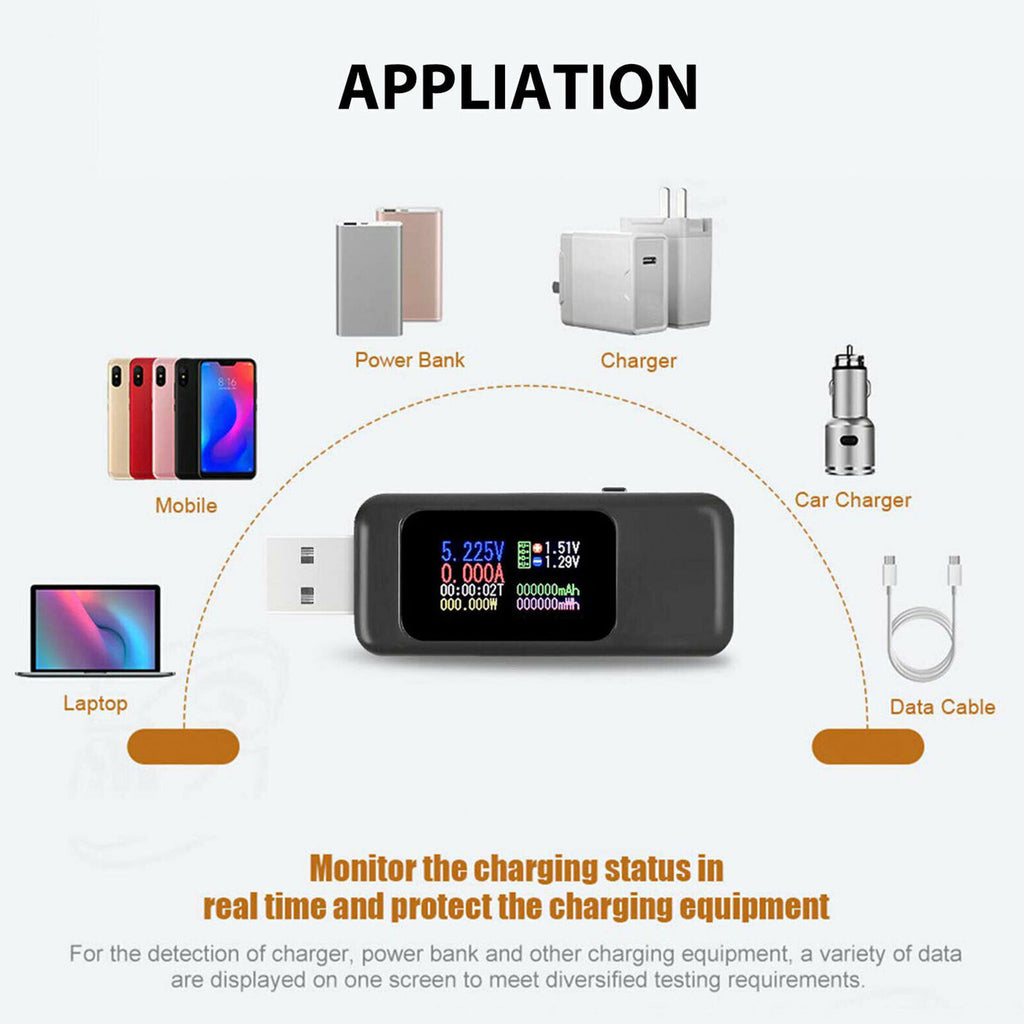

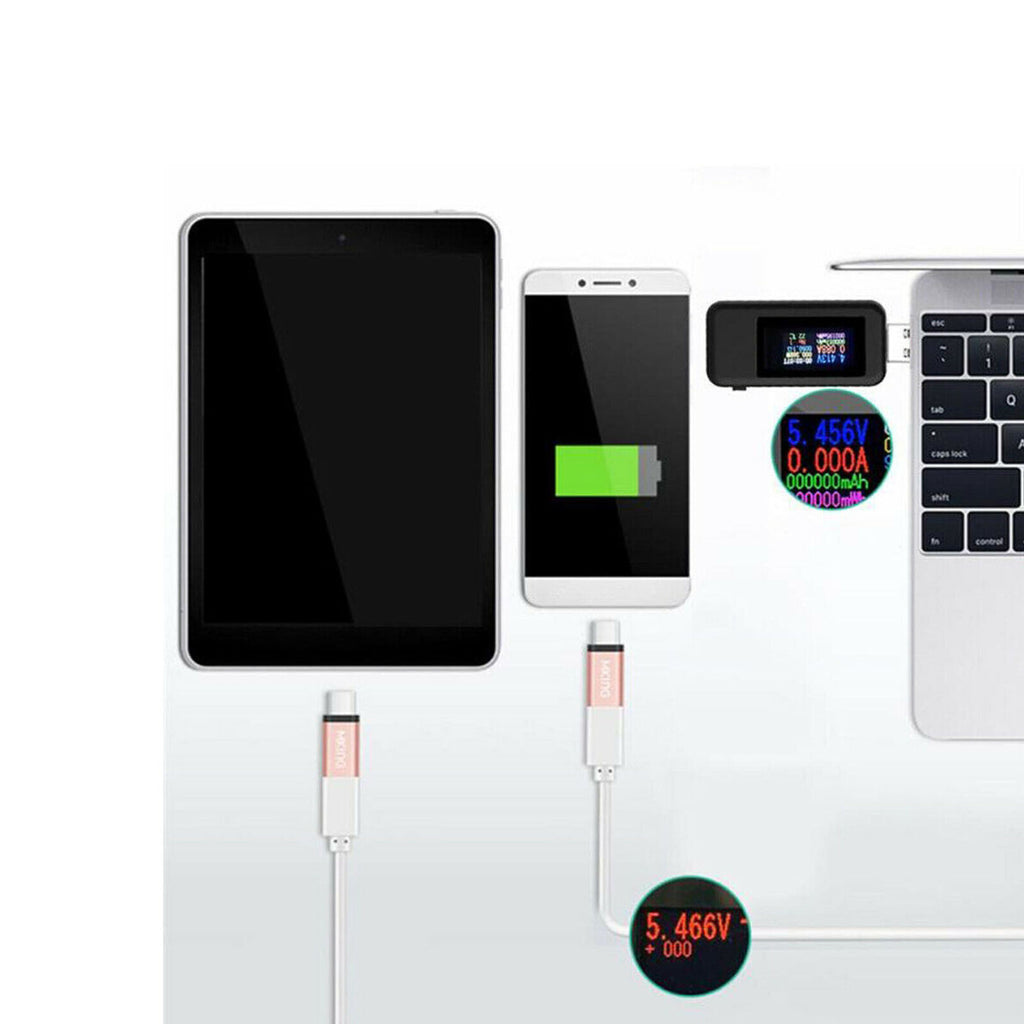

The USB tester is widely used for cell phone chargers, power banks, etc.
This portable USB tester is easy to carry and enables you to put it in your bag or your pocket whenever you go, along with the symmetrical and reversible connector for your simply operation.
Specification:
Color: Black
Material: ABS
Current: 0-5A
Voltage: 4-30V
Timing: 0-99 hour
Power: 0-150W
Capacity: 0-999999mAh
Internal temperature: 0-80 ℃
Group: 1-9 group
mAh: 0-999999mAh
mWh: 0-999999mWh
Charging Resistance: 0-999.9Ω
D positive Voltage: 0-10V
D negative Voltage: 0-10V

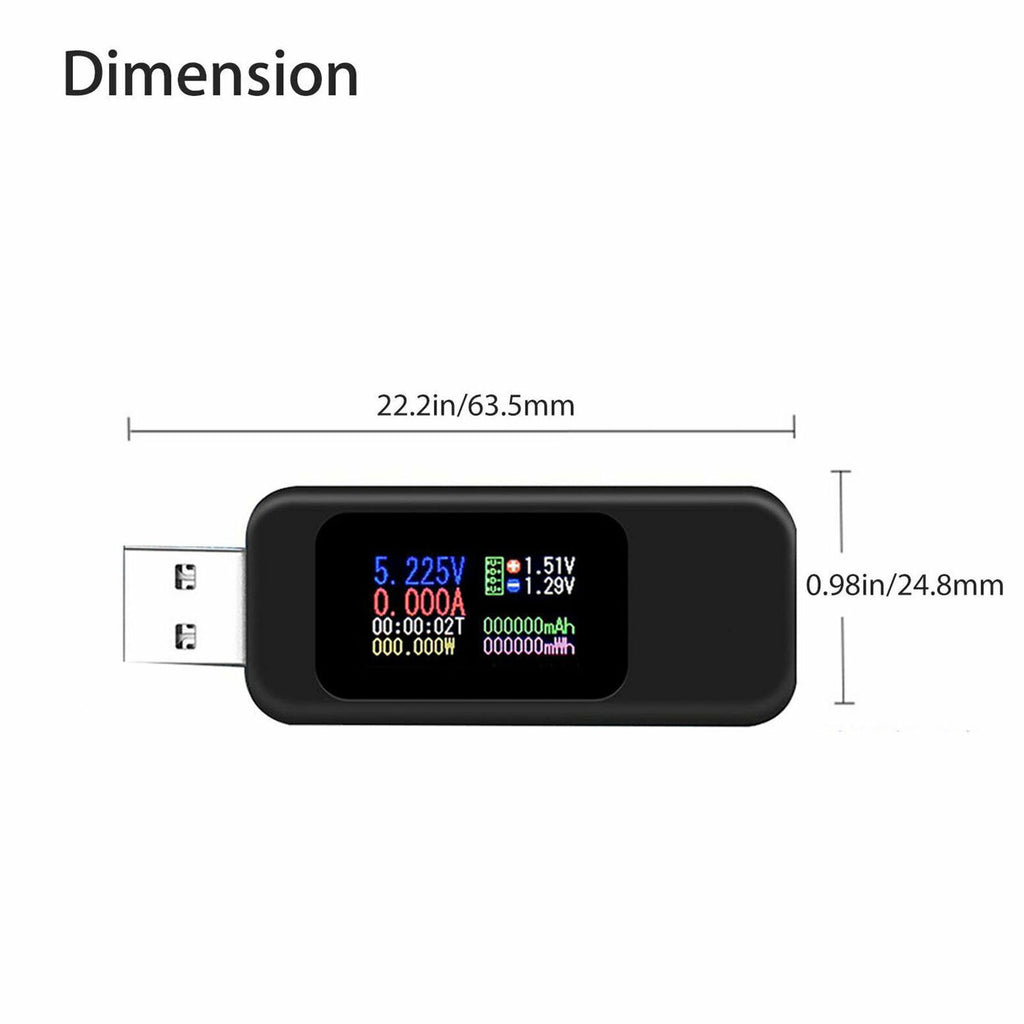

Size: 56.6*24.7*11.2mm/2.23*0.97*0.44''
Instructions:

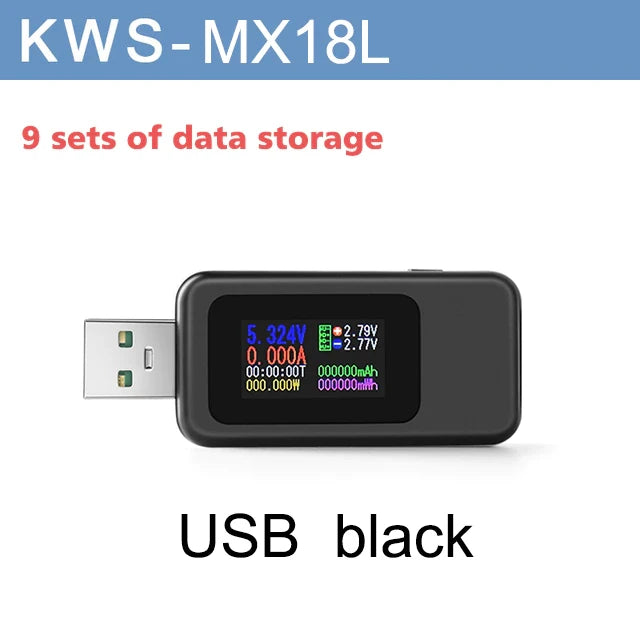

1: Click the button to view the 1-9 group charging data.
2: Press the button for 3s and take out a set of charge data.
3: Double-click the button, rotate the screen to view.
4. Press the button long time, insert the USB interface to enter voltage calibration:
For example:
(1) If display (5.526V Right indicator arrow) and then double-click the button quickly.
(2) If display (5.528V Up indicator arrow), can click the button to increase the display voltage.
(3) Double-click the button quickly, if display (5.528V Down indicator arrow), can click the button to lower the display voltage.
(4) Then quickly double-click the button again, if display (5.526VRight indicator arrow), and then click the button once again, the screen will display the current calibration!
The system automatically performs the current calibration and automatically returns to the function home page after the calibration is complete.

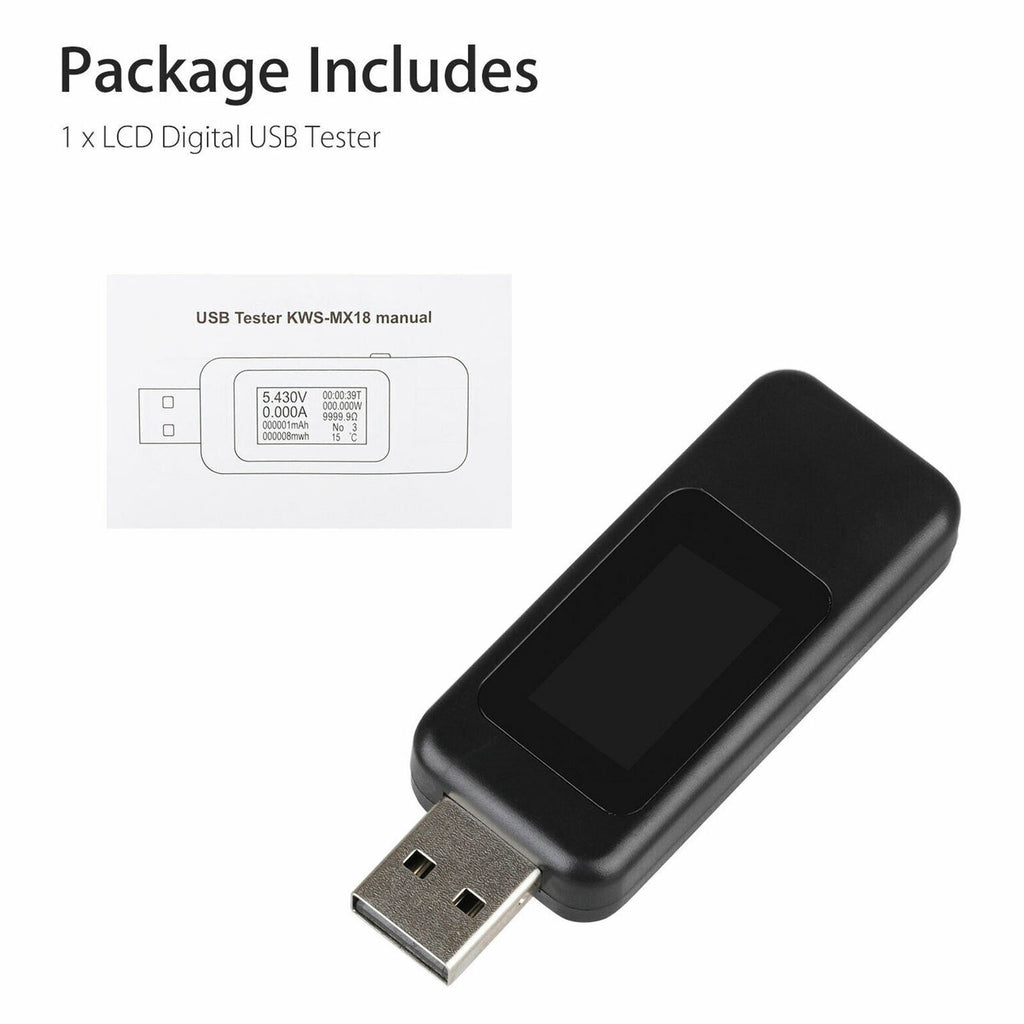

Package Included:
1 x KWS-MX18L 10 in 1 Digital USB Tester Current Voltage Meter Charger Voltmeter
We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
