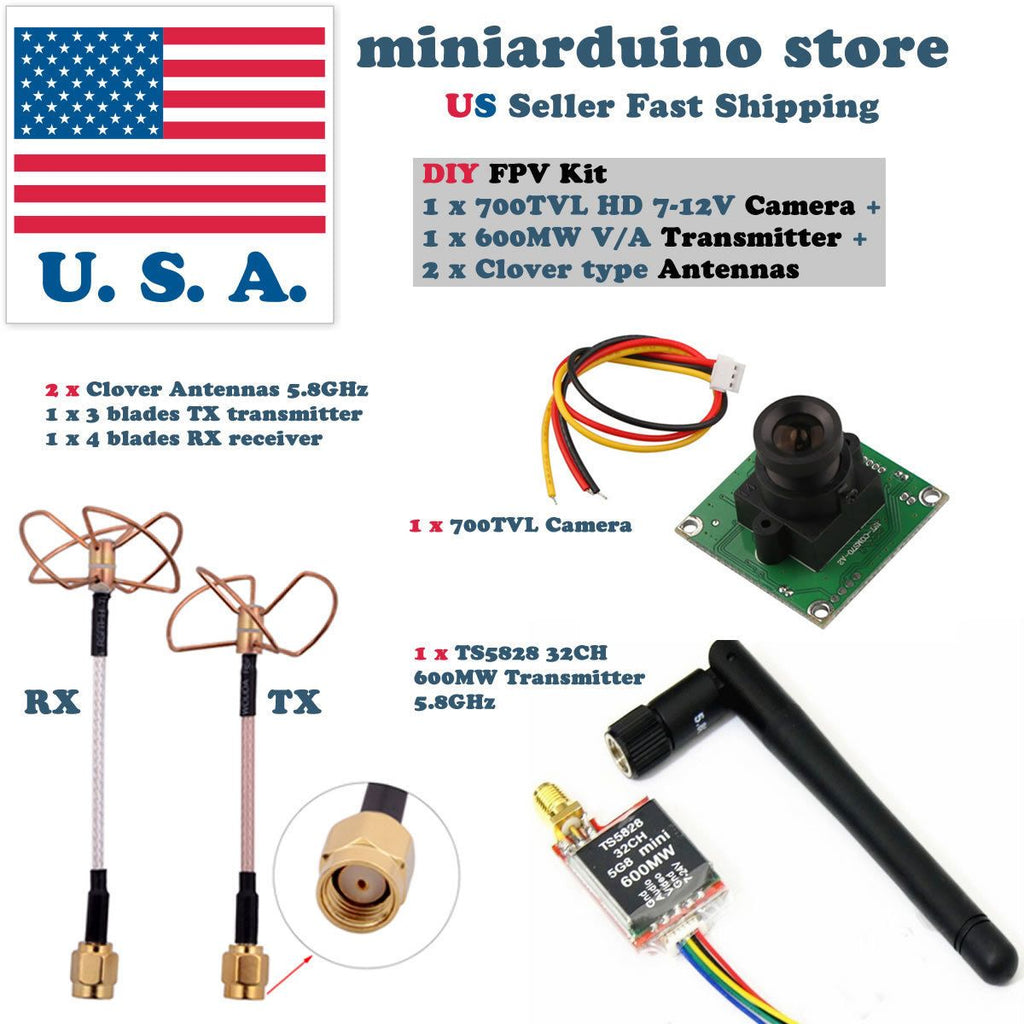

FPV Camera Kit 700TVL TS5828 600mw 5.8ghz 32ch AV Transmitter Clover Antenna

Out of stock
Toys & Hobbies:Radio Control & Control Line:RC Model Vehicle Parts & Accs:Other RC Parts & Accs
Unbranded
1 x 5.8GHz 600mW 32 Channels Mini Wireless 2dbm A/V Transmitter Video TX Module with cable & 1 x antenna Features: FPV 5.8GHz 600mW 32 Channels Mini Wireless A/V Transmitting (TX) Module TS58...
$42.00
  customers are viewing this product

1 x 5.8GHz 600mW 32 Channels Mini Wireless 2dbm A/V Transmitter Video TX Module with cable & 1 x antenna

Features:

FPV 5.8GHz 600mW 32 Channels Mini Wireless A/V Transmitting (TX) Module TS5828 RP-SMA for 5.8g receiver
The TS5828 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video.
The TS5828 is transmitting a full range of 32 channels.
32 channels: Cover A, B, E bands and F bands

Frequency range:
FR1 5865,5845,5825,5805,5785,5765,5745,5725
FR2 5733,5752,5771,5790,5809,5828,5847,5866
FR3 5707,5685,5665,5645,5885,5905,5925,5945
FR4 5740,5760,5780,5800,5820,5840,5860,5880

Video format supported: NTSC/PAL
Antenna connection: RP-SMA – female
Power input: 7-24V (3S Lipoly suggested)
Transmitting power: 600mW
Antenna gain: 2dbm
Working current: 310mA at 12V
Video bandwidth: 8Mhz
Audio bandwidth : 6.5Mhz
Color: red & black
Dimension: 23x 25x 7.7mm(excluding antenna)
Net Weight: 17g

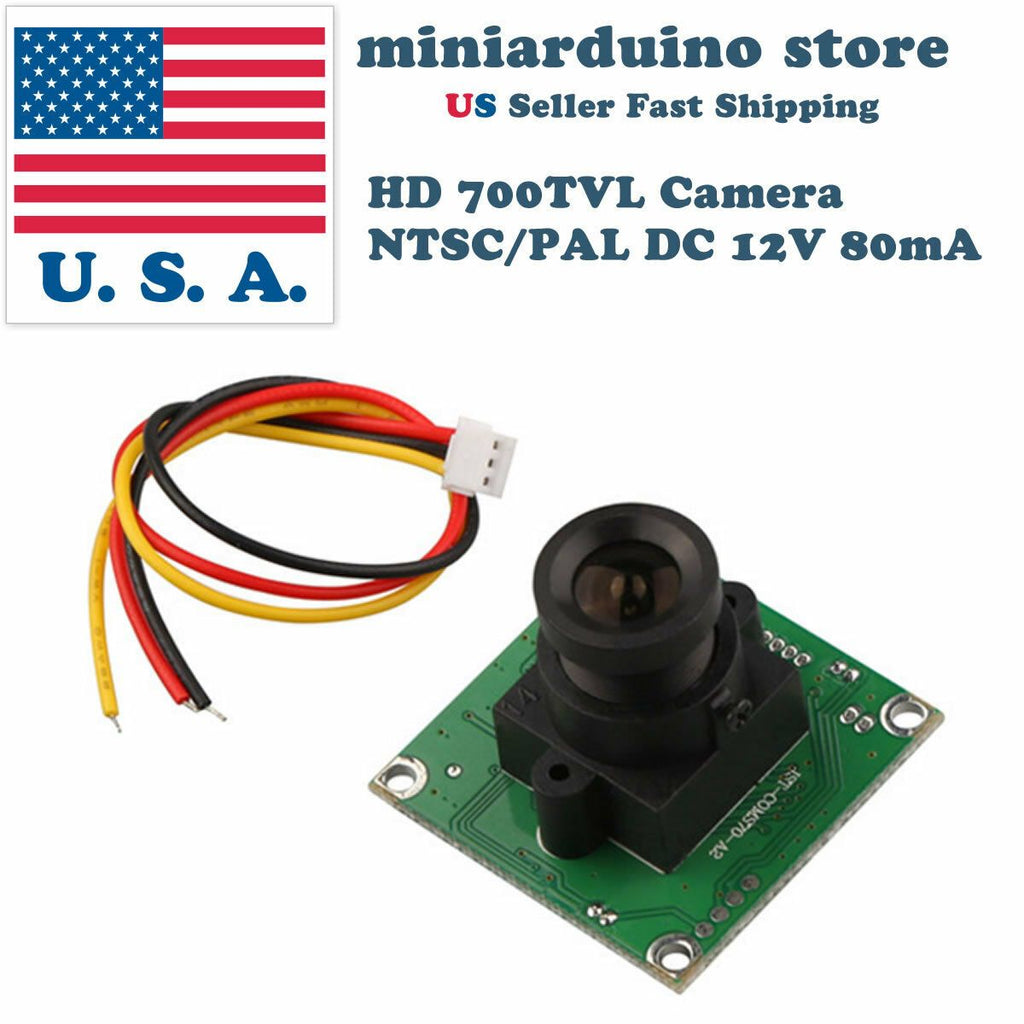

1 x 700TVL CMOS Camera with cable

Specifications:
– Sensor Type: 1/4″ CMOS
– Resolution (Horizontal Center): 700TVL
– Total Pixels: PAL: 1020H x 596V (61 Million Pixels), NTSC: 1020H x 508V (52 Million Pixels)
– Effective Pixels: PAL: 976H x 582V (57 Million Pixels), NTSC: 976H x 494V (48 Million Pixels)
– Signal System: NTSC/PAL
– Video Output: 1.0Vp-p / 75Ω BNC
– White Balance: Auto
– Exposure Mode: Electronic Exposure
– Electronic Shutter: 1/50 (1/60) – 100000 seconds
– Working Voltage: DC 12V (Wide Voltage, Work Properly at 7.5-13V)
– Operating Current: 80mA (Low Power)
– Humidity: 20%-95%
– Power Consumption: 80mA
– Dimensions: (23 x 7.7 x 25)mm (L x W x H)
– Weight: 0.34oz / 9.5g



2 x Clover antennas 1 x TX & 1 x RX (female)


FAQ:
Is it working with FatShark googles receiver?

Yes
