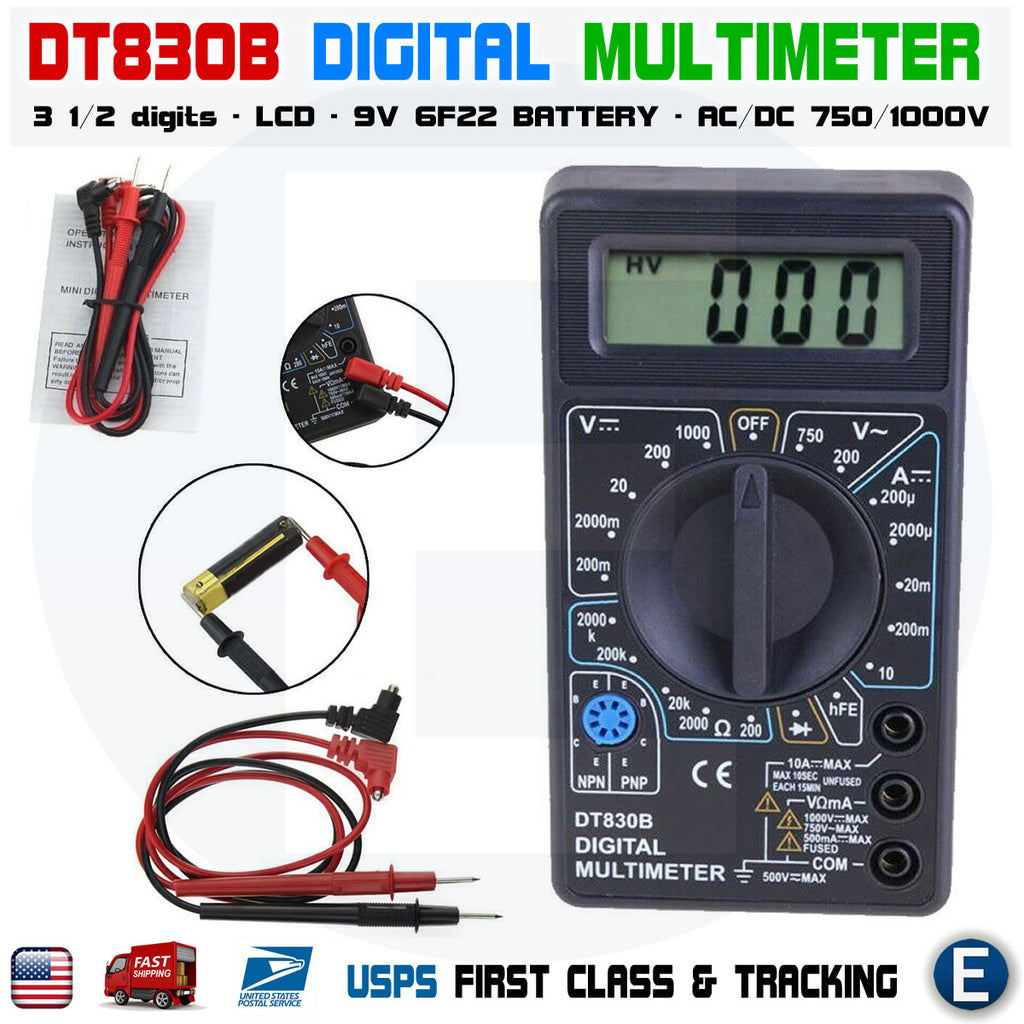

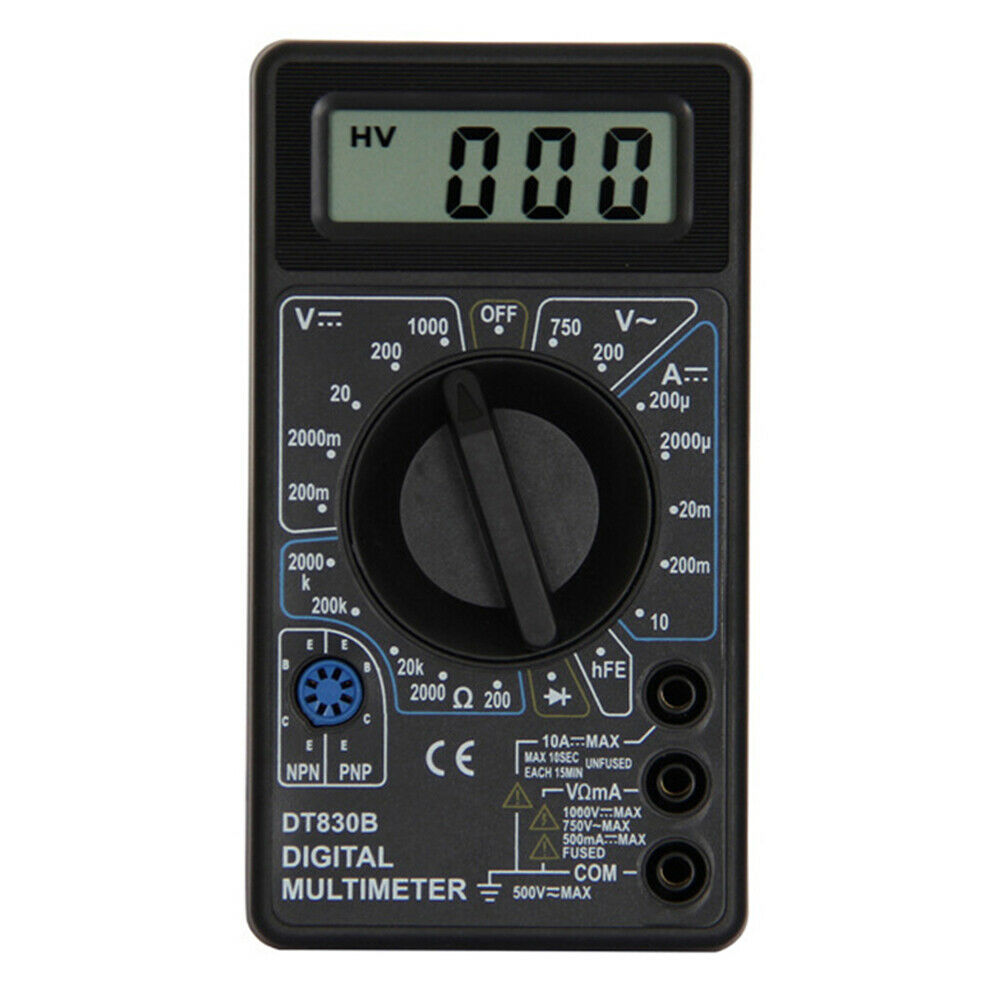

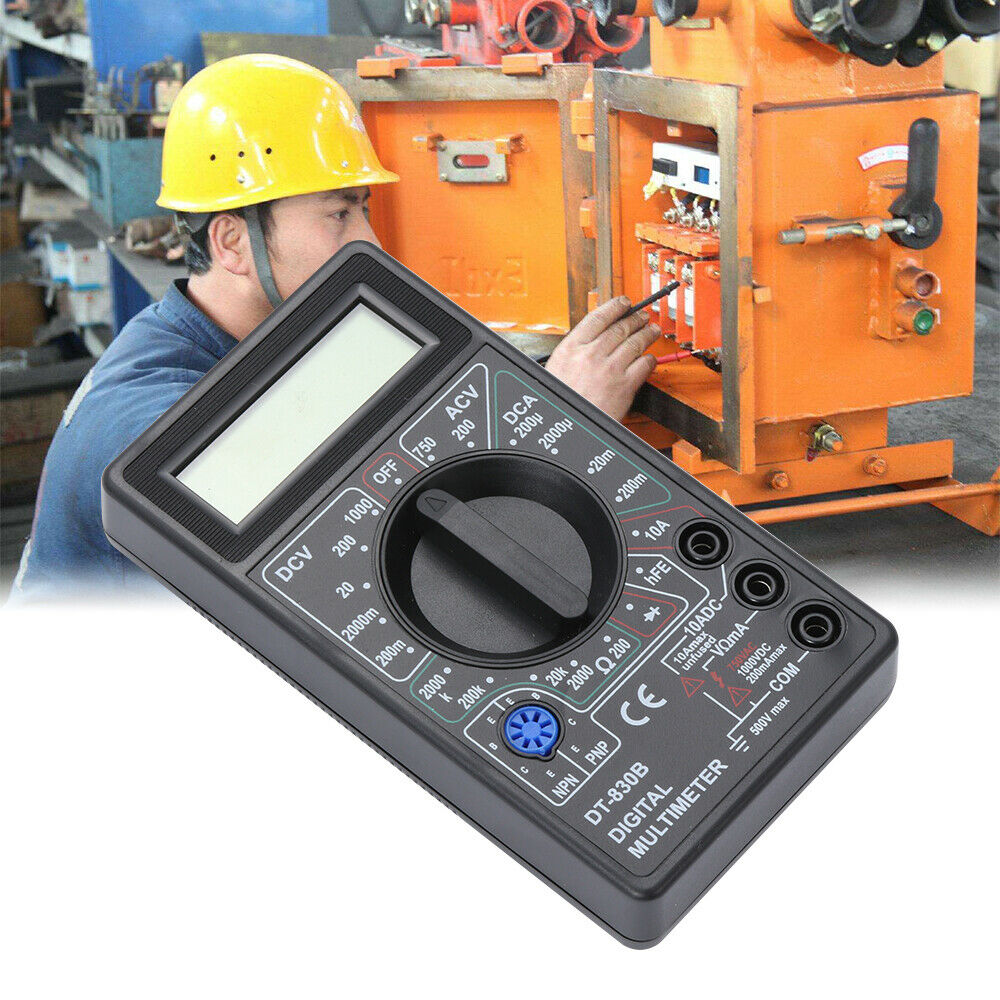

DT830B Digital Multimeter Electric Voltmeter Ammeter Ohm Mini Tester Meter

Out of stock
DT830B Digital Multimeter Electric Voltmeter Ammeter Ohm Tester AC/DC 750/1000V Amp Volt Ohm Tester Multi MeterFeatures:3 1/2 digits, 7segment, 0.5" high LCD Display.Max display: 1999, Auto polarit...
$7.23
  customers are viewing this product

DT830B Digital Multimeter Electric Voltmeter Ammeter Ohm Tester AC/DC 750/1000V Amp Volt Ohm Tester Multi Meter

Features:
3 1/2 digits, 7segment, 0.5" high LCD Display.
Max display: 1999, Auto polarity display.
Small and compact design.
Overload protection on all ranges.
Sampling 2~3 times readings per second.
Diode assembly test / Temperature test/Transistor hFE test.
Low battery voltage indication.

Specification:
Model: DT830B
Measuring range:
Max AC Current: 10A
Max AC Voltage range: 1000V
Max DC Voltage range: 750V
Resistance Measurement: 200 Ohm-2000K Ohm range
Temperature Test: -40-1000 ℃
Power Supply: 9V Battery 6F22 or NEDA 1604 (Not Included)
Color: Black
Power Supply : 9V.ONE Battery

Scale degree & Accuracy:
DC Voltage: 200mV/100uV; 2000mV/1mV; 20V/10mV; 200V/100mV ±(0.5%+2) ; 1000V/1V ±(0.8%+2)
AC Voltage: 200V/100mV; 750V/1V ±(1.2%+10)
DC Current: 2000uA/1uA; 20mA/10uA ±(1%+2); 200mA/100uA ±(1.2%+2) ; 10A/10mA ±(2%+2)
Resistance: 200Ω/0.1Ω; 2000Ω/1Ω; 20KΩ/10Ω; 200KΩ,100Ω ±(0.8%+2) ; 2000KΩ/1000Ω ±(1%+2)
Temperature: -40-1000℃
Resolution: 1℃
Accuracy: ±3%
Product size: approx. 124*67*24mm/4.88*2.63*0.94''
Net weight: approx. 99g
Gross weight: approx.120g

AC voltage
Frequency range: 45Hz to 450Hz.
Response: Average responding, calibrated in RMS of a sine wave.

Range Resolution Accuracy
200V 100mV ±1.2 % of rdg ± 10 digits
750V 1V ±1.2 % of rdg ± 10 digits
Note: some models have a maximum input voltage of only 600V AC with an overload protection of 600V DC or RMS AC for all ACV ranges.

DC voltage
Range Resolution Accuracy
200mV 0.1mV ±0.5% of rdg ± 2 digits
2000mV 1mV ±0.5% of rdg ± 2 digits
20V 10mV ±0.5% of rdg ± 2 digits
200V 100mV ±0.5% of rdg ± 2 digits
1000V 1V ±0.8% of rdg ± 2 digits

Input impedance: 1MΩ
Maximum input voltage: 1000V DC or 750V rms (200mV scale: 500V DC or 350V AC rms) Note: some models will have a maximum DC input voltage of only 600V with an overload protection of 250V RMS AC for the 200mV range and 600V DC or RMS AC for other ranges.

DC current
Overload protection: F250mA 250V fuse (10A range is unfused!).

Range Resolution Accuracy
200µA 0.1µA ±1.0% of rdg ± 2 digits
2000µA 1µA ±1.0% of rdg ± 2 digits
20mA 0.01mA ±1.0% of rdg ± 2 digits
200mA 0.1mA ±1.5% of rdg ± 2 digits
10A 10mA ±3.0% of rdg ± 2 digits

Resistance
Maximum open circuit voltage: 3.2V
Overload protection: 250V rms. AC on all ranges.

Range Resolution Accuracy
200Ω 0.1Ω ±0.8% of rdg ± 3 digits
2000Ω 1Ω ±0.8% of rdg ± 2 digits
20kΩ 10Ω ±0.8% of rdg ± 2 digits
200kΩ 100Ω ±0.8% of rdg ± 2 digits
2000kΩ 1kΩ ±1.0% of rdg ± 2 digits

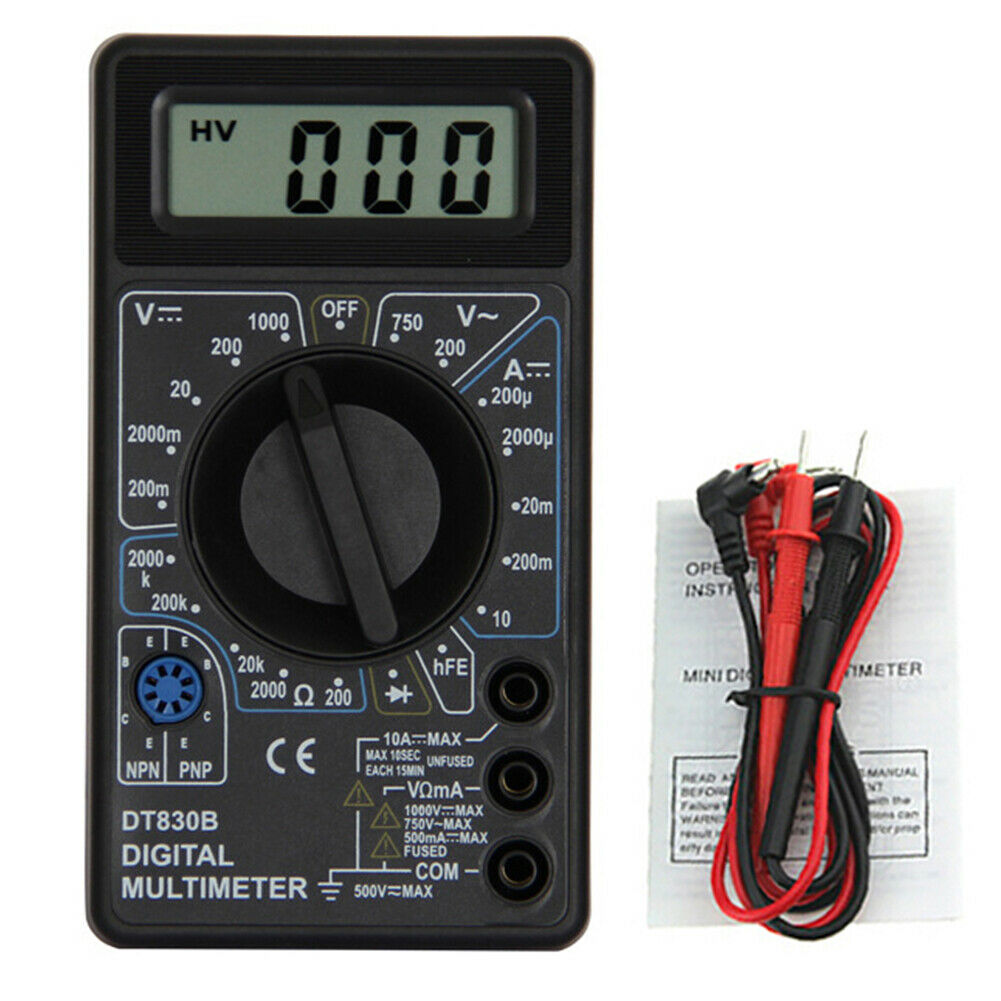

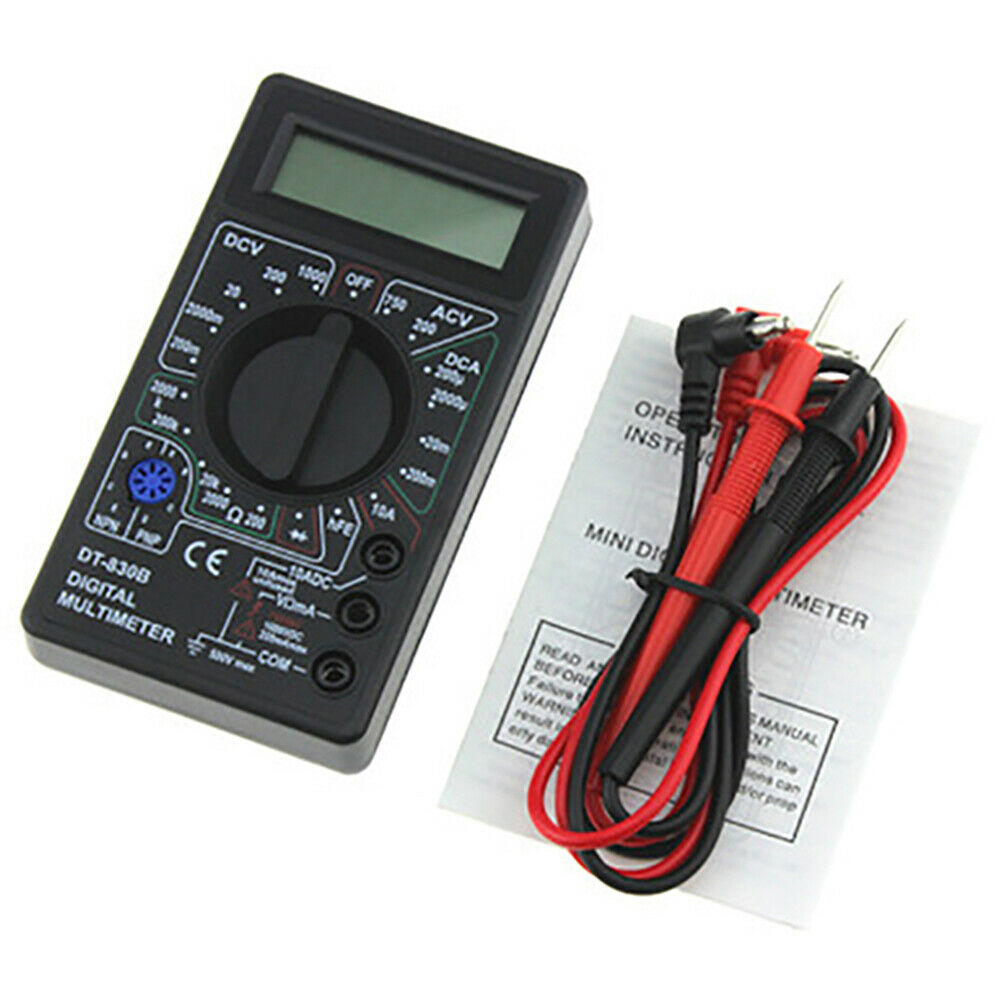

Package Included:
1 x DT830B Digital Multimeter Electric Voltmeter Ammeter Ohm Tester Meter
1 x Instruction manual

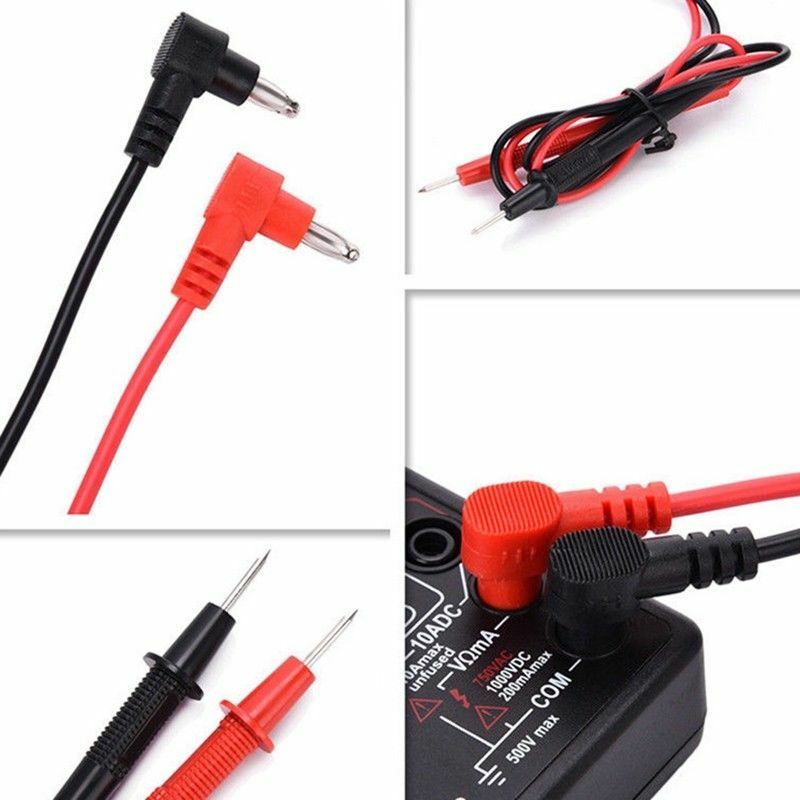

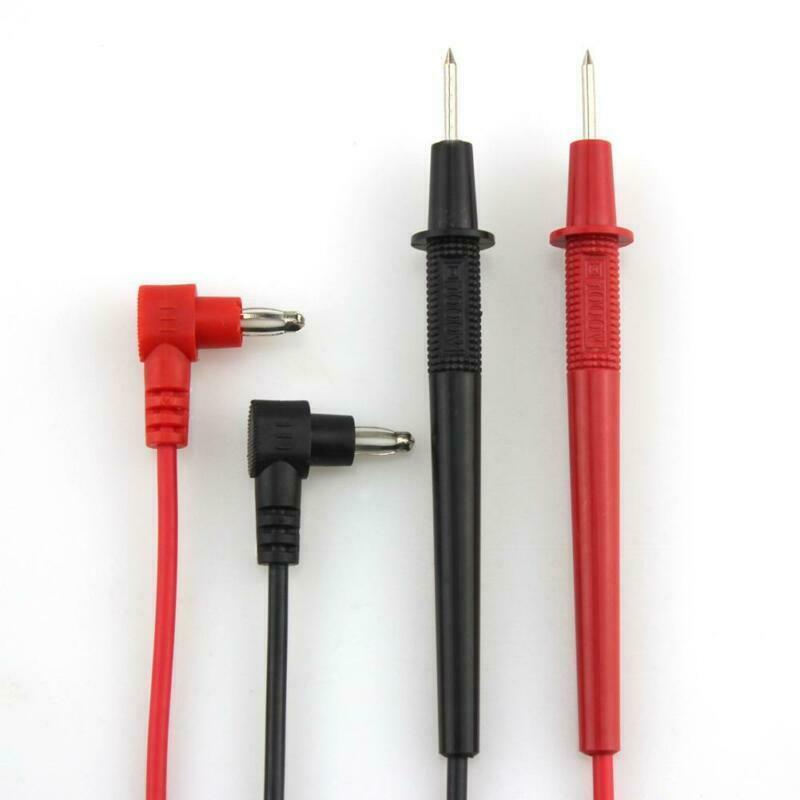

2 x Probes
Note:Battery not included
