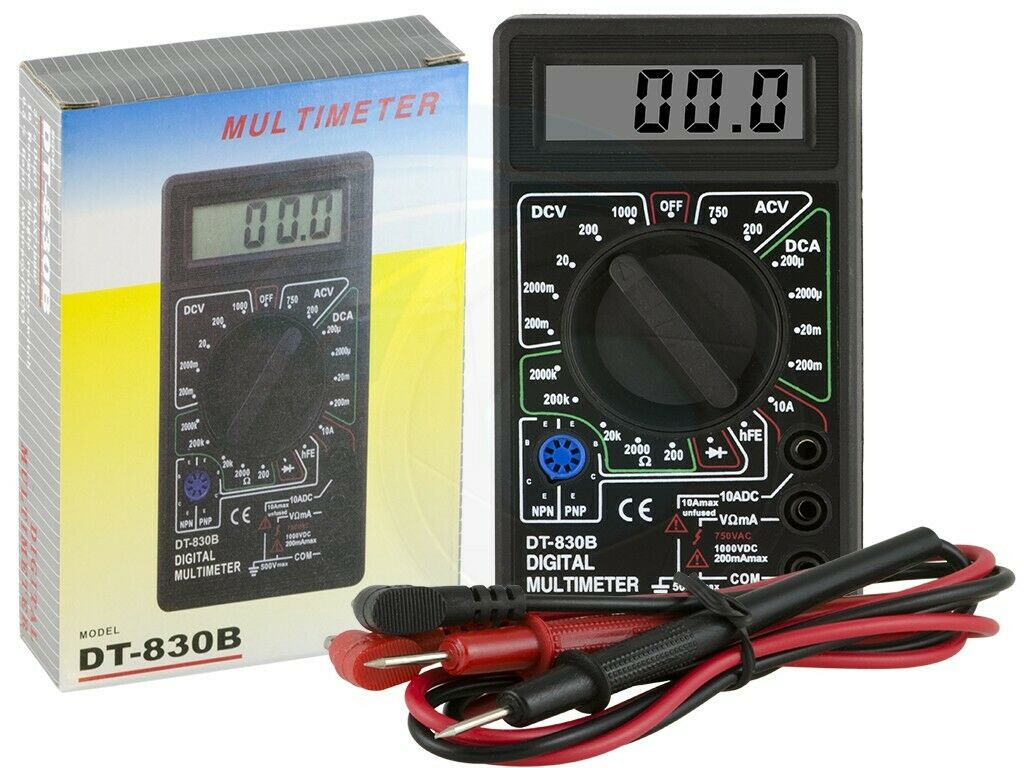

Digital Multimeter Electric Voltmeter Ammeter Ohm Tester AC/DC 750/1000V Amp Volt Ohm Tester Multi Meter

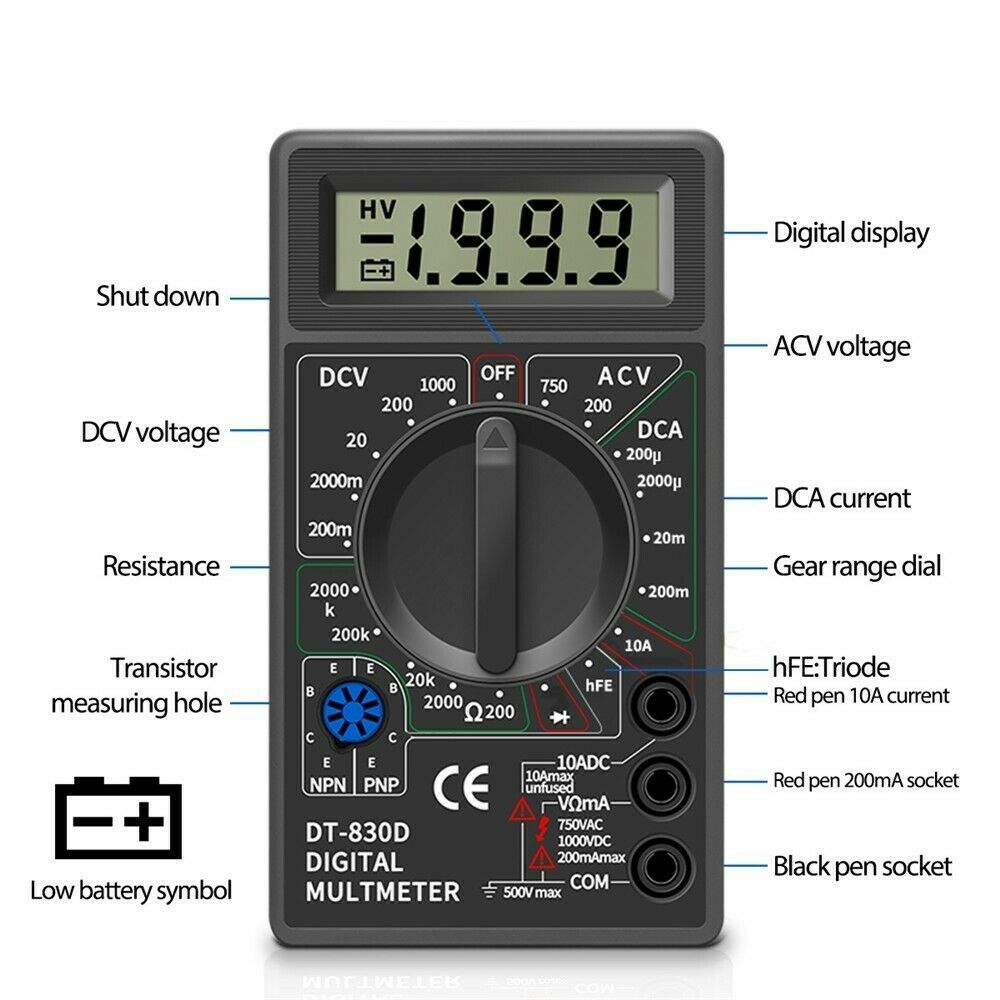

Features:
3 1/2 digits, 7segment, 0.5" high LCD Display.
Max display: 1999, Auto polarity display.
Small and compact design.
Overload protection on all ranges.
Sampling 2~3 times readings per second.
Diode assembly test / Temperature test/Transistor hFE test.
Low battery voltage indication.

Specification:

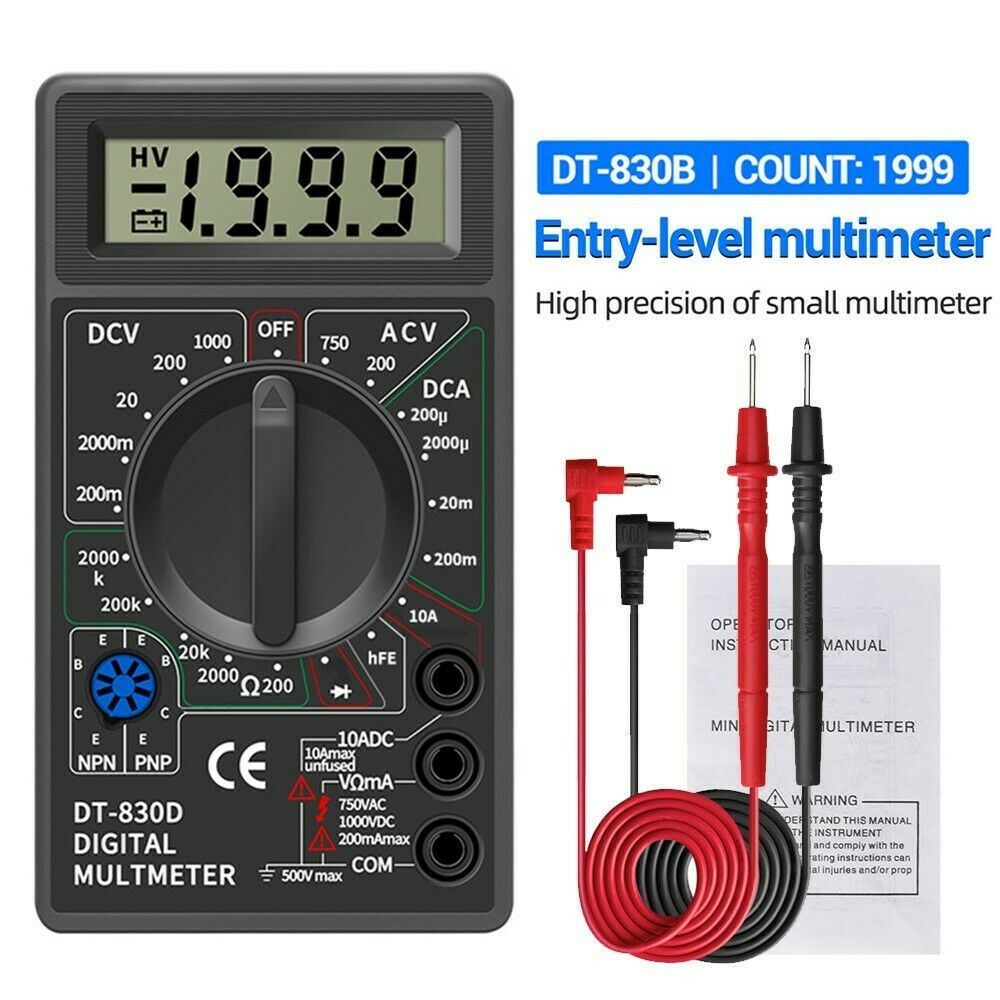

Model: DT830B
Measuring range:
Max AC Current: 10A
Max AC Voltage range: 1000V
Max DC Voltage range: 750V
Resistance Measurement: 200 Ohm-2000K Ohm range
Temperature Test: -40-1000 ℃

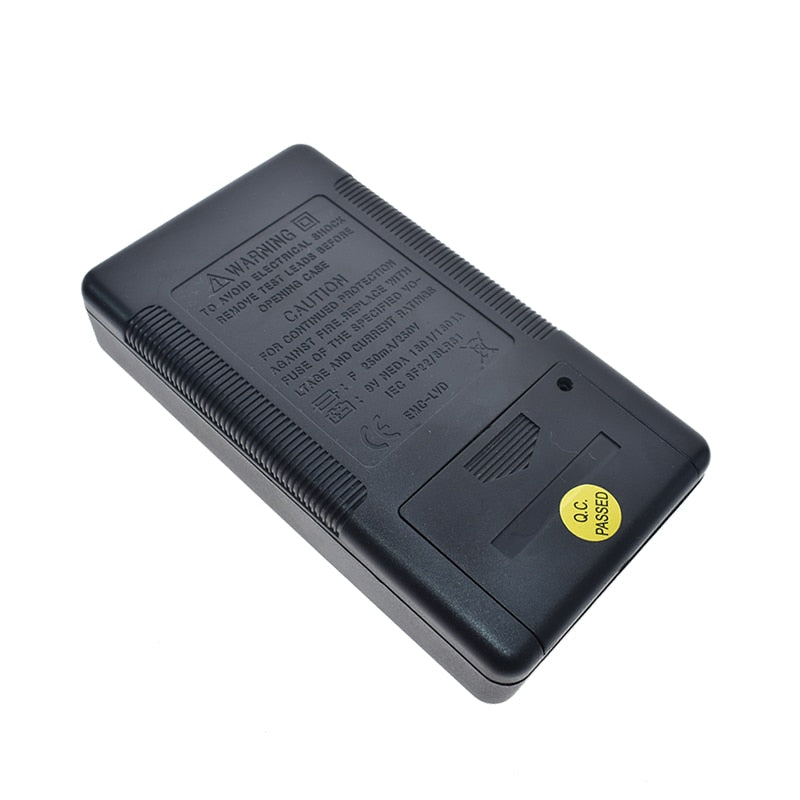

Power Supply: 9V Battery 6F22 or NEDA 1604 (Not Included)
Color: Black
Power Supply : 9V.ONE Battery

Scale degree & Accuracy:
DC Voltage: 200mV/100uV; 2000mV/1mV; 20V/10mV; 200V/100mV ±(0.5%+2) ; 1000V/1V ±(0.8%+2)
AC Voltage: 200V/100mV; 750V/1V ±(1.2%+10)
DC Current: 2000uA/1uA; 20mA/10uA ±(1%+2); 200mA/100uA ±(1.2%+2) ; 10A/10mA ±(2%+2)
Resistance: 200Ω/0.1Ω; 2000Ω/1Ω; 20KΩ/10Ω; 200KΩ,100Ω ±(0.8%+2) ; 2000KΩ/1000Ω ±(1%+2)
Temperature: -40-1000℃
Resolution: 1℃
Accuracy: ±3%

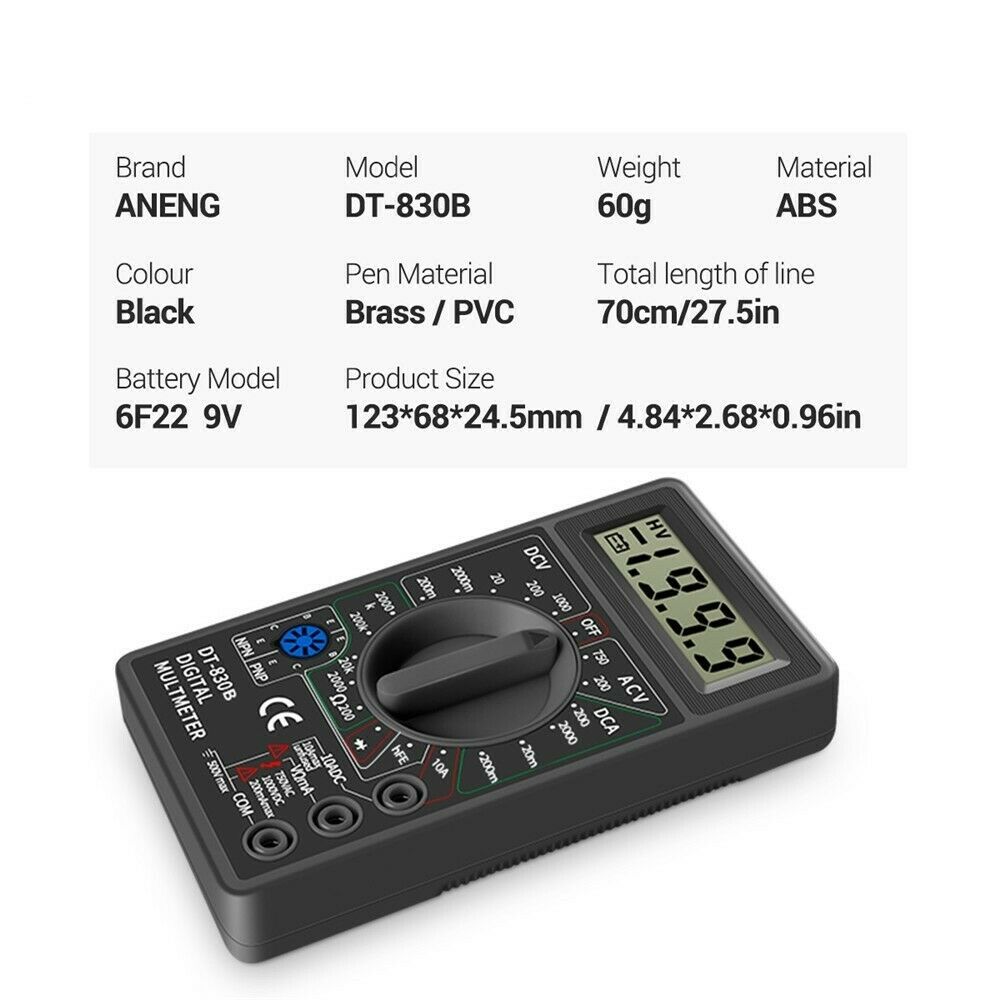

Product size: approx. 124*67*24mm/4.88*2.63*0.94''
Net weight: approx. 99g
Gross weight: approx.120g

AC voltage
Frequency range: 45Hz to 450Hz.
Response: Average responding, calibrated in RMS of a sine wave.

Range Resolution Accuracy
200V 100mV ±1.2 % of rdg ± 10 digits
750V 1V ±1.2 % of rdg ± 10 digits
Note: some models have a maximum input voltage of only 600V AC with an overload protection of 600V DC or RMS AC for all ACV ranges.

DC voltage
Range Resolution Accuracy
200mV 0.1mV ±0.5% of rdg ± 2 digits
2000mV 1mV ±0.5% of rdg ± 2 digits
20V 10mV ±0.5% of rdg ± 2 digits
200V 100mV ±0.5% of rdg ± 2 digits
1000V 1V ±0.8% of rdg ± 2 digits

Input impedance: 1MΩ
Maximum input voltage: 1000V DC or 750V rms (200mV scale: 500V DC or 350V AC rms) Note: some models will have a maximum DC input voltage of only 600V with an overload protection of 250V RMS AC for the 200mV range and 600V DC or RMS AC for other ranges.

DC current
Overload protection: F250mA 250V fuse (10A range is unfused!).

Range Resolution Accuracy
200µA 0.1µA ±1.0% of rdg ± 2 digits
2000µA 1µA ±1.0% of rdg ± 2 digits
20mA 0.01mA ±1.0% of rdg ± 2 digits
200mA 0.1mA ±1.5% of rdg ± 2 digits
10A 10mA ±3.0% of rdg ± 2 digits

Resistance
Maximum open circuit voltage: 3.2V
Overload protection: 250V rms. AC on all ranges.

Range Resolution Accuracy
200Ω 0.1Ω ±0.8% of rdg ± 3 digits
2000Ω 1Ω ±0.8% of rdg ± 2 digits
20kΩ 10Ω ±0.8% of rdg ± 2 digits
200kΩ 100Ω ±0.8% of rdg ± 2 digits
2000kΩ 1kΩ ±1.0% of rdg ± 2 digits

Temperature range:200℃-450℃
Soldering Iron Length: 7.0 In,
Cable Length: 57.5 In,
Working Voltage: 110V
Power: 60W

60W 110V Adjustable Temperature Soldering Iron: Inner-heated ceramic technology makes the soldering kit heat up very quickly (within 2 minutes).
5 Pcs Iron Tips: Different shapes of tips make soldering iron easy to fit for guitar, watches, wiring, mobile device, computers hardware, small electronic work, TV capacitors or accessories.
Easy to Use: No need soldering station, just plug and play; adjust the temperature according to your need by the knob wheel on the electronic soldering iron.
Professional soldering iron suitable for basic DIY fixes. It would be very satisfactory for the typical electronics hobbyist, maker, tinkerer, or DIY repairs enthusiast.

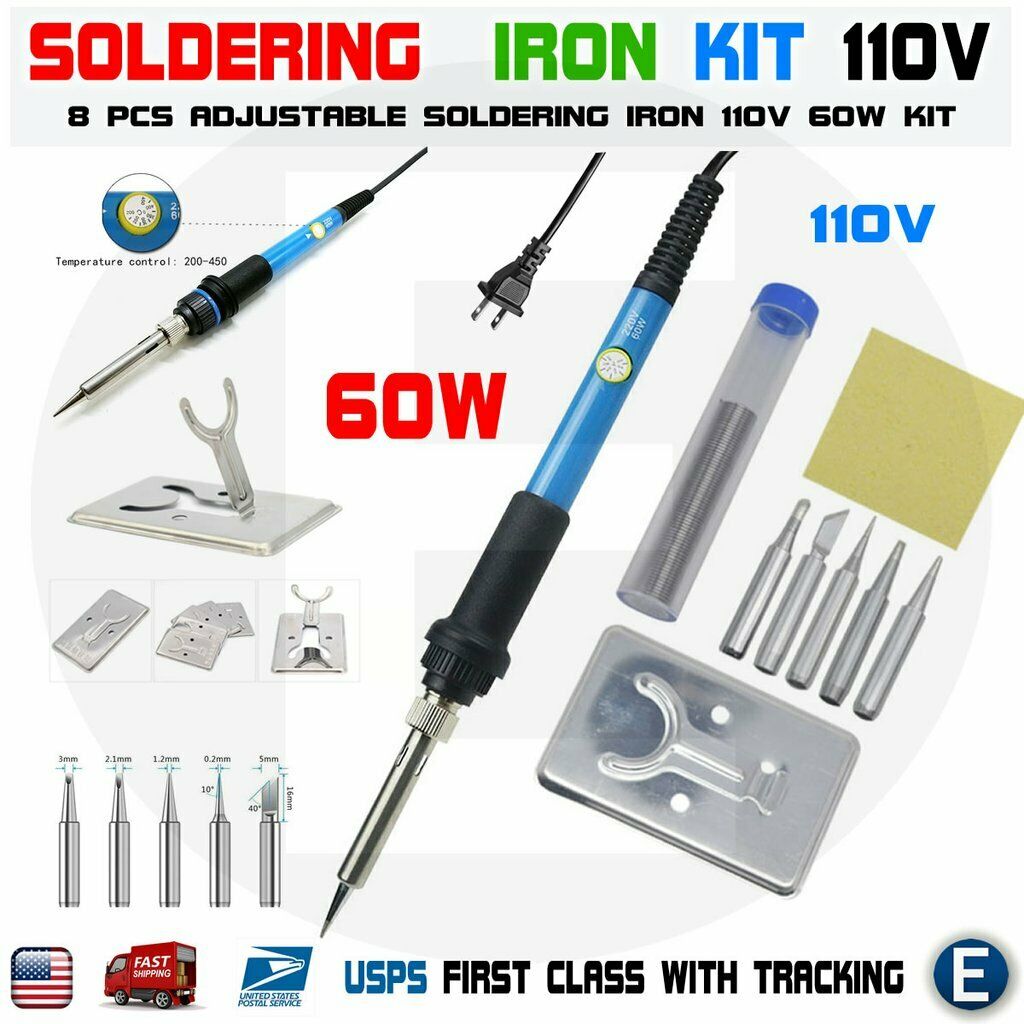

Soldering Iron Electric Gun Adjustable Temperature 60W Welding Set Tool Kit 110V

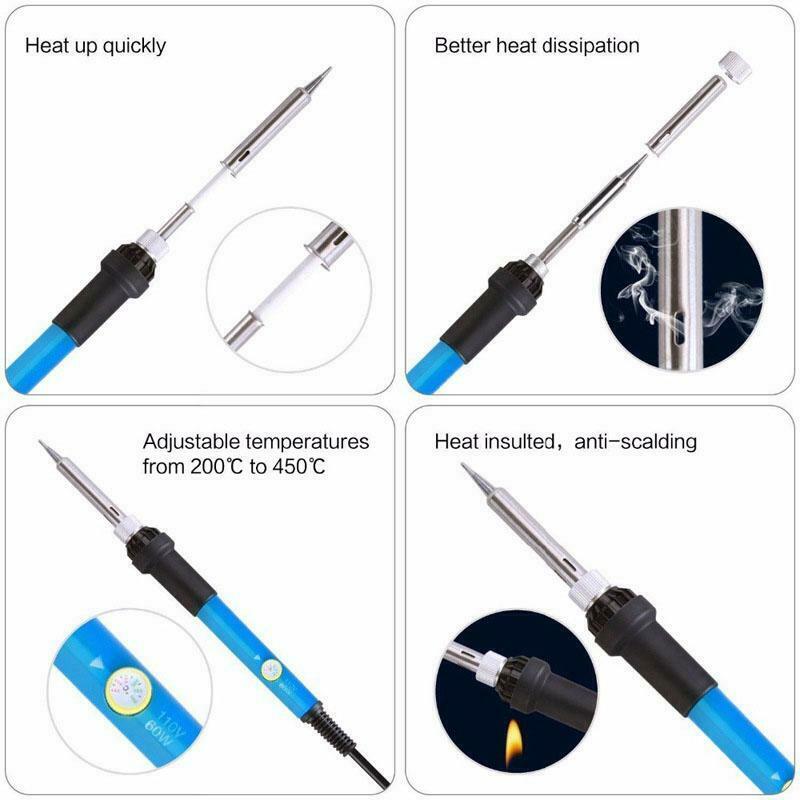

Features:

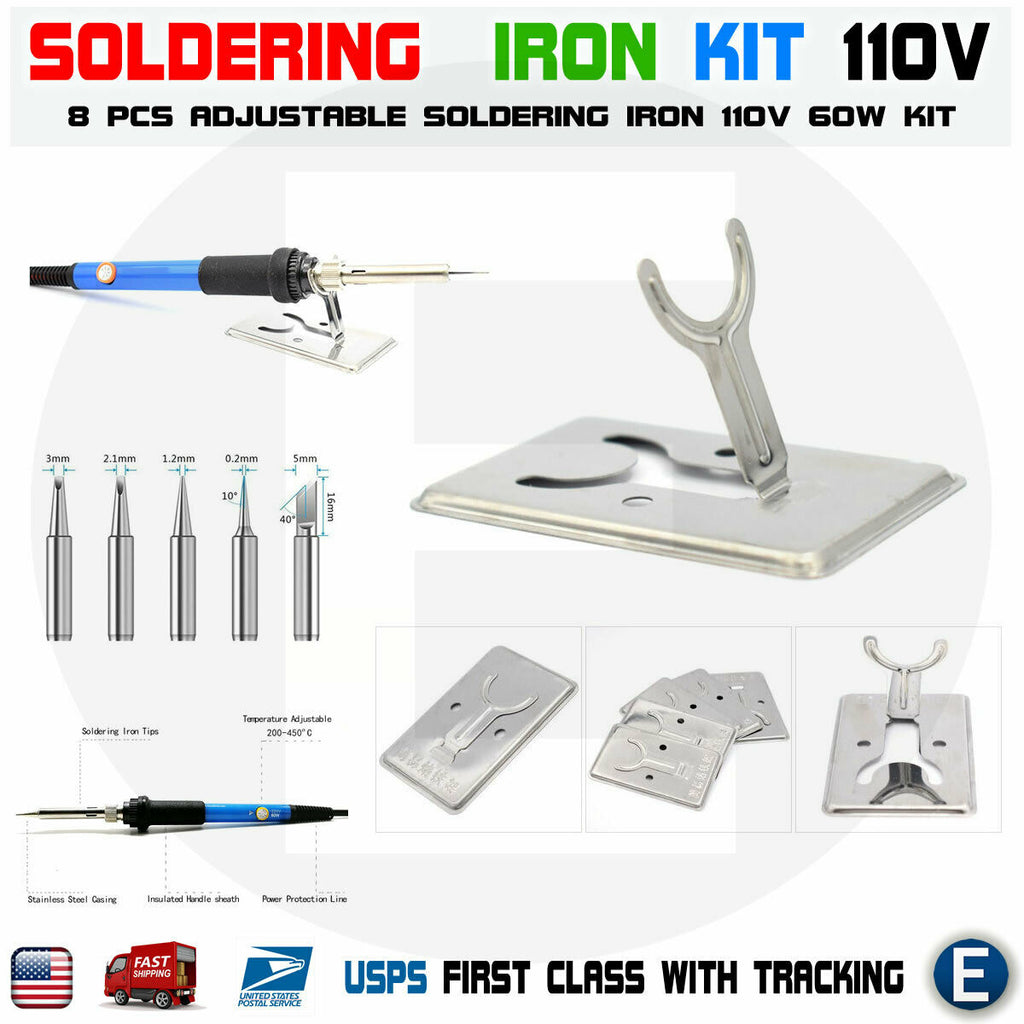

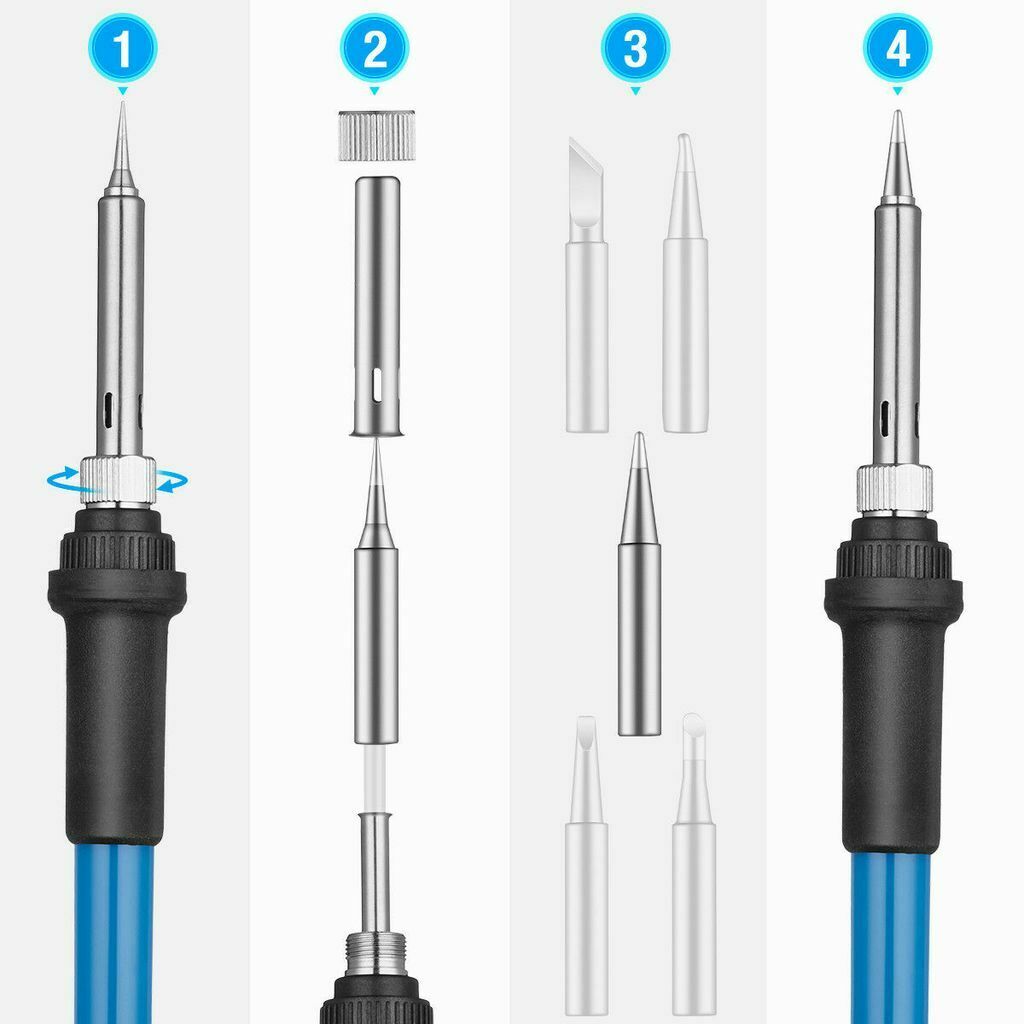

5Pcs Hight Quality Soldering Tips: Shapes: 5 different shapes of tips, which are knife-shaded (also known as Shape K), chisel (also known as Shape D), flat sided (also known as Shape C ), conical ST-7 (also known as Shape B) and needle point(also known as Shape I).You can always choose the most fit soldering tip for different soldering purpose.
Safer Materials And Designs：New upgraded insulation flame retardant design, no electricity on the surface and it's safer to use.Anti-scald nuts can effectively reduce accidents and make your work more handy.
New Upgrade Of Wires：The wire is thickened by 30%, and the heating efficiency is significantly improved. The interface is equipped with anti-breaking design, which greatly increases the service life of the product.
High-intensity Soldering Iron Tip：Excellent thermal conductivity, rapid surface heating and long service life.
High-end Ceramic CoreThe ceramic core heats up fast, has good quality, and is more durable.
Insulated Silicone Sheath： Non-slip, high temperature resistant material, soft and comfortable, excellent feel, can effectively relieve fatigue.
Humanized Vent Design：With multiple ventilation holes, heat dissipation is faster.
High Energy Saving：Anti-oxidation soldering tip has fast tinning effect, more energy saving and longer service life.
Heat Up Quickly：It can be soldered after 1 minute of energization.6 levels of temperature adjustment (200℃-450℃)

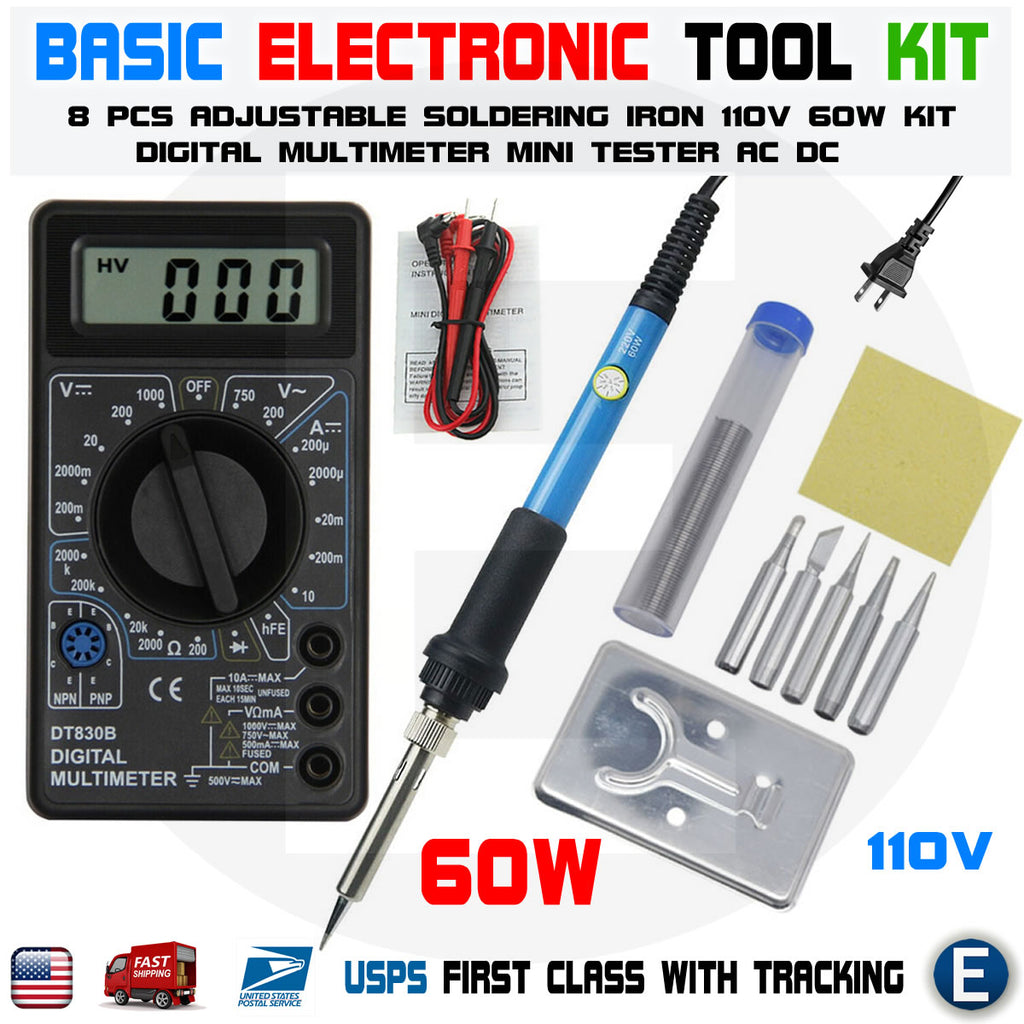

Package Included:

1 x Digital Multimeter Electric Voltmeter Ammeter Ohm Tester Meter
1 x Instruction manual

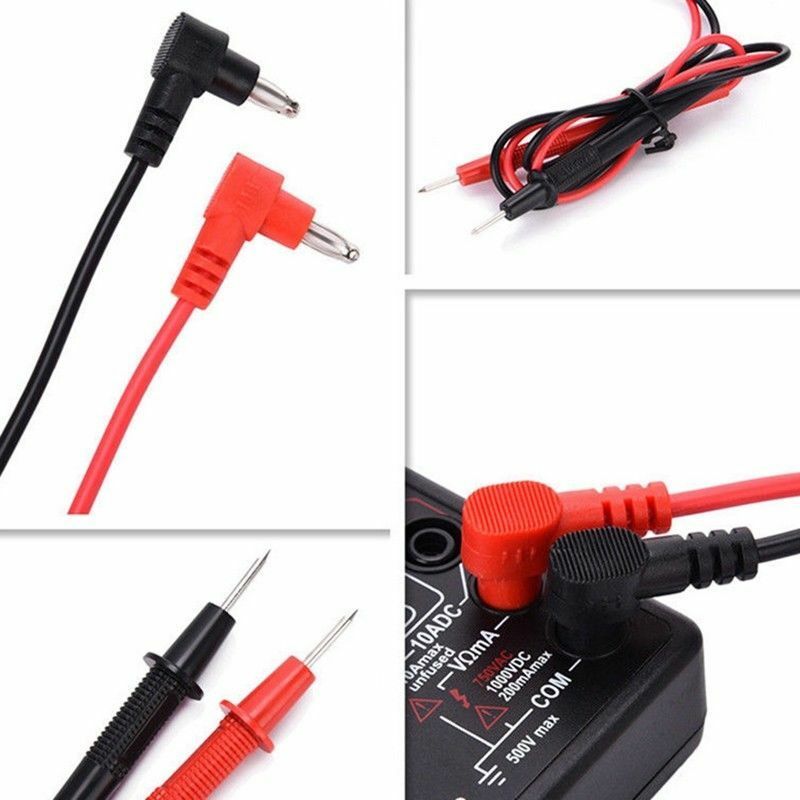

2 x Probes
Note:Battery not included

1 x Adjustable temperature soldering iron
5 x Universal replacement heads
1 x Fixed bracket
1 x Clean cotton pad
1 x Lead-Free Rosin Core Solder
