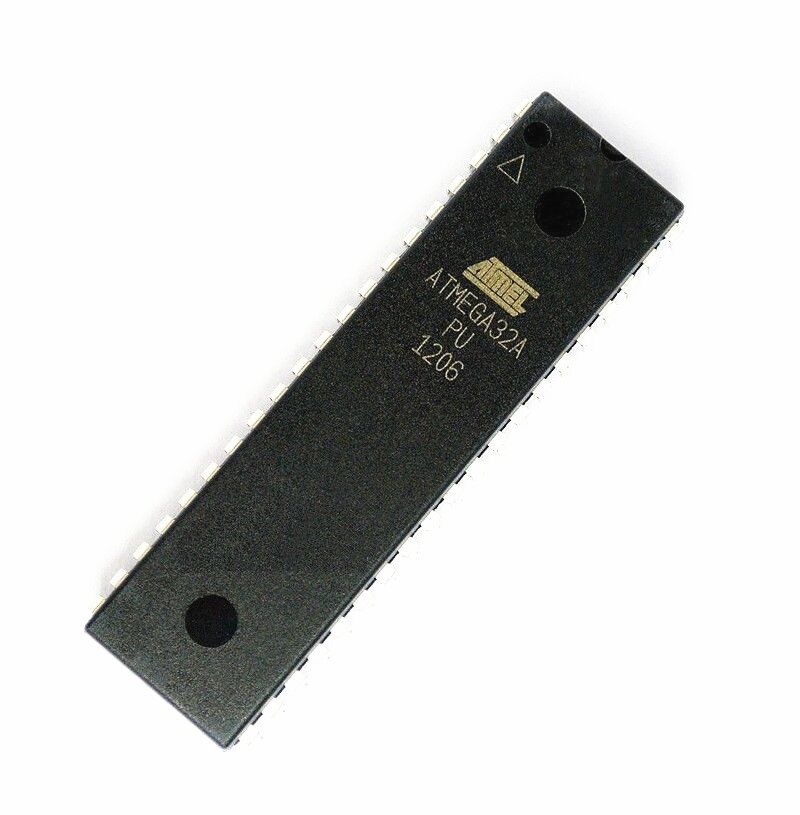

ATMEGA32 ATMEGA32A-PU Microcontroller AVR MCU 32K Flash 16MHZ DIP-40 ATMEL IC

In stock
Features131 Powerful Instructions - Most Single-clock Cycle Execution32 × 8 General Purpose Working RegistersFully Static OperationUp to 16 MIPS Throughput at 16 MHzOn-Chip Two-Cycle Multiplier32 K...
$8.63
$8.63
  customers are viewing this product

Features
131 Powerful Instructions - Most Single-clock Cycle Execution
32 × 8 General Purpose Working Registers
Fully Static Operation
Up to 16 MIPS Throughput at 16 MHz
On-Chip Two-Cycle Multiplier
32 KB of In-System Self-programmable Flash program memory
1 KB EEPROM
2 KB Internal SRAM
Write/Erase cycles: 10,000 Flash/100,000 EEPROM
Data Retention: 20 years at 85°C/100 years at 25°C
In-System Programming by On-chip Boot Program
True Read-While-Write Operation
Programming Lock for Software Security
JTAG (IEEE std. 1149.1 Compliant) Interface
Boundary-scan Capabilities According to the JTAG Standard
Extensive On-chip Debug Support Programming of Flash, EEPROM, Fuses and Lock Bits through the JTAG Interface
QTouch library support
Capacitive touch buttons, sliders and wheels
QTouch and QMatrix acquisition
Up to 64 sense channels

Package Included:
ATMEGA32 ATMEGA32A-PU Microcontroller AVR MCU 32K Flash 16MHZ DIP-40 ATMEL IC
