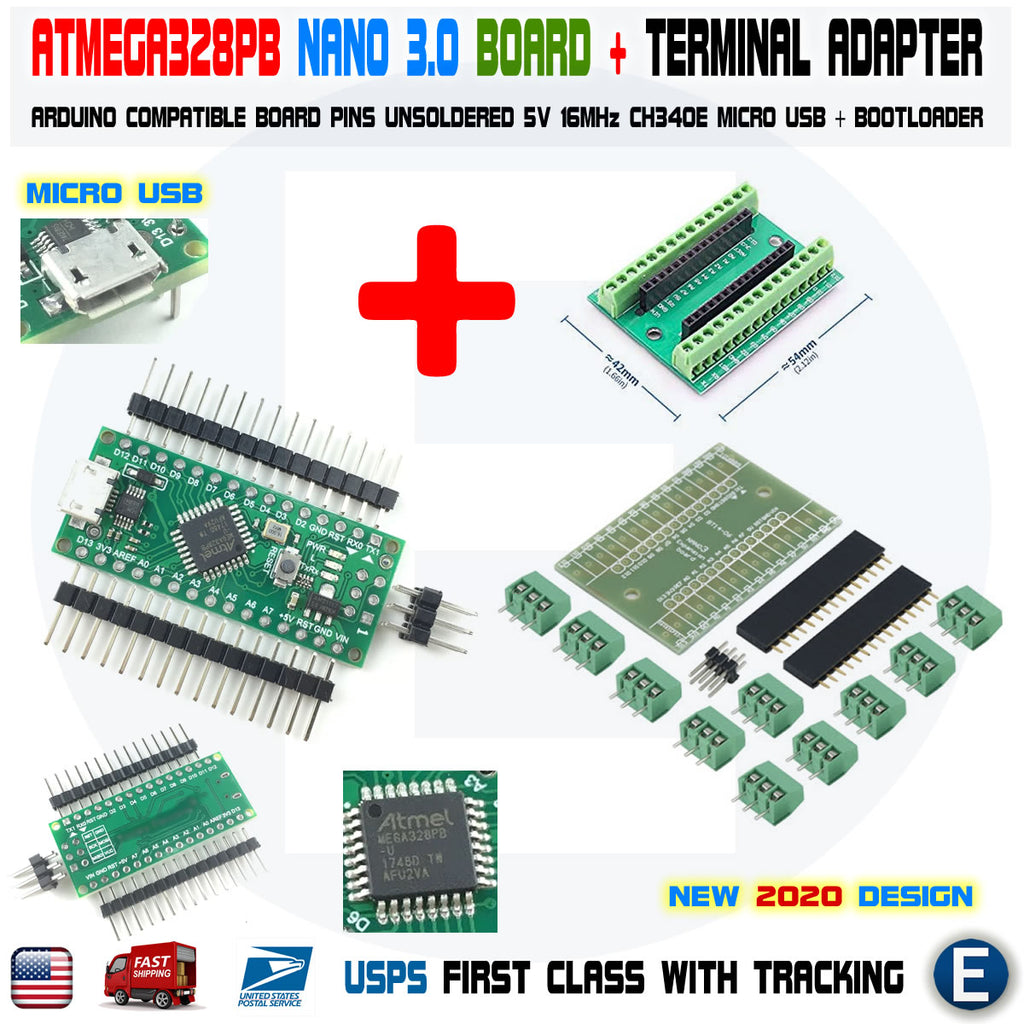

ATmega328P Nano V3.0 Micro USB Board + Terminal Adapter for Arduino Nano V3

Out of stock
Adapter Tech Specs:Products Dimension: 3 x 2 x 0.2 inches Features:This is a terminal adapter for the Arduino NanoYou can use this adapter to easily hook up Arduino Nano to an outside world via hoo...
$5.63
  customers are viewing this product
Adapter Tech Specs:
Products Dimension: 3 x 2 x 0.2 inches

Features:
This is a terminal adapter for the Arduino Nano
You can use this adapter to easily hook up Arduino Nano to an outside world via hook up wires
It is compatible with Arduino Nano version 3.0
100% brand new and high quality
Easily use and connect

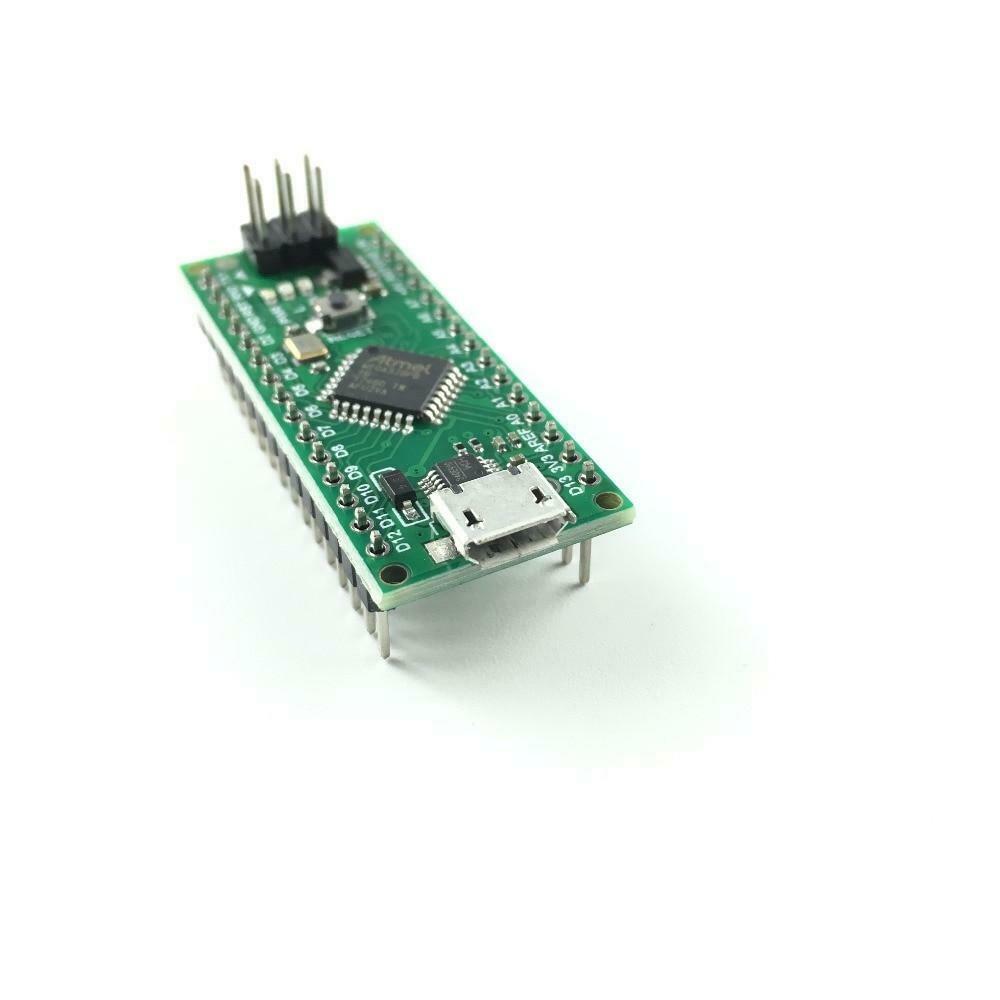

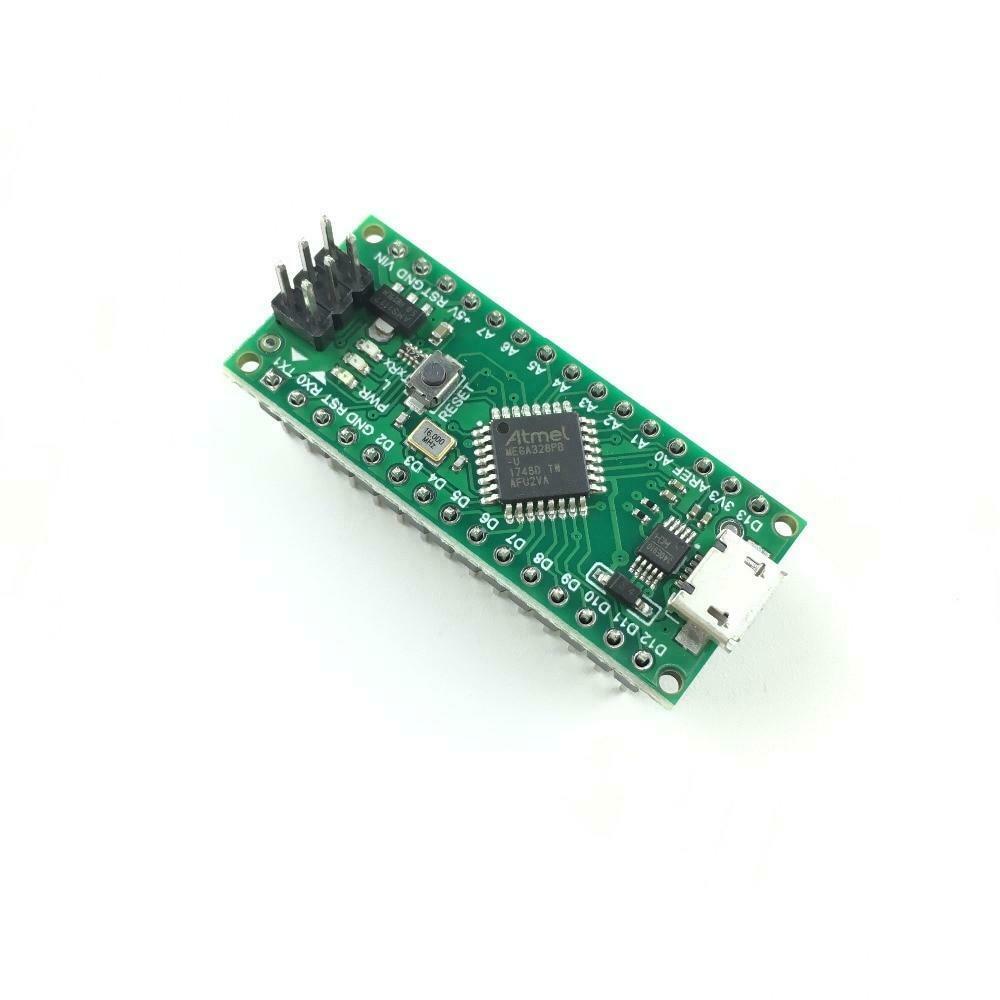

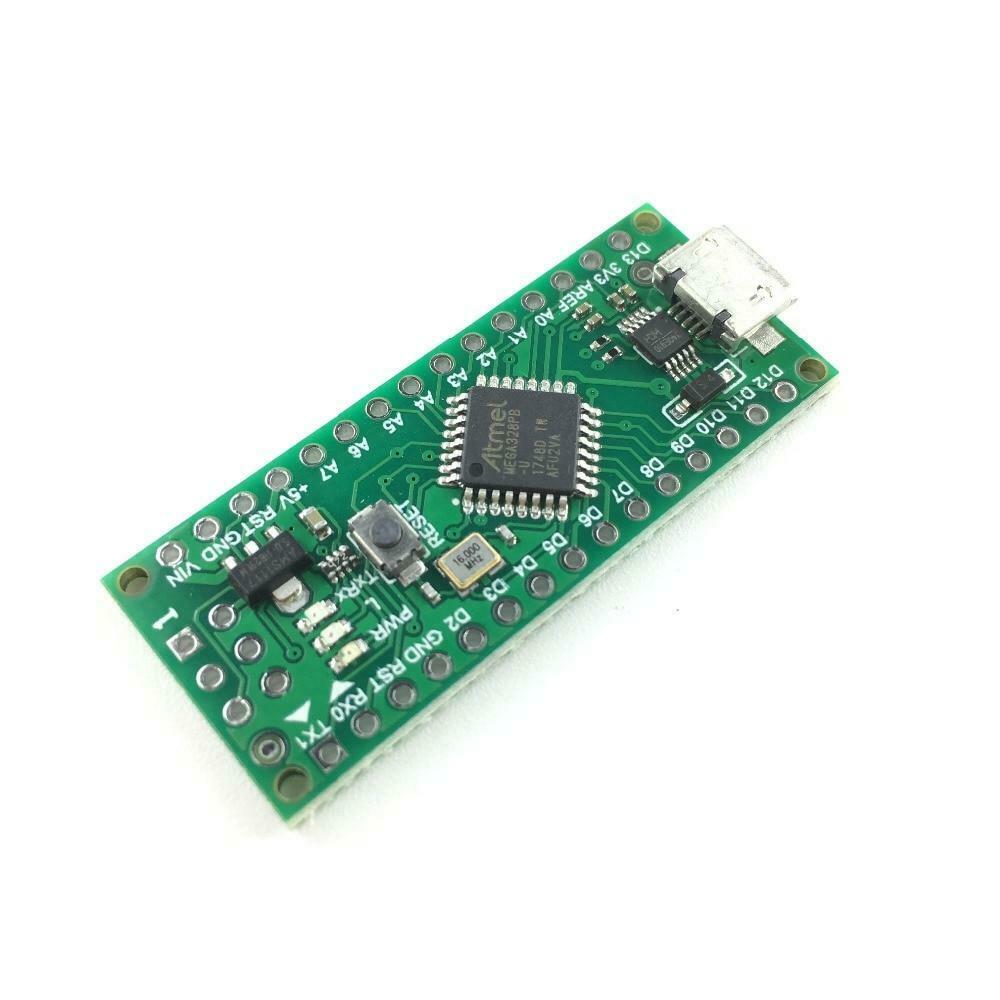

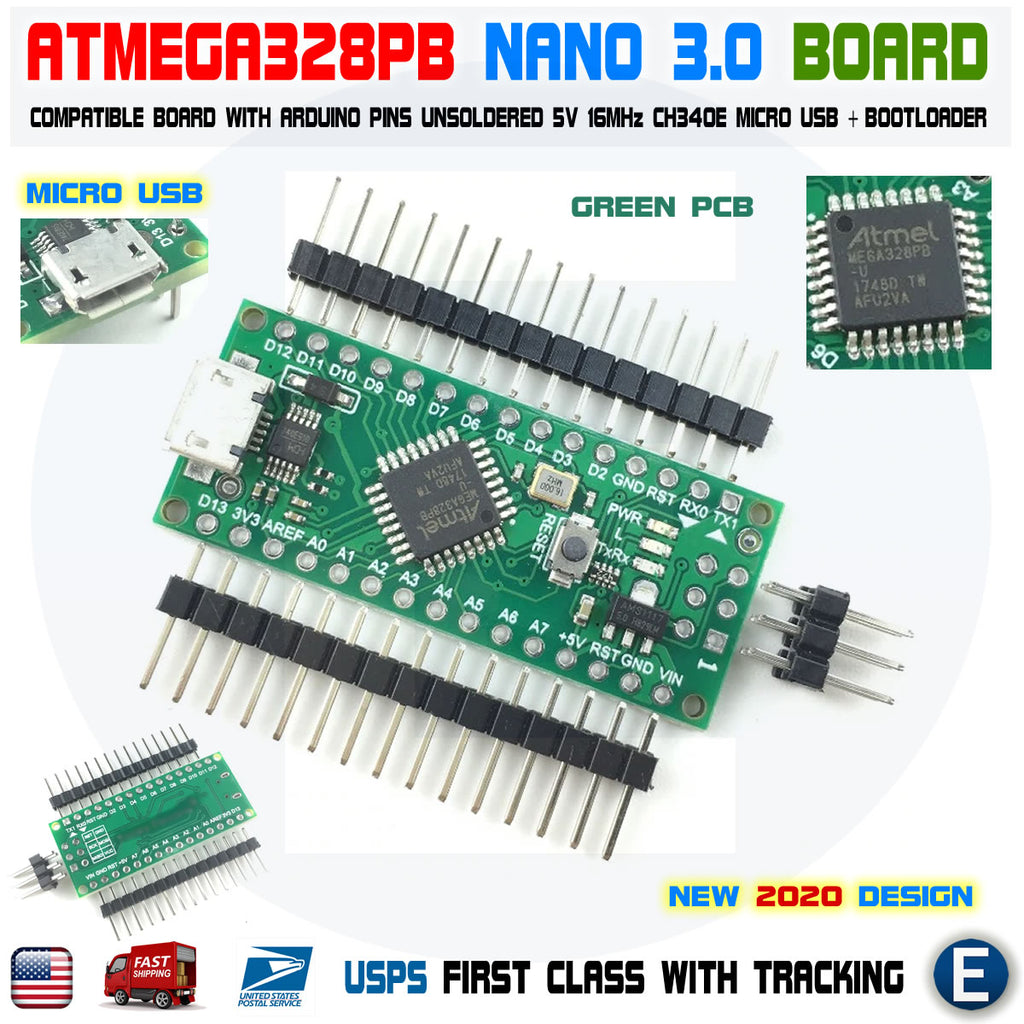

Arduino Nano V3.0 Micro USB Compatible Board ATmega328P
Updated layout for better integration
Guaranteed to work with the Arduino IDE
CH340E USB interface
MICRO USB interface for power and communication
Compact Size
Complete access to all headers

Specification
Micro-controller : Atmel Atmega328P
Operating voltage : 5V
Digital I/O Pins:14 (of which 6 provide PWM output)
Analog Pins: 8
DC Current per I/O Pin:40 mA
Flash Memory: 32 KB (ATmega328) of which 2 KB used by boot loader
SRAM: 2 KB (ATmega328)
EEPROM:1 KB (ATmega328)
Clock Speed:16 MHz
Dimensions: 42*17*8 mm
Support the Li-ion polymer batteries while direct connect Vcc Pin

The header pins has not been soldered. It uses the chip ATmega328P CH340E instead of FT232RL. You can start with various electronic projects by using the Arduino software (IDE). It has everything that Arduino/Genuino UNO has, even with more analog input pins and onboard +5V AREF jumper. It is a smallest, complete, and breadboard friendly board and 100% compatible with the official Arduino Nano board, and fully compatible with Windows, Mac and Linux operating system. It can be powered via USB connection, 3.3V-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). This board has 20 digital inputs and outputs RX and TX, D2 ~ D13, A0 ~ A5 and 8 analog inputs A0 ~ A7 - a module with many interfaces. It is enough for most applications.

Package Included:

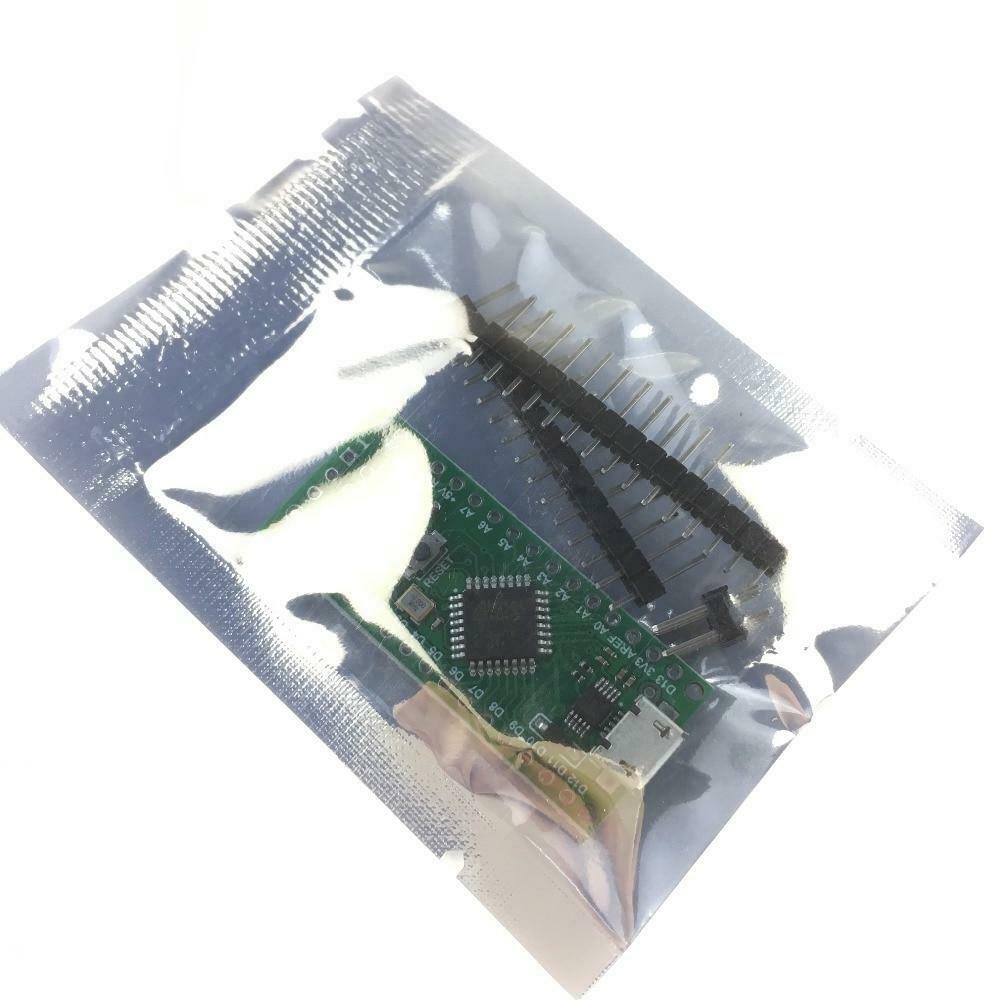

1 x ATmega328P Nano V3.0 Micro USB Board + Terminal Adapter for Arduino Nano V3
1 x Arduino Nano Terminal Adapter Expansion Board Kit (require soldering)
