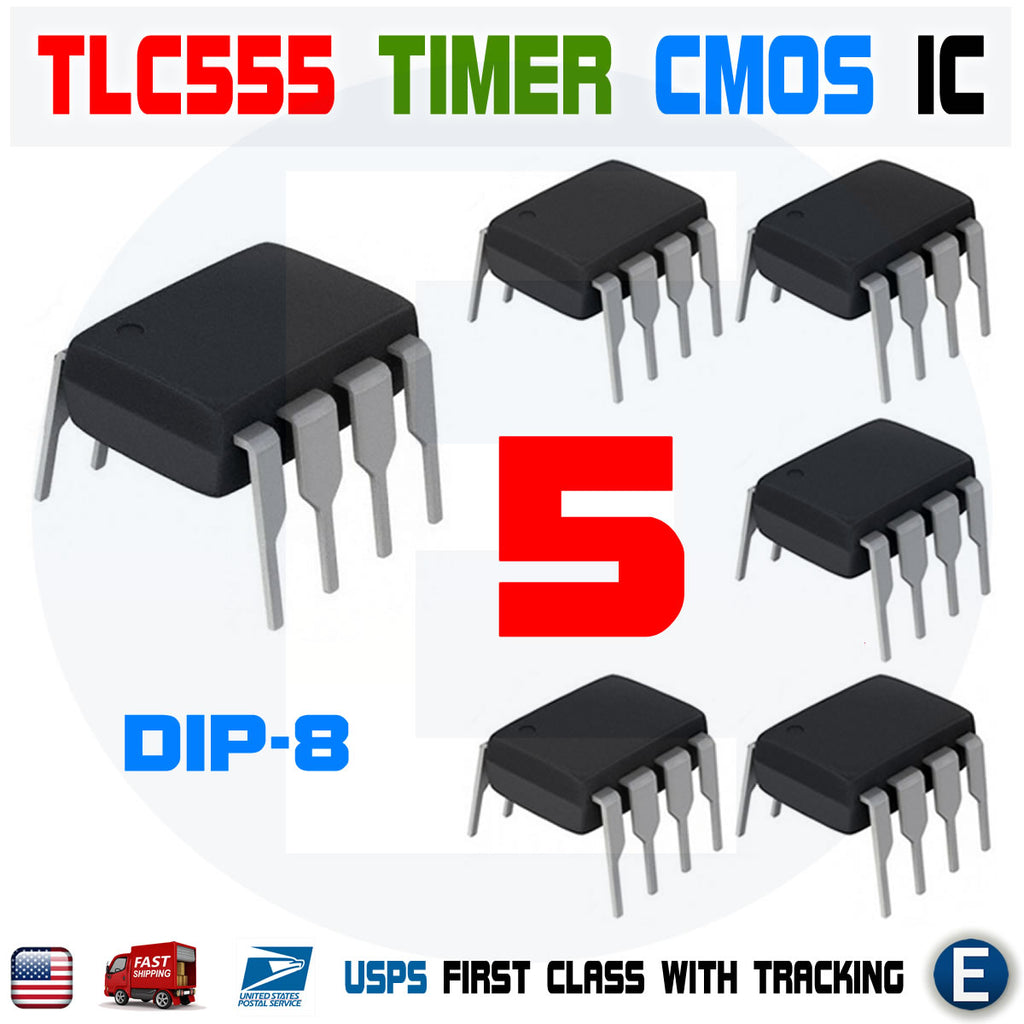

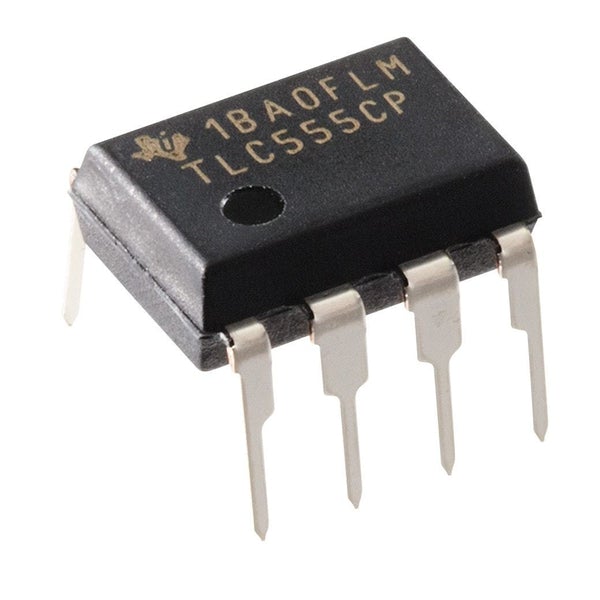

5PCS TLC555 TLC555CP COMS DIP-8 Timer Texas Instruments TI LinCMOS Timer IC
In stock
Business & Industrial>Electrical Equipment & Supplies>Other Electrical Equipment & Supplies
TLC555-IC-5
Features
Very low power consumption:
- 1-mW typical at VDD = 5 V
Capable of operation in astable mode
CMOS output capable of swinging rail to rail
High output current capability
- Sink: 100-mA typi...
$4.63
customers are viewing this product
Features
Very low power consumption:
- 1-mW typical at VDD = 5 V
Capable of operation in astable mode
CMOS output capable of swinging rail to rail
High output current capability
- Sink: 100-mA typical
- Source: 10-mA typical
Output fully compatible with CMOS, TTL, and MOS
Low supply current reduces spikes during output transitions
Single-supply operation from 2 V to 15 V
Functionally interchangeable with the NE555 - has same pinout
Family: TLC555
Type: Standard
Number of Internal Timers: 1
Maximum High Level Output Current: -10mA
Minimum Operating Supply Voltage: 2V
Maximum Low Level Output Current: 100mA
Typical Operating Supply Voltage: 2.5V'3.3V'5V'9V'12V
Maximum Operating Supply Voltage: 15V
Maximum Power Dissipation: 1000mW
Supplier Package: PDIP
Minimum Operating Temperature: 0°C
Product Width: 6.35mm
Maximum Operating Temperature: 70°C
Product Length: 9.81mm
Mounting: Through Hole
Description
The TLC555 is a monolithic timing circuit fabricated using the TI LinCMOS™ process. The timer is fully compatible with CMOS, TTL, and MOS logic and operates at frequencies up to 2 MHz. Because of its high input impedance, this device supports smaller timing capacitors than those supported by the NE555 or LM555. As a result, more accurate time delays and oscillations are possible. Power consumption is low across the full range of power-supply voltage.
Package Included:
5PCS TLC555 TLC555CP COMS DIP-8 Timer Texas Instruments TI LinCMOS Timer
