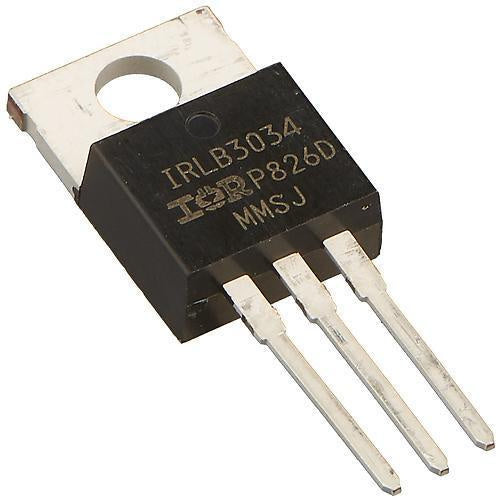

5pcs IRLB3034PBF IRLB3034 HEXFET Power MOSFET TO-220 Rectifier Box Mod

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Integrated Circuits (ICs):Other Integrated Circuits
Product Category: MOSFET Manufacturer: Infineon RoHS: RoHS Compliant Details Technology: Si Mounting Style: Through Hole Package / Case: TO-220-3 Number of Channels: 1 Channel Transistor Polarity:...
$5.63
$5.63
  customers are viewing this product
Product Category: MOSFET
Manufacturer: Infineon
RoHS: RoHS Compliant Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 40 V
Id - Continuous Drain Current: 343 A
Rds On - Drain-Source Resistance: 1.4 mOhms
Vgs th - Gate-Source Threshold Voltage: 2.5 V
Vgs - Gate-Source Voltage: 20 V
Qg - Gate Charge: 108 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Configuration: Single
Packaging: Tube
Brand: Infineon Technologies
Fall Time: 355 ns
Forward Transconductance - Min: 286 S
Height: 15.65 mm
Length: 10 mm
Pd - Power Dissipation: 375 W
Rise Time: 827 ns
Factory Pack Quantity: 1000
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 97 ns
Typical Turn-On Delay Time: 65 ns
Width: 4.4 mm
Unit Weight: 0.211644 oz

Package Included:

5 x IRLB3034 HEXFET Power MOSFET TO-220 Rectifier
