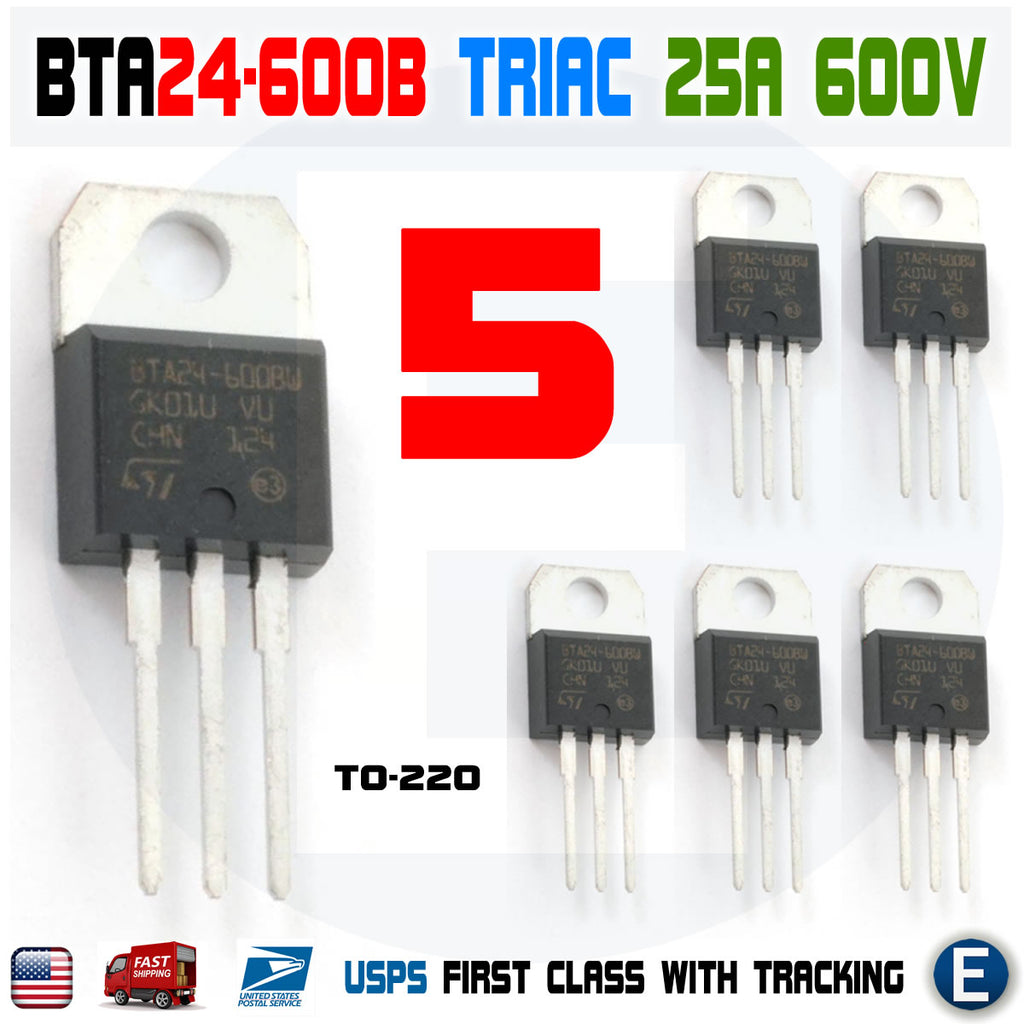

5pcs BTA24-600 TRIAC Thyristor 25A 600V ST BTA24-600B TO-220

In stock
Type: TriacMaximum repetitive peak and off-state voltage (VDRM): 600 VMaximum RMS on-state current (IT(RMS)): 25 ANon repetitive surge peak on-state current (ITSM): 260 AMaximum operating junction ...
$4.63
$4.63
  customers are viewing this product

Type: Triac
Maximum repetitive peak and off-state voltage (VDRM): 600 V
Maximum RMS on-state current (IT(RMS)): 25 A
Non repetitive surge peak on-state current (ITSM): 260 A
Maximum operating junction and storage temperature range (Tstg, Tj): ..125 °C
Junction to ambient thermal resistance (RTH(j-a)): 50 K/W
Junction to case thermal resistance (RTH(j-c)): 1.5 K/W
Triggering gate voltage (VGT): 1.3 V
Peak on-state voltage drop (VTM): 1.55 V
Triggering gate current (IGT): 50 mA
Holding current (IH): 80 mA
Package: TO-220


Applications

Applications include the ON/OFF function in
applications such as static relays, heating
regulation, induction motor starting circuits, etc.,
or for phase control operation in light dimmers,
motor speed controllers, and similar.
The snubberless versions (BTA/BTB...W and T25
series) are especially recommended for use on
inductive loads, due to their high commutation
performances. The BTA series provides an
insulated tab (rated at 2500 VRMS).

Package Included:
5pcs BTA24-600 TRIAC Thyristor 25A 600V ST BTA24-600B TO-220
