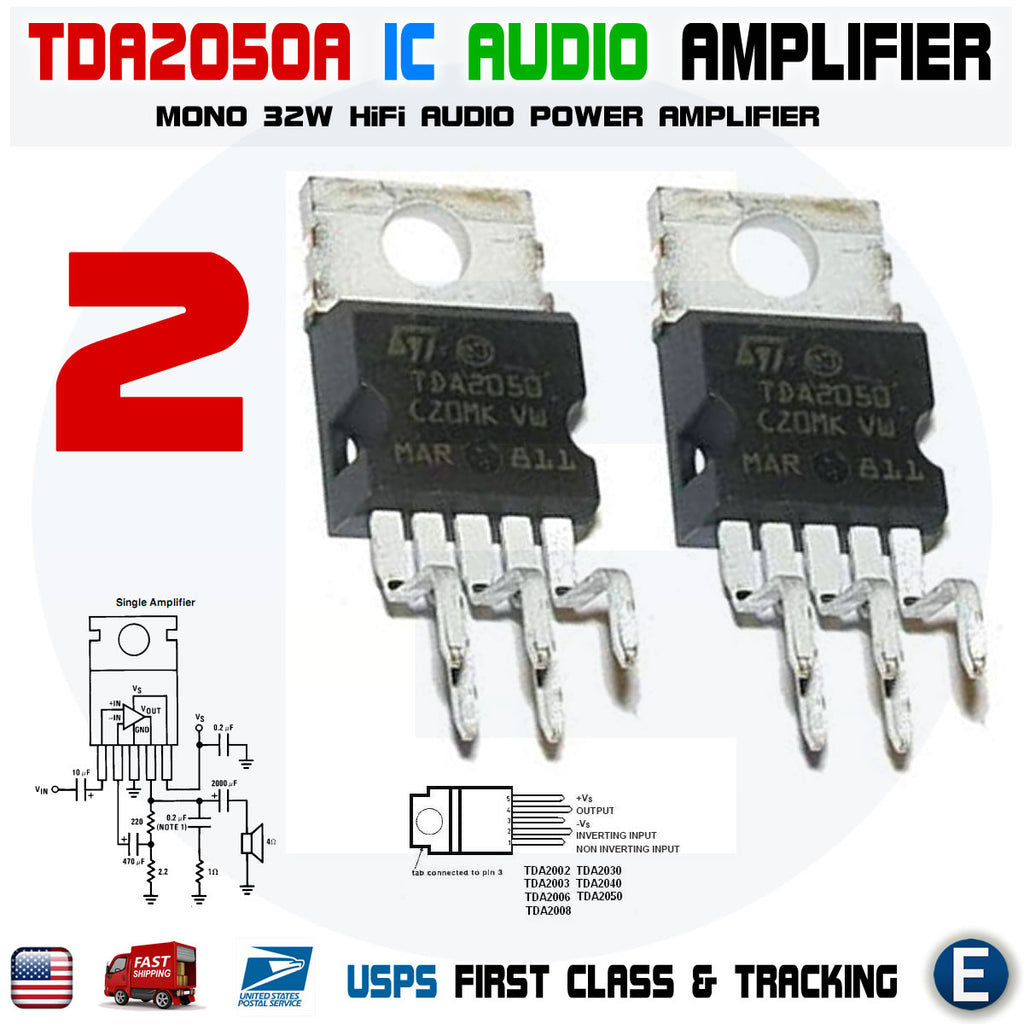

2pcs TDA2050A TDA2050 32W Hi-Fi Audio Power Amplifier IC USA seller

Out of stock
Features ■ High output power (50 W music power IEC 268.3 rules) ■ High operating supply voltage (50 V) ■ Single or split supply operations ■ Very low distortion ■ Short-circuit protection (OUT to G...
$4.63
  customers are viewing this product
Features
■ High output power (50 W music power IEC 268.3 rules)
■ High operating supply voltage (50 V)
■ Single or split supply operations
■ Very low distortion
■ Short-circuit protection (OUT to GND)
■ Thermal shutdown

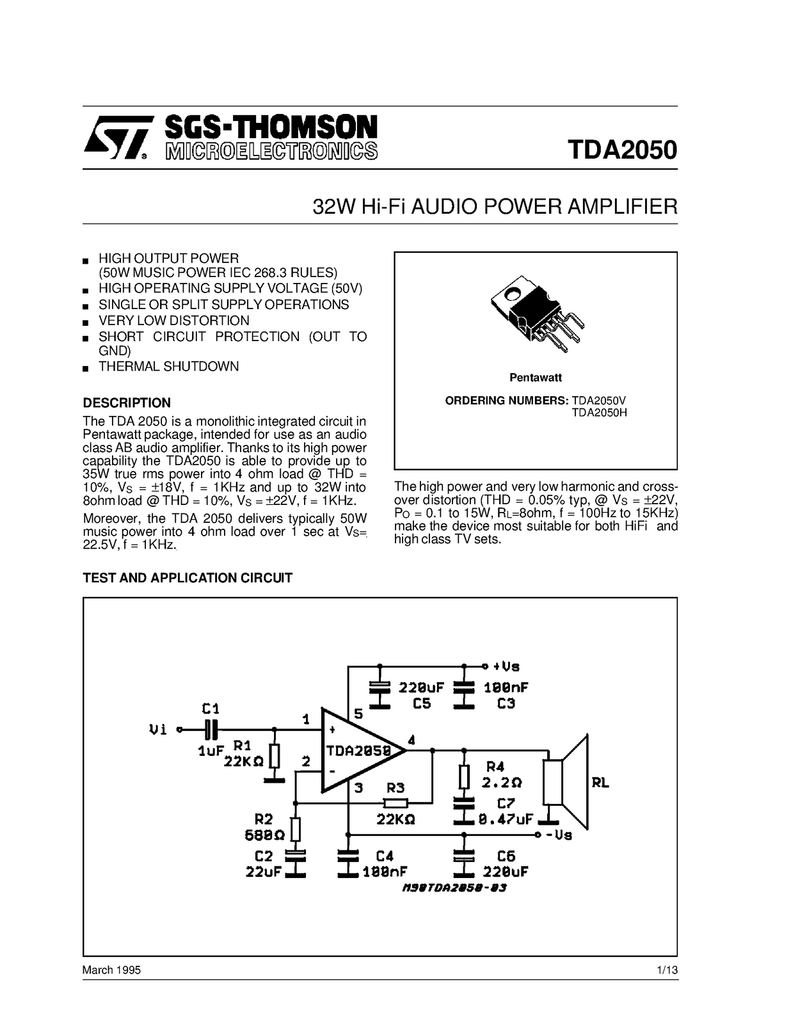

Description
The TDA2050A is a monolithic IC in a Pentawatt
package intended for use as a low-frequency
class-AB amplifier.
Thanks to its high power capability the TDA2050
is able to provide up to 35 W true RMS power into
a 4 ohm load at THD = 0%, VS = ±18 V, f = 1 kHz
and up to 32 W into an 8 ohm load at THD = 10%,
VS = ±22 V, f = 1 kHz.
Moreover, the TDA2050 delivers typically 50 W
music power into a 4 ohm load over 1 sec at
VS = 22.5 V, f = 1 kHz

The high power and very low harmonic and
crossover distortion (THD = 0.05% typ, at
VS = ±22 V, PO = 0.1 to 15 W, RL= 8 ohm,
f = 100 Hz to 15 kHz) make the device most
suitable for both hi-fi and high-end TV sets.


Package Included:
2pcs TDA2050A TDA2050 32W Hi-Fi Audio Power Amplifier IC
