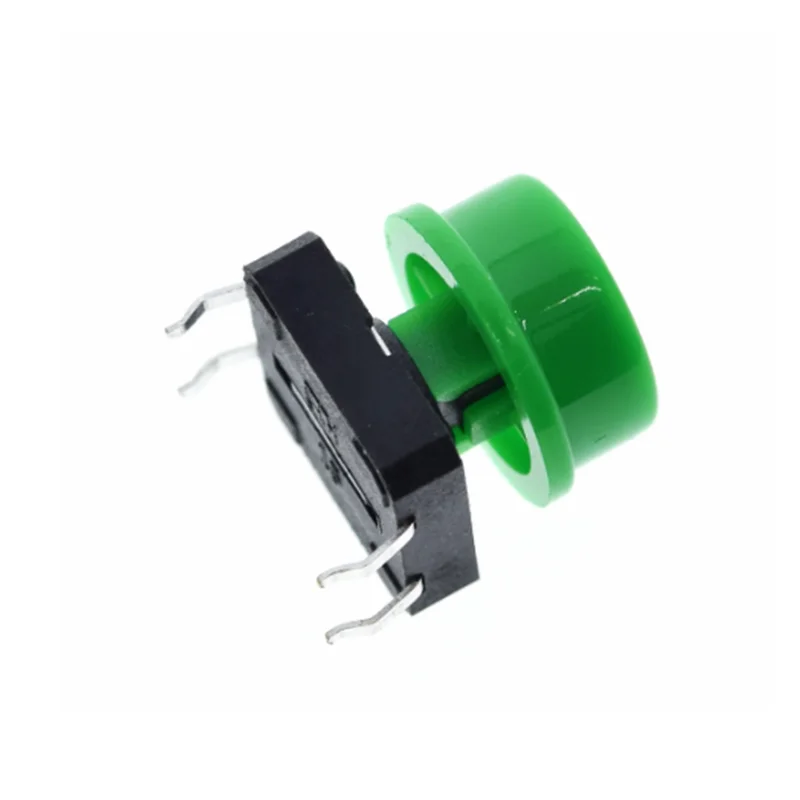

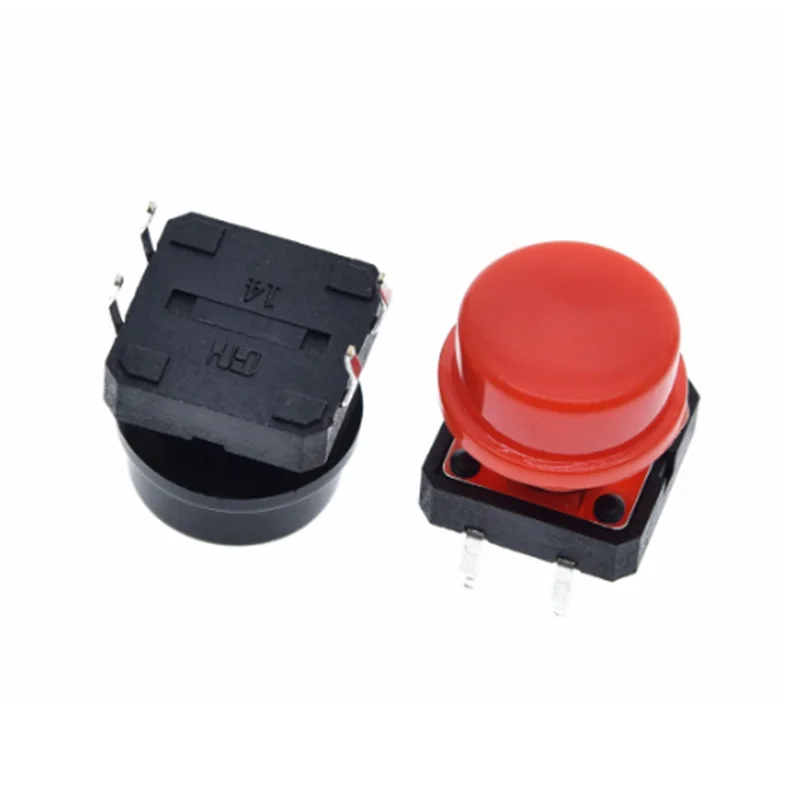

25pcs Tactile Push Button Switch Momentary Micro switch button + 25pcs Tact Caps

In stock
Business & Industrial:Electrical Equipment & Supplies:Switches:Pushbutton Switches
C-03-03-04
Square 12x12mm; Height: 7.3mm (excluding 3.5mm foot length); Four welding feet: longitudinal spacing: 12.5mm; lateral spacing: 4mm, spacing of two positioning columns: 9mm; Plunger type: (Plunger h...
$6.89
$6.89
  customers are viewing this product

Square 12x12mm;
Height: 7.3mm (excluding 3.5mm foot length);
Four welding feet: longitudinal spacing: 12.5mm; lateral spacing: 4mm, spacing of two positioning columns: 9mm;
Plunger type: (Plunger height 1.8mm) can be easily installed and directly installed on the work panel;
Action force: 260gf;
Rated capacity: 5-24VDC, 1-50mA;
Insulation voltage: 30VDC;
Contact configuration: 1 Normally open;
Contact resistance: 100mΩ or less (initial value: DC5V1mA power);
Insulation resistance: 100mΩ or more (DC250V);
Withstand voltage: 500VAC, 50/60Hz1min;
Bounce time: 5ms or less;
Vibration malfunction: 10-55Hz, complex amplitude 1.5mm;
Impact:
Durability: more than 1000m/s2 ant about 100g or more;
Malfunction: 100m/s2 or more and ant10g or more;
Life: more than 1 million times;
Use ambient temperature: -25 °C to 70 °C (in the absence of ice);

Package included:

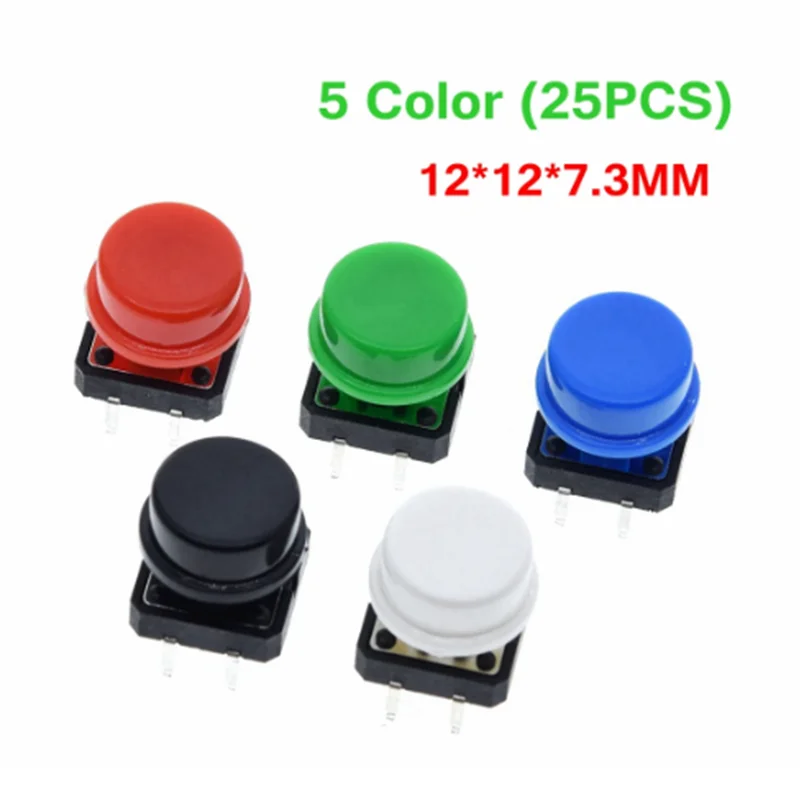

25PCS Tactile Push Button Switch (12*12*7.3mm)

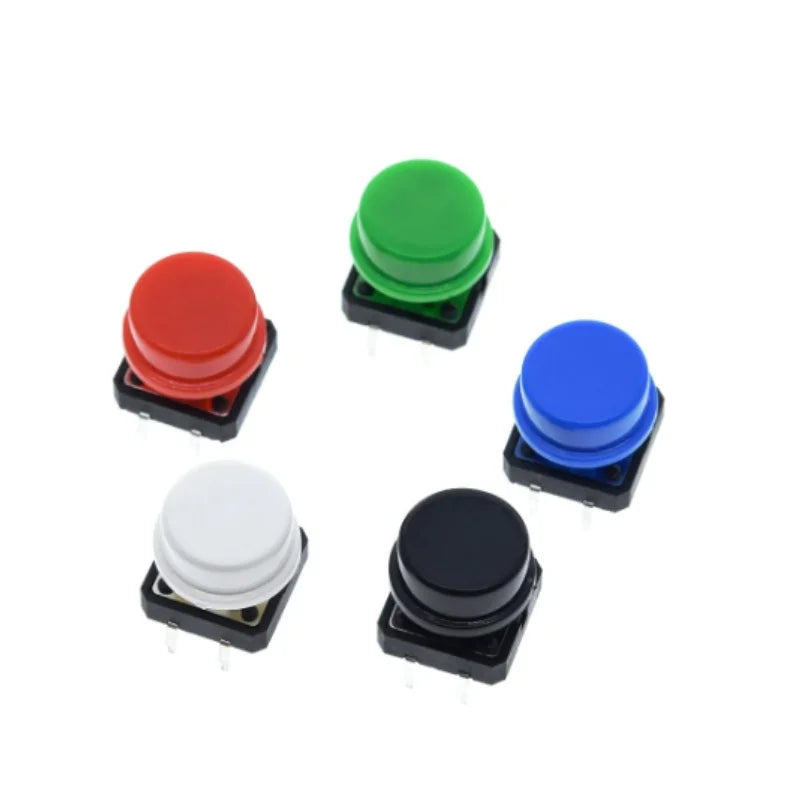

25PCS Tact Cap (Red black white blue yellow) Each color 5pcs

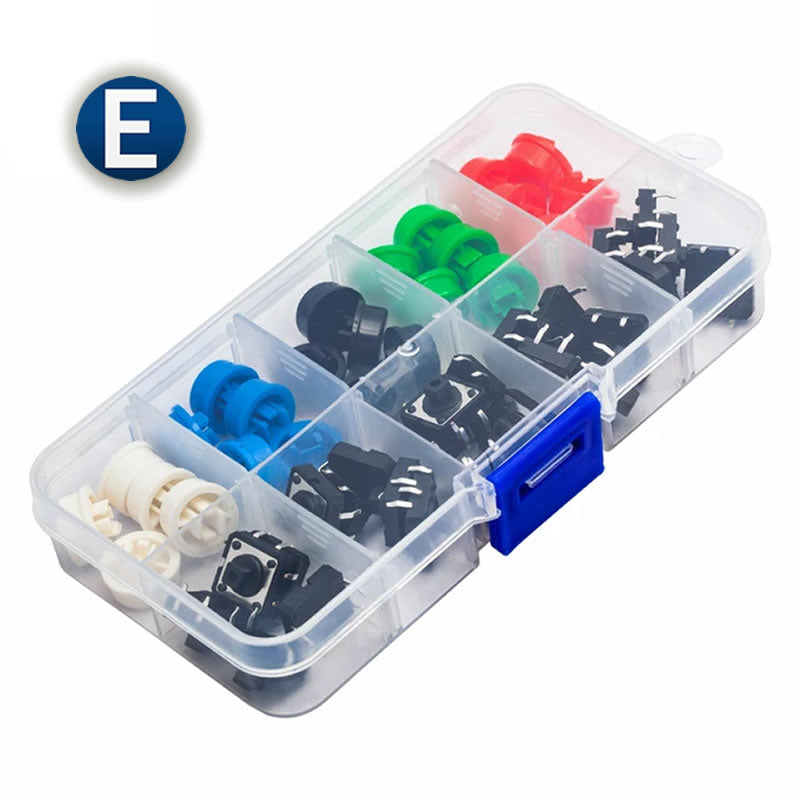

1 x plastic box
