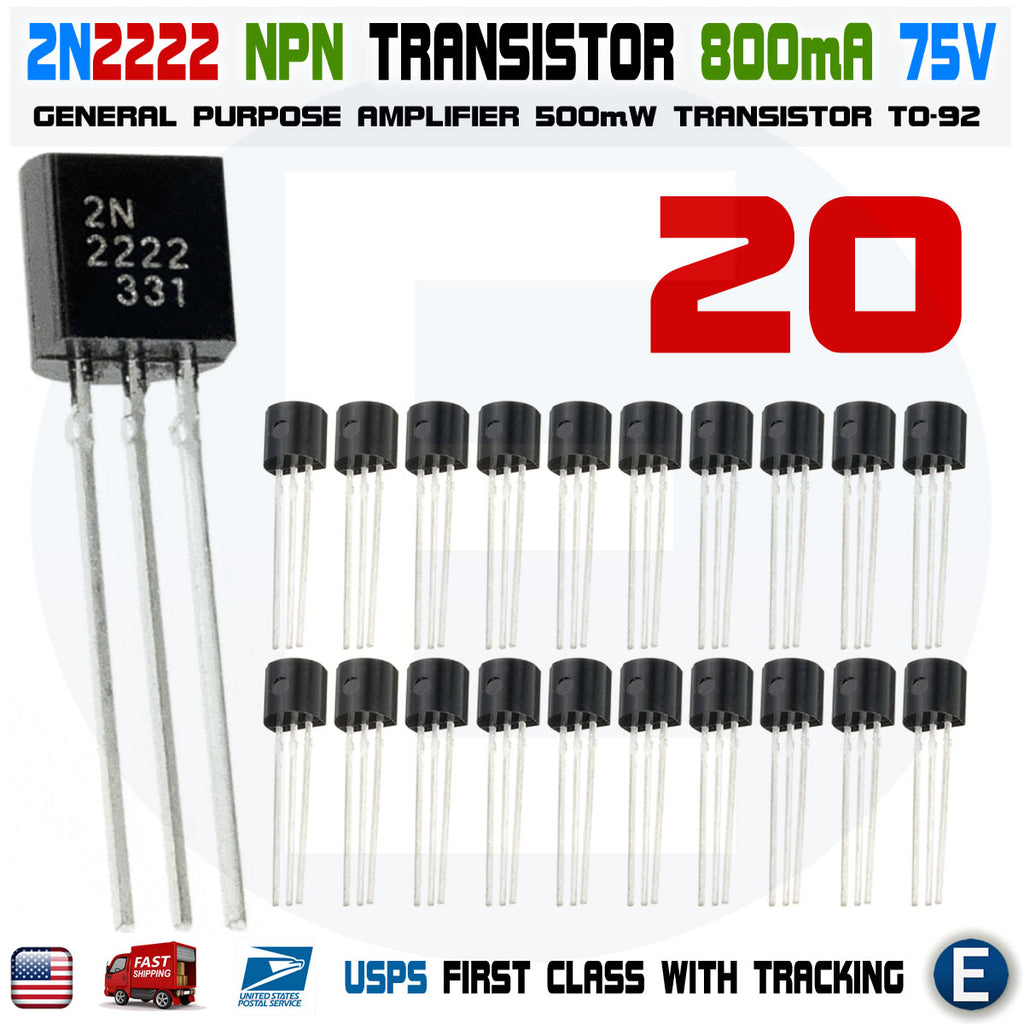

20pcs 2N2222A NPN 2N2222 TO-92 Plastic-Encapsulate Power Transistors 75V 0.8A

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Transistors
NPN Bipolar Junction Transistor Repackaged from bulkTO-92 Case (EBC)Collector-base voltage(max): 75VCollector-emitter voltage(max): 40VEmitter-base voltage(max): 6VCollector current(max): 600mADC ...
  customers are viewing this product
NPN Bipolar Junction Transistor

Repackaged from bulk
TO-92 Case (EBC)

Collector-base voltage(max): 75V
Collector-emitter voltage(max): 40V
Emitter-base voltage(max): 6V
Collector current(max): 600mA
DC current gain (hFE): 30-300
Current-Gain-Bandwidth Product (fT): >300MHz
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.5
Maximum collector-base voltage |Ucb|, V: 60
Maximum collector-emitter voltage |Uce|, V: 30
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.8
Maximum temp. (Tj), °C: 175
Transition frequency (ft), MHz: 250
Collector capacitance (Cc), pF: 8
Forward current transfer ratio (hFE), min: 100

Package include:
20pcs  2N2222 TO-92 Plastic-Encapsulate Power Transistors
