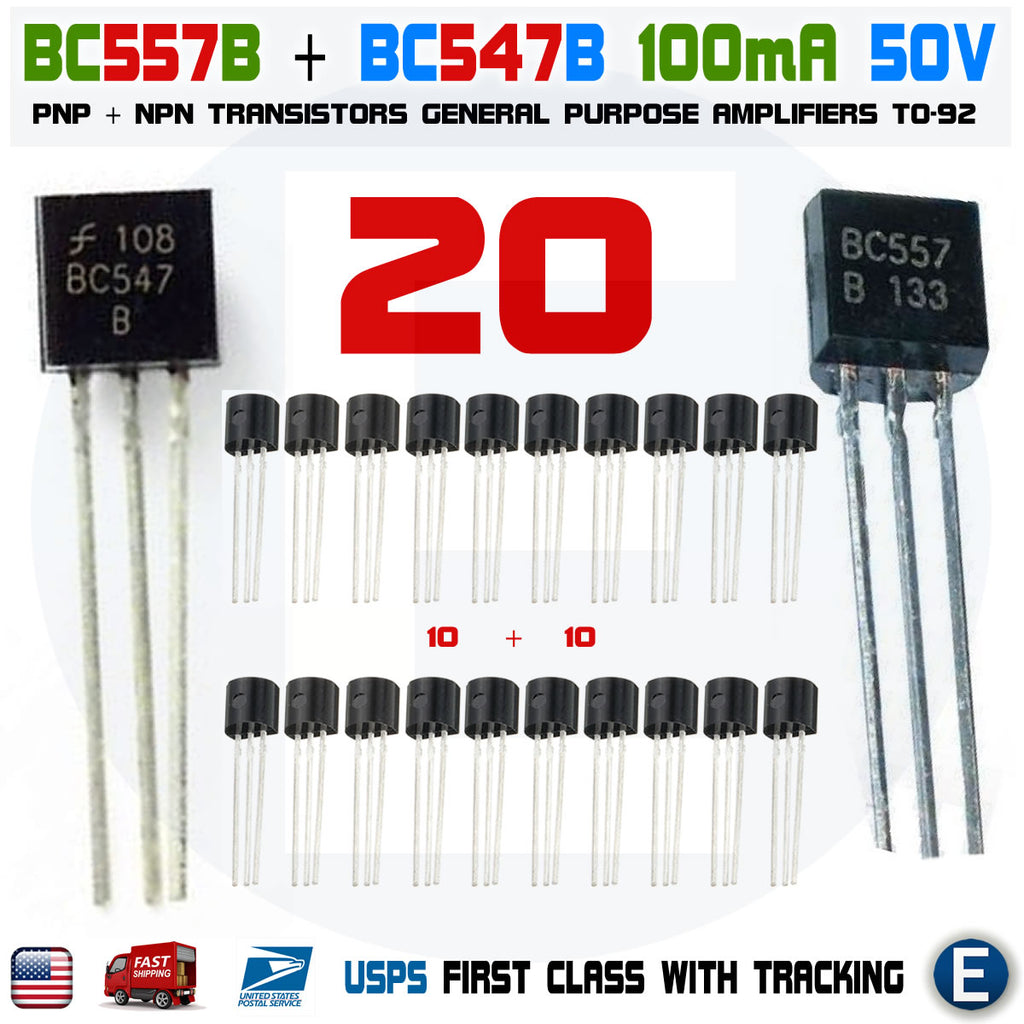

20pcs 10 x BC557B BC557 10 x BC547B BC547 Pairs Transistors NPN PNP TO-92

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Transistors
Fairchild
BC557B For Switching and Amplifier Designs Complement to BC547 Low current (max. 100 mA) Low voltage (max. 65V)   Configuration: Single Transistor Polarity: PNP Collector- Base Voltage VCBO: - 50 ...
$3.23
$3.23
  customers are viewing this product

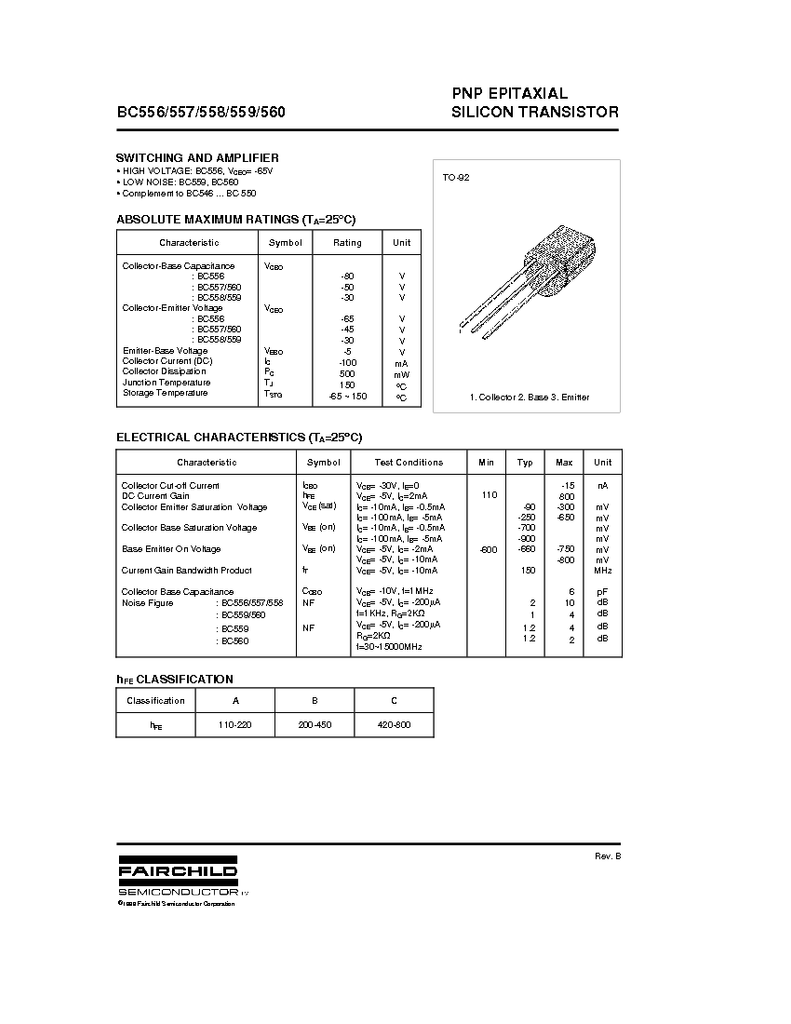

BC557B
For Switching and Amplifier Designs
Complement to BC547
Low current (max. 100 mA)
Low voltage (max. 65V)

Configuration: Single
Transistor Polarity: PNP
Collector- Base Voltage VCBO: - 50 V
Collector- Emitter Voltage VCEO Max: - 45 V
Emitter- Base Voltage VEBO: - 5 V
Collector-Emitter Saturation Voltage: - 250 mV
Maximum DC Collector Current: - 0.1 A
Gain Bandwidth Product fT: 150 MHz
Maximum Operating Temperature: + 150 C
Mounting Style: Through Hole
Package / Case: TO-92
DC Collector/Base Gain hfe Min: 110
DC Current Gain hFE Max: 800
Maximum Power Dissipation: 0.5 W
Minimum Operating Temperature: - 65 C

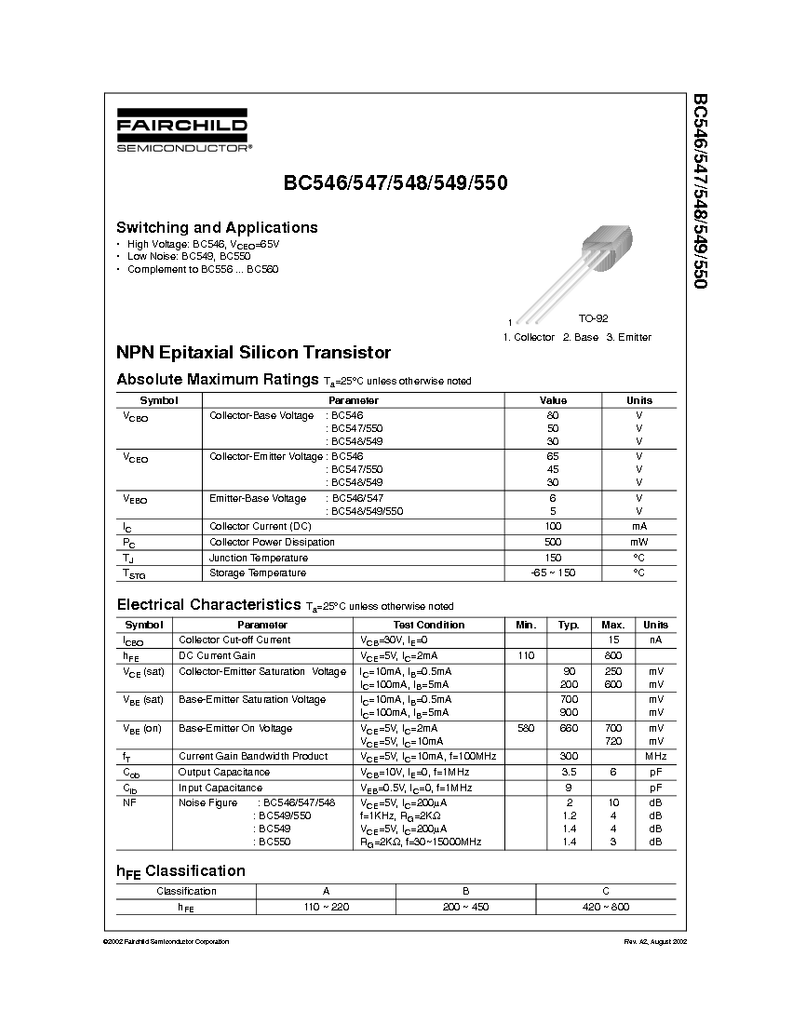

BC547B
For Switching and Amplifier Designs
Complement to BC557

Configuration: Single
Transistor Polarity: NPN
Collector- Base Voltage VCBO: 50 V
Collector- Emitter Voltage VCEO Max: 45 V
Emitter- Base Voltage VEBO: 6 V
Collector-Emitter Saturation Voltage: 250 mV
Maximum DC Collector Current: 0.1 A
Gain Bandwidth Product fT: 300 MHz
Maximum Operating Temperature: + 150 C
Mounting Style: Through Hole
Package / Case: TO-92-3
DC Collector/Base Gain hfe Min: 110
DC Current Gain hFE Max: 800
Maximum Power Dissipation: 0.5 W
Minimum Operating Temperature: - 65 C


Package Included:
20pcs 10 x BC557B BC557 10 x BC547B BC547 Pairs Transistors NPN PNP TO-92
