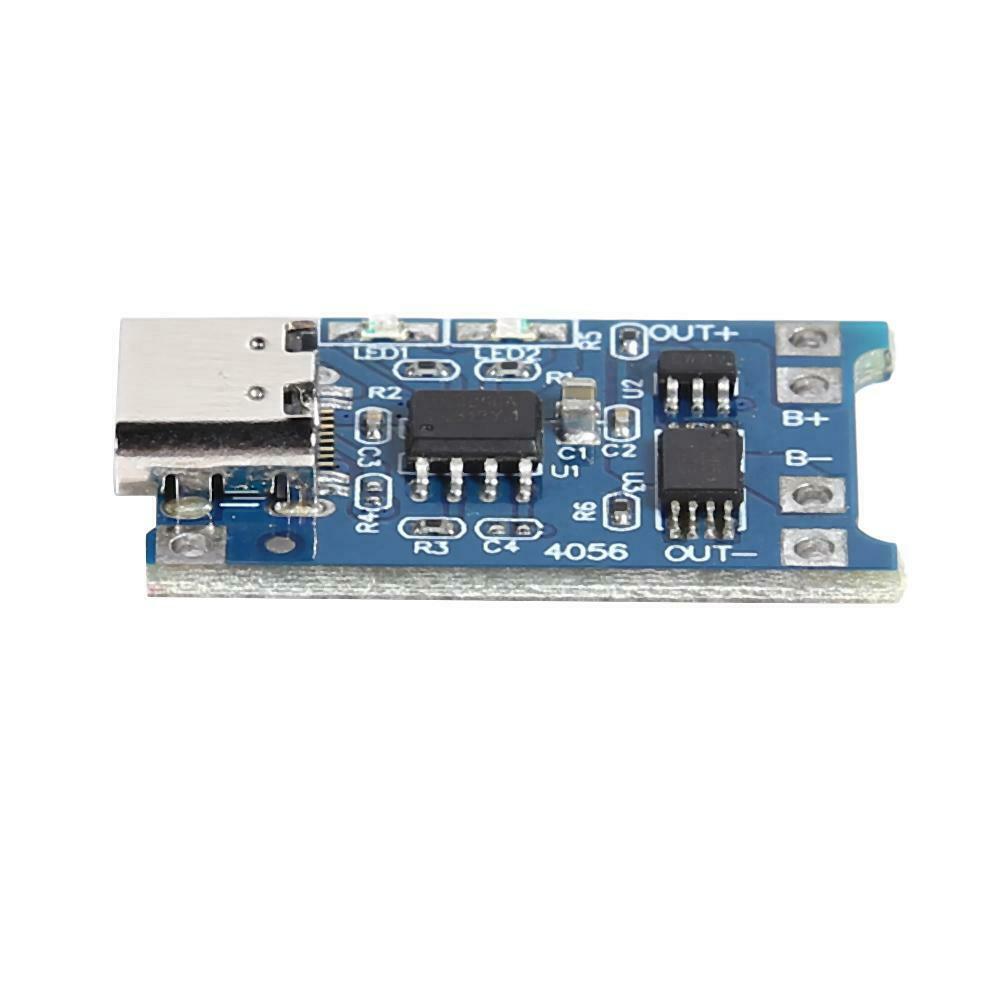

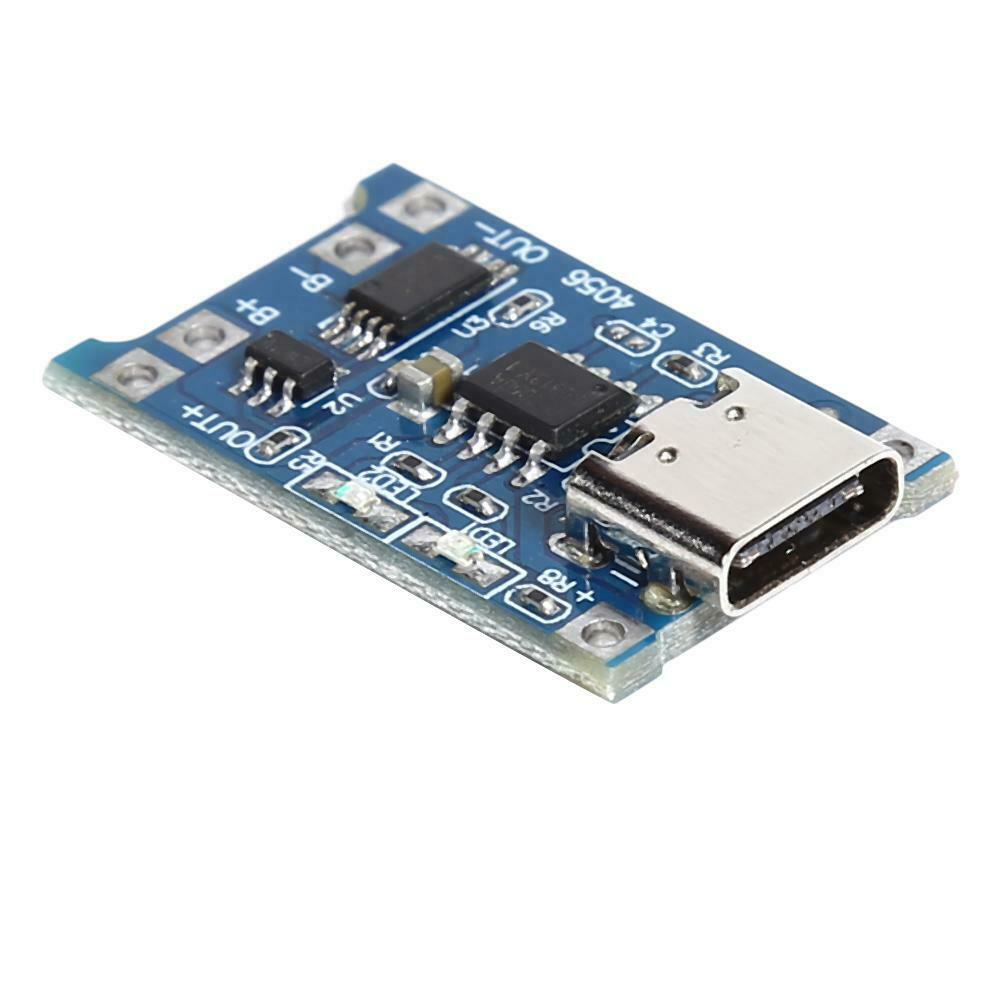

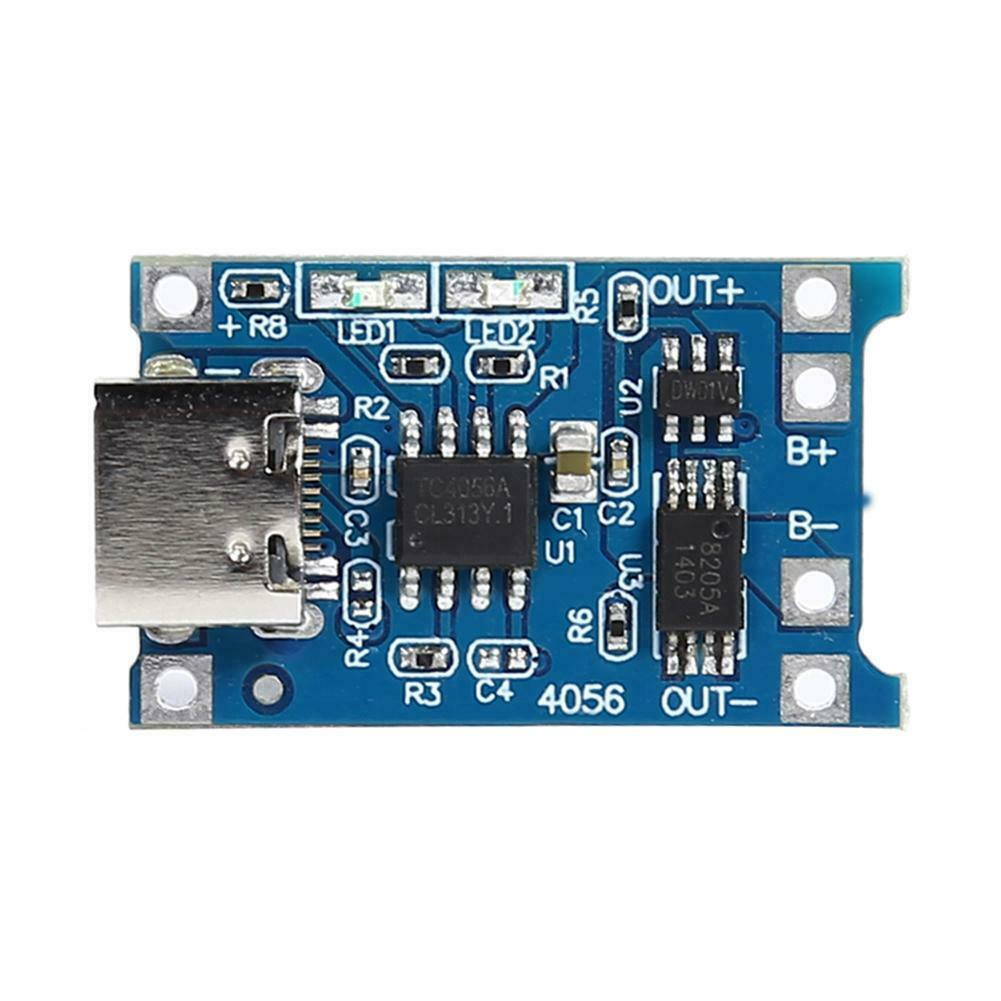

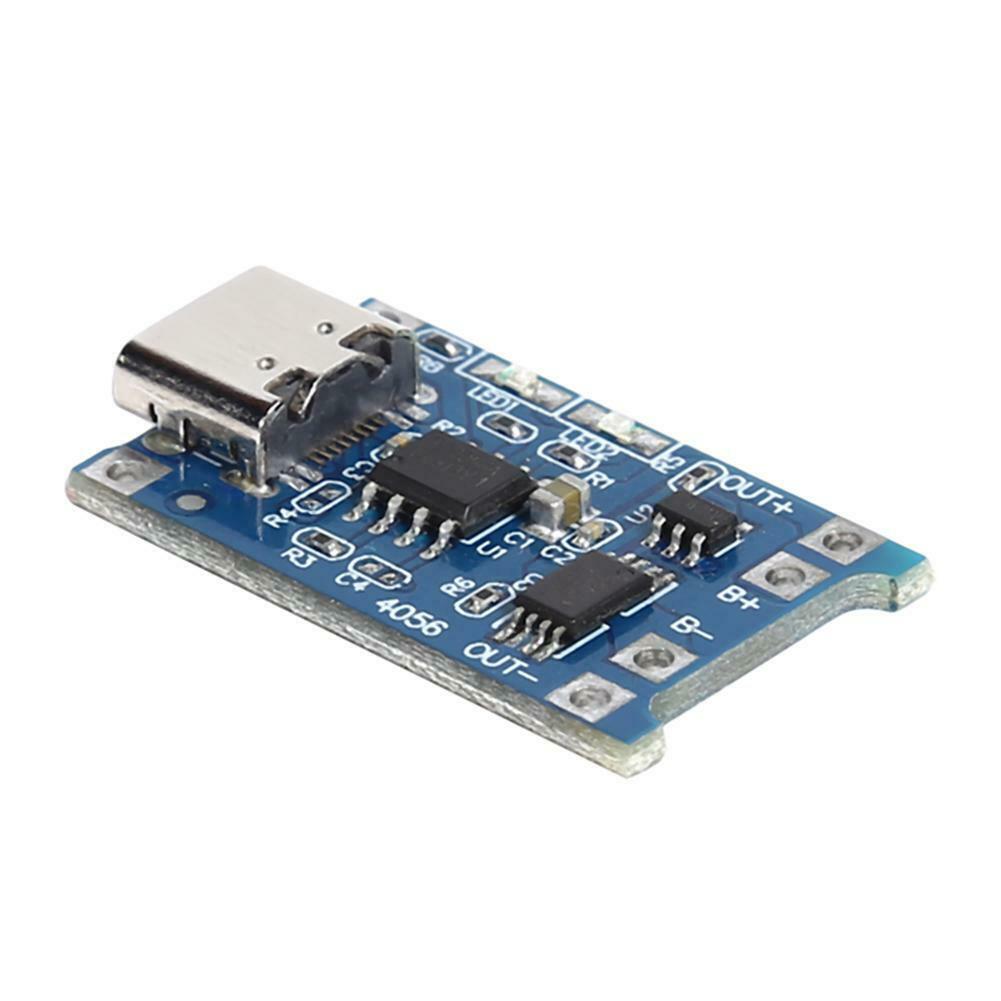

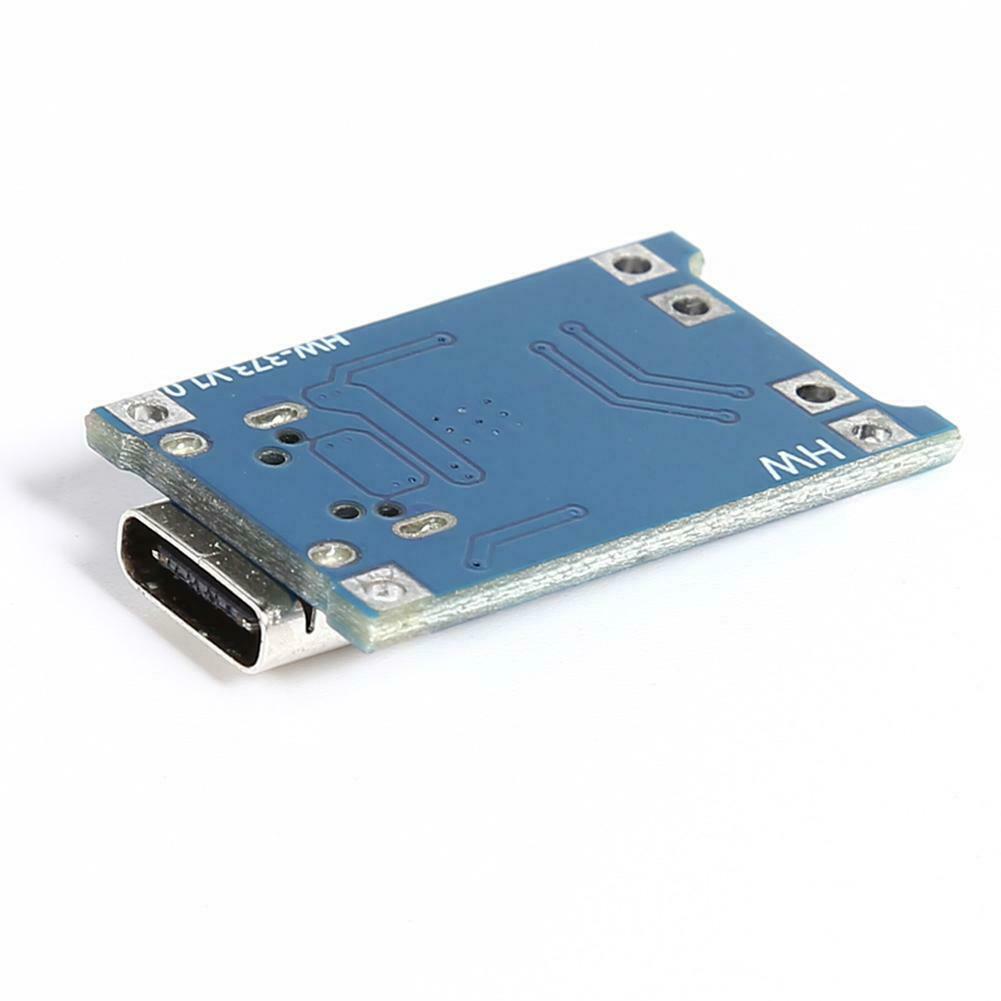

10pcs TP4056 Type-C USB 5V 1A 18650 Lithium Battery Charging Dual Protection DW01A

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Power Regulators & Converters
Description:Charge module - Linear charging.It has TYPE-C USB femaleIt still retain the input voltage wiring solder joints, can be very convenient to DIY Specifications:Current- 1A adjustable.Char...
$8.63
$8.63
  customers are viewing this product

Description:
Charge module - Linear charging.
It has TYPE-C USB female
It still retain the input voltage wiring solder joints, can be very convenient to DIY

Specifications:
Current- 1A adjustable.
Charge precision- 1.5%.
Input voltage- 4.5V-5.5V.
Full charge voltage- 4.2V.
Led indicator- red is charging green is full charged.
Input interface- micro USB.
Work temperature- -10℃ to +85℃.
Inverted polarity- NO.
Size: 27mm X 17mm.
1 x 18650 batteries (6000 mAh) you can charge with this charger in parallel at the same time

Operation Manual:
1. Type-c female base and the power input end of + ~ welding pad position next to it, connect to 5V input voltage.
2. B+ is connected to the positive electrode of lithium battery, and B~ is connected to the negative electrode of lithium battery. OUT+ OUT connect loads, such as set-up board.
3. Connect the battery to B+ B-, insert the phone charger to USB, the blue light is on, indicating that there is a power supply, the red light flashes, indicating that it is charging. When the charge is full, the red light stops flashing and turns into a regular light.
4. OUT+ OUT- terminated can be load. After load on, the red light is always on. When there is a power supply at the input end, obtain current from the output end of the power supply. If there is no power supply, obtain current from the battery. When the battery voltage is lower than 2.5v, automatically close the output.

NOTE:
Only one 18650 batteries (6000 mAh) you can charge with this charger in parallel at the same time
1. Ampere meter can only be connected to 5v input end of the module.
2. It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.
3. The connection wire should not be too thick.
4. Make sure the connect point is good.
5. If the input voltage is too high, like 5.2v, the current will be less than 1000 mA, it is normal. It is protection function, auto-subtract the charging current to avoid burn damage to chip.
6. NO Reversal polarity.

Package Included:
10pcs TP4056 Type-C USB 5V 1A 18650 Lithium Battery Charging Dual Protection DW01A
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
