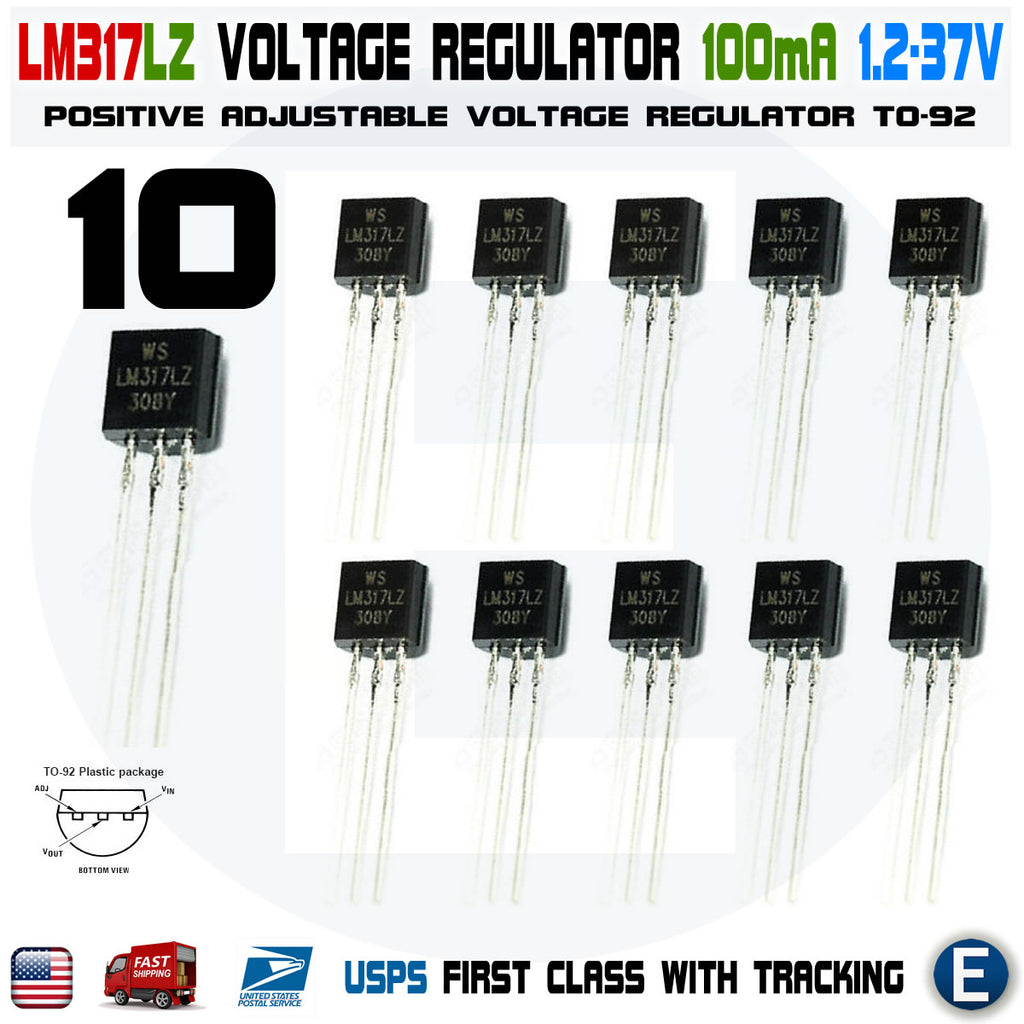

10pcs LM317LZ LM317L LM317 0.1A TO-92 Voltage Regulator Adjustable 1.2-37V

In stock
The LM317 are adjustable 3-terminal positive-voltage regulators capable of supplying 100mA over a differential voltage range of 3V to 37V. They are exceptionally easy to use and require only two ex...
$2.23
$2.23
  customers are viewing this product

The LM317 are adjustable 3-terminal positive-voltage regulators capable of supplying 100mA over a differential voltage range of 3V to 37V. They are exceptionally easy to use and require only two external resistors to set the output voltage. Both input and output regulation is better than standard fixed regulators. In addition to higher performance than fixed regulators, these regulators offer full overload protection available only in integrated circuits. Included on the chip are current limit, thermal overload protection, and safe-area protection. All overload protection circuit remains fully functional even if the adjustment terminal is disconnected. Normally, no capacitors are needed unless the device is situated far from the input filter capacitors in which case an input bypass is needed. An optional output capacitor can be added to improve transient response. The primary applications of each of these regulators is that of a programmable output.

Manufacturer Part No: LM317LZ
RoHS Compliance : Yes
Package/Case: TO-92

Adjustable Linear Voltage Regulator IC
Output Voltage Range Adjustable from 1.2 V to 37V
Output Current Capability of 100mA Max
Input Regulation Typically 0.01% Per Input-Volt Change
Output Regulation Typically 0.1%
Peak Output Current Constant over Temperature Range of Regulator
Popular 3-Lead TO-92 Package
Ripple Rejection Typically 80 dB

Package Included:
10 x LM317LZ LM317L LM317 0.1A TO-92 Voltage Regulator 1.2-37V
