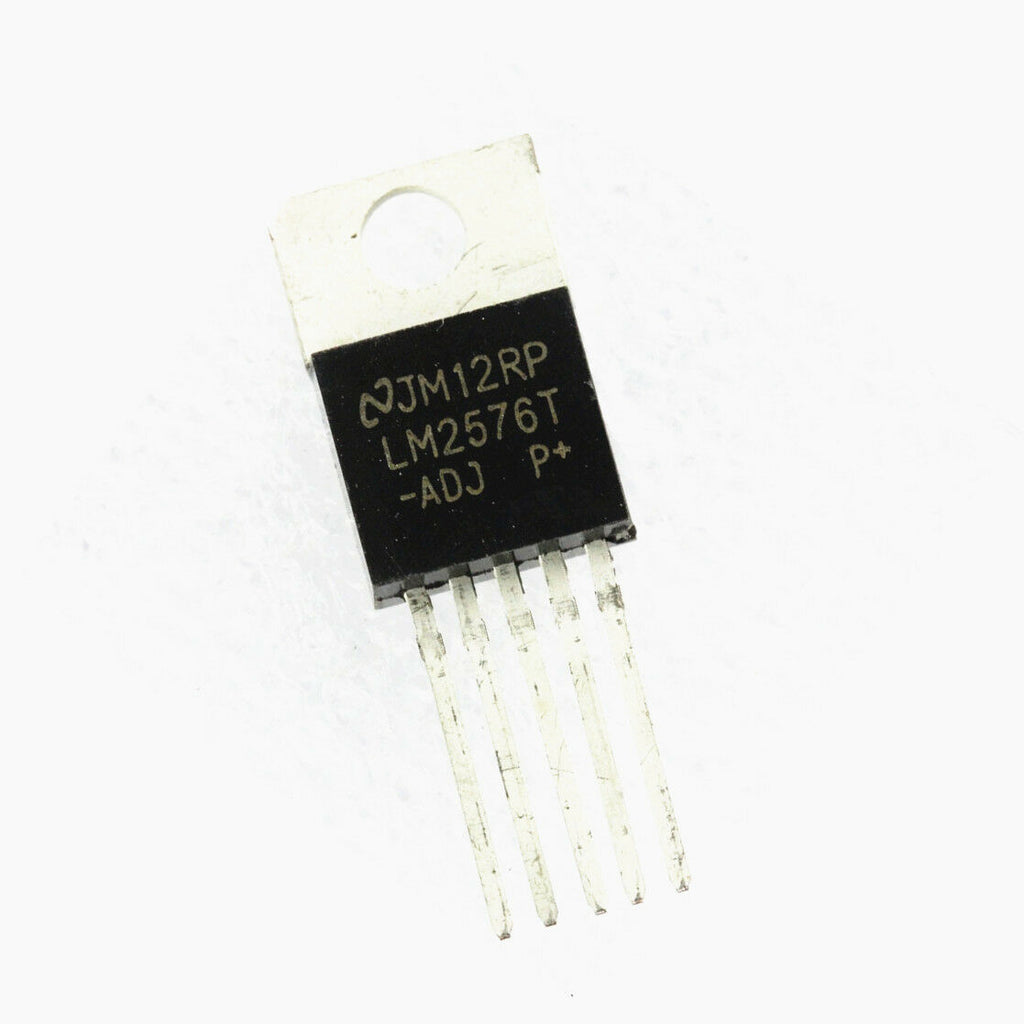

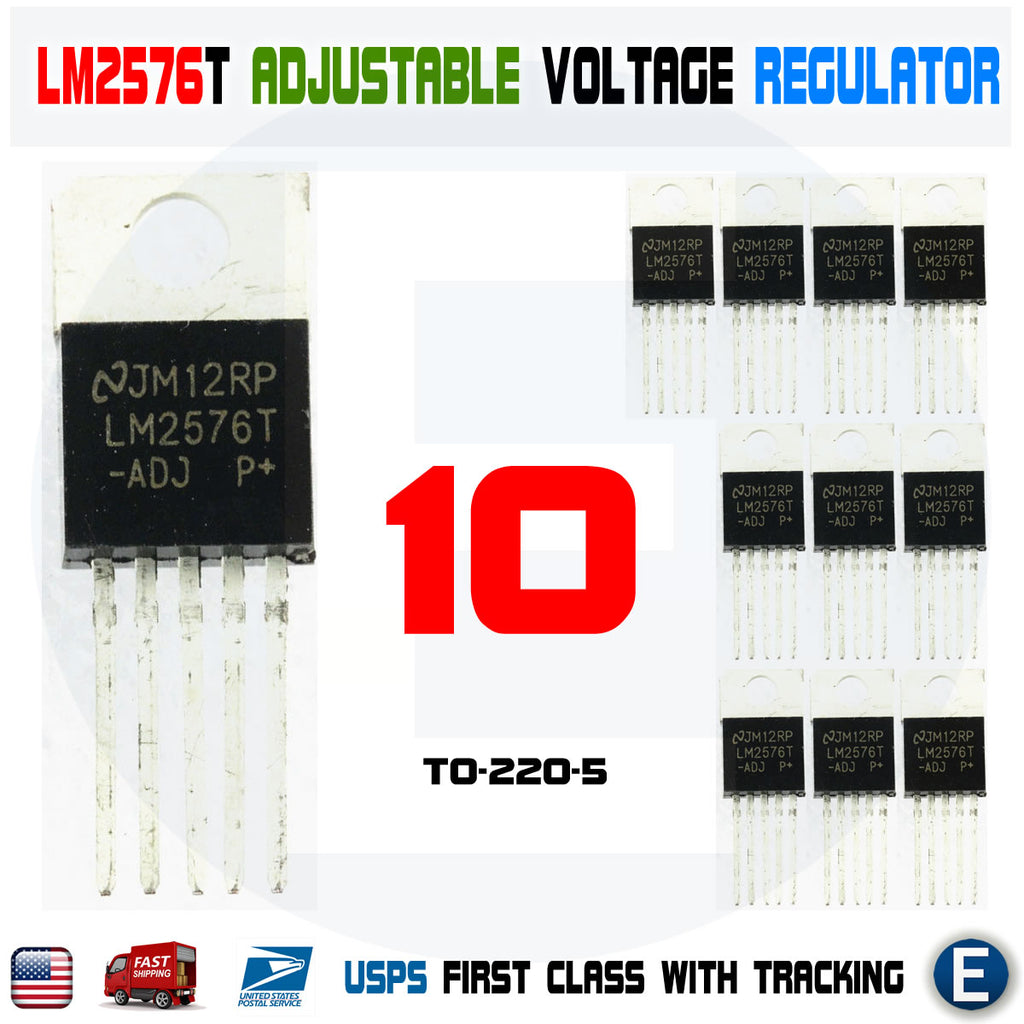

10pcs LM2576T-ADJ LM2576 IC Adjustable Voltage Switching Regulator Step Down 1.23V - 37V

In stock
The LM2576T-ADJ is an adjustable output SIMPLE SWITCHER step down voltage regulator in 5 pin TO-220 package. This regulator is a monolithic integrated circuit that provides all active functions for...
$8.63
$8.63
  customers are viewing this product

The LM2576T-ADJ is an adjustable output SIMPLE SWITCHER step down voltage regulator in 5 pin TO-220 package. This regulator is a monolithic integrated circuit that provides all active functions for a step down (buck) switching regulator. This regulator requires a minimum number of external components and features internal frequency compensation, fixed frequency oscillator. The LM2576 offers high efficiency replacement for popular three terminal linear regulators. It substantially reduces size of heat sink and in some cases no heat sink is required. A standard series of inductors are optimized for use with LM2576 step down regulator. This feature greatly simplifies the design of switch mode power supplies. External shut down featuring 50µA (typical) standby current.

- Adjustable output voltage from 1.23V to 37V
- 3A output current
- Wide input voltage range from 4V to 40V
- Requires only 4 external components
- 52KHz fixed frequency internal oscillator
- TTL shutdown capability and low power standby mode
- Excellent line and load regulation
- High efficiency up to 77%
- Thermal shutdown and current limit protection
- Operating temperature range -40°C to 125°C

Package Included:
10pcs LM2576T-ADJ LM2576 IC Adjustable Voltage Switching Regulator Step Down 1.23V - 37V
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
