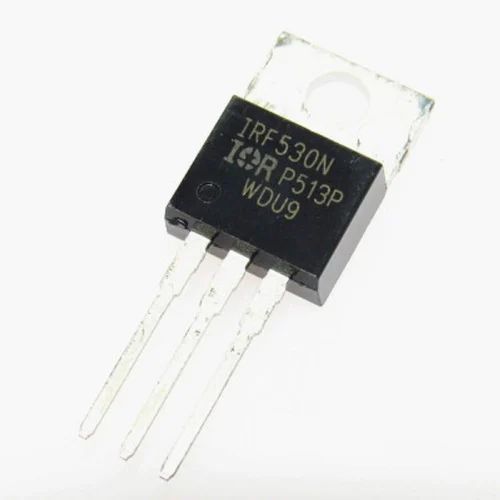

5pcs IRF530N Power MOSFET N-Channel 17A 100V Transistor IRF530 TO-220

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Transistors
IR
IRF530N-10
IRF530N is a powerful N-channel MOSFET transistor for high-power applications. Maximum drain current: 17 amperes. Low on-resistance: 0.16 ohms for efficient power handling. Drain-source voltage rat...
$9.89
$9.89
  customers are viewing this product

IRF530N is a powerful N-channel MOSFET transistor for high-power applications.
Maximum drain current: 17 amperes.
Low on-resistance: 0.16 ohms for efficient power handling.
Drain-source voltage rating: 100 volts for versatile voltage applications.
TO-220 package for easy installation and integration.
Low thermal resistance: 1.1°C/W for effective heat dissipation.
Fast switching speeds and low gate-to-source charge for improved performance.
Gate threshold voltage (VGS(th)): 2-4 volts for compatibility with different control circuits.
Ideal for power supplies, motor control circuits, audio amplifiers, and more.
Robust construction ensures reliability and durability.

Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 70 W
Maximum Drain-Source Voltage 'Vds': 100 V
Maximum Gate-Source Voltage 'Vgs': 20 V
Maximum Gate-Threshold Voltage 'Vgs(th)': 4 V
Maximum Drain Current 'Id': 17 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 37(max) nC
Rise Time (tr): 22 nS
Drain-Source Capacitance (Cd): 130 pF
Maximum Drain-Source On-State Resistance (Rds): 0.09 Ohm
Package: TO220

Package Included:

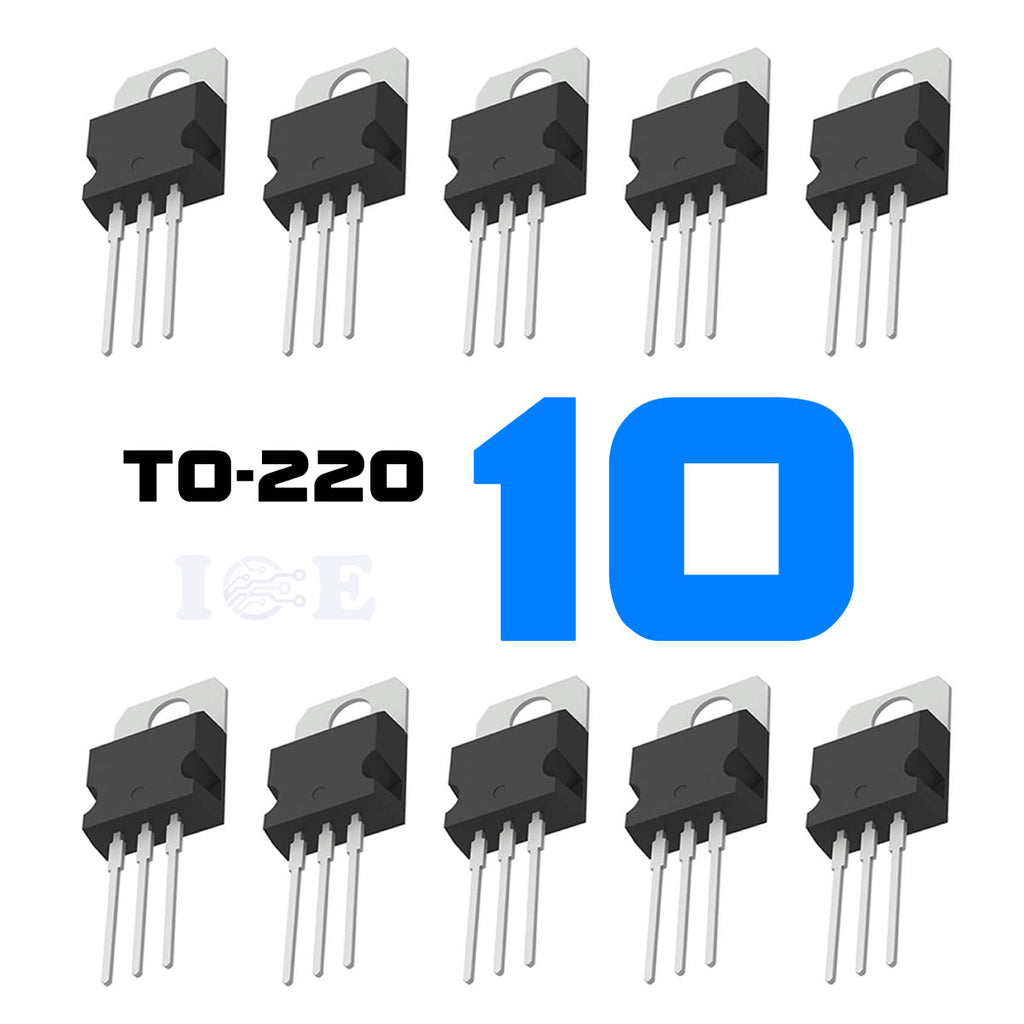

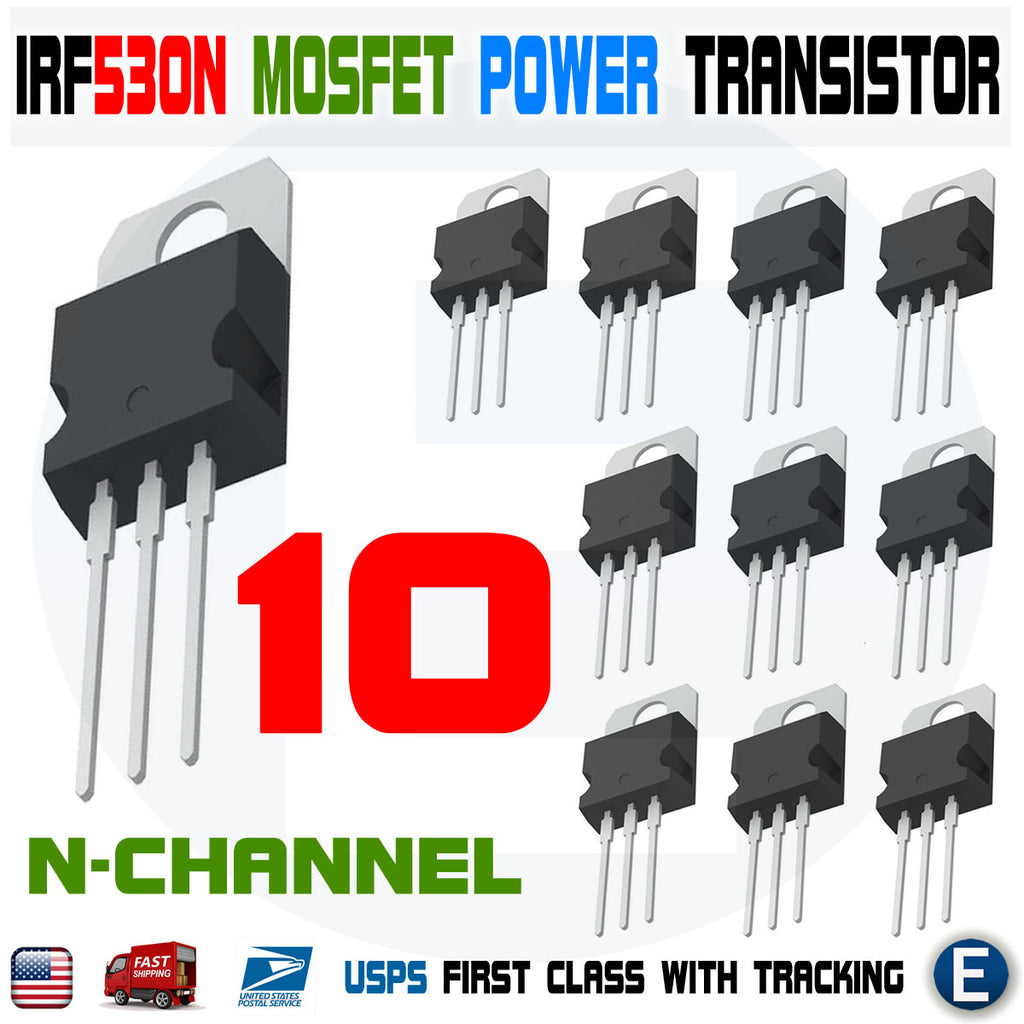

10pcs IRF530N Power MOSFET N-Channel 17A 100V Transistor IRF530 TO-220
