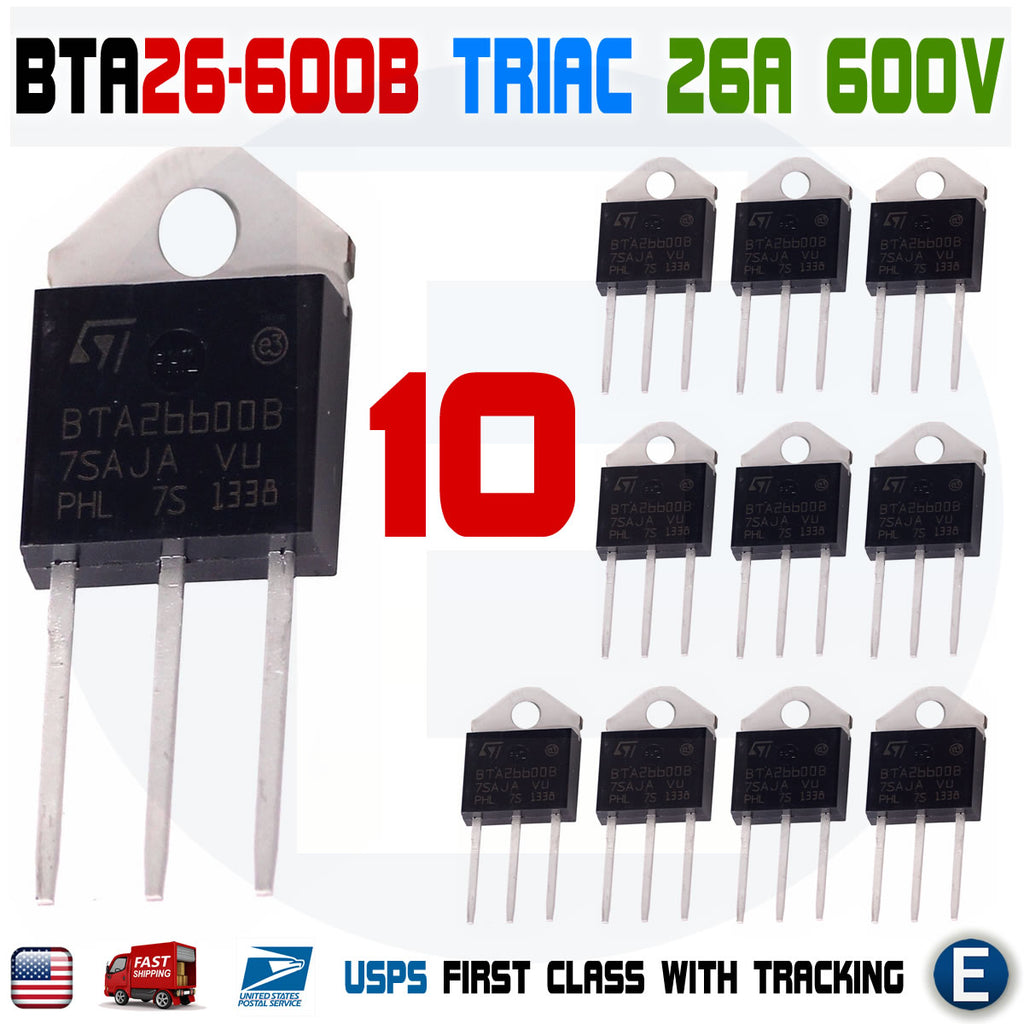

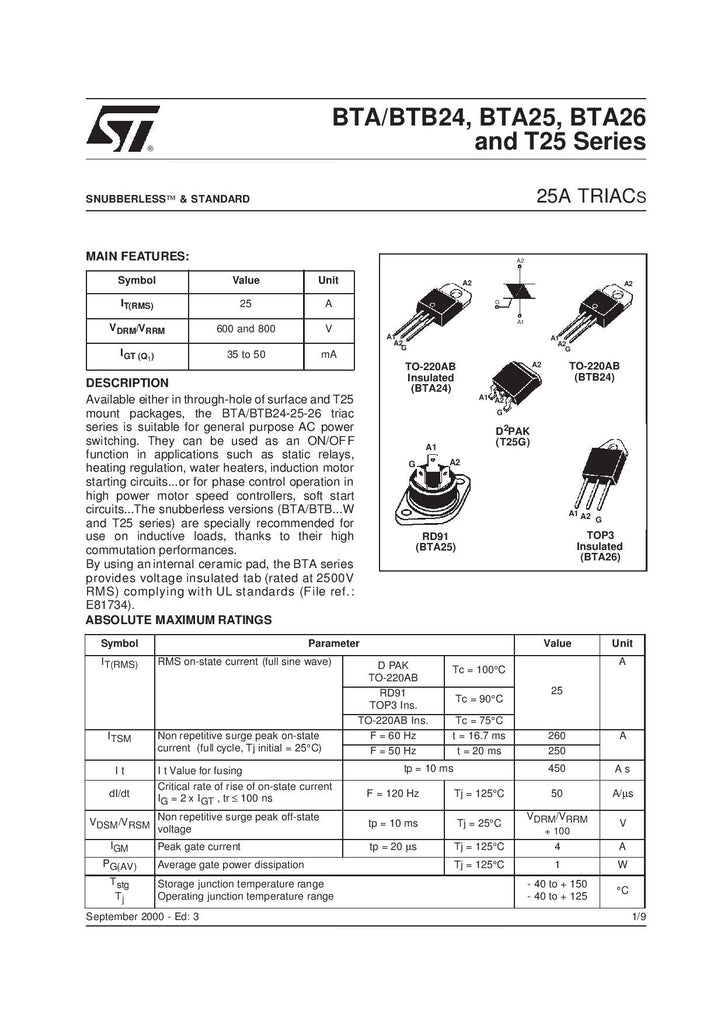

10Pcs BTA26-600B Triac ST MICRO Thyristor BTA26600B STM 26A 600V TOP-3L
Features■ High current triac■ Low thermal resistance with clip bonding■ High commutation (4 quadrant) or very highcommutation (3 quadrant) capability■ BTA series UL1557 certified (File ref: 81734)■...
$8.98
customers are viewing this product
Features
■ High current triac
■ Low thermal resistance with clip bonding
■ High commutation (4 quadrant) or very high
commutation (3 quadrant) capability
■ BTA series UL1557 certified (File ref: 81734)
■ Packages are RoHS (2002/95/EC) compliant
Peak Repetitive Off-State Voltage, Vdrm:600V
On State RMS Current, IT(rms):25A
Gate Trigger Current (QI), Igt:50mA
Current, It av:26A
Gate Trigger Current Max, Igt:35mA
Applications
Applications include the ON/OFF function in
applications such as static relays, heating
regulation, induction motor starting circuits, etc.,
or for phase control operation in light dimmers,
motor speed controllers, and silmilar.
The snubberless versions (BTA/BTB...W and T25
series) are especially recommended for use on
inductive loads, due to their high commutation
performances. The BTA series provides an
insulated tab (rated at 2500 VRMS).
Description
Available either in through-hole or surface-mount
packages, the BTA24, BTB24, BTA25, BTA26,
BTB26 and T25 triac series is suitable for general
purpose mains power AC switching.
| EU RoHS | Compliant with Exemption |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8541.30.00.80 |
| Maximum Rate of Rise of Off-State Voltage (V/us) | 500(Min) |
| Maximum Rate of Rise of On-State Current (A/us) | 50 |
| Maximum Gate Trigger Voltage (V) | 1.3 |
| Maximum Gate Trigger Current (mA) | 100 |
| Surge Current Rating (A) | 260 |
| Maximum Holding Current (mA) | 80 |
| Repetitive Peak Reverse Voltage (V) | 600 |
| Peak On-State Voltage (V) | 1.55@35A |
| Repetitive Peak Forward Blocking Voltage (V) | 600 |
| RMS On-State Current (A) | 25 |
| Repetitive Peak Off-State Current (mA) | 0.005 |
| Average Gate Power Dissipation (W) | 1 |
| Circuit Fusing Consideration (A²S) | 340 |
| AC Switch | No |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Packaging | Tube |
| Automotive | No |
| Pin Count | 3 |
| Supplier Package | TOP Insulated |
| Standard Package Name | TOP |
| Military | No |
| Mounting | Through Hole |
| Package Height | 12.85(Max) |
| Package Length | 15.5(Max) |
| Package Width | 4.6(Max) |
| PCB changed | 3 |
Package Included:
10Pcs BTA26-600B Triac ST MICRO Thyristor BTA26600B Stm TOP-3L
