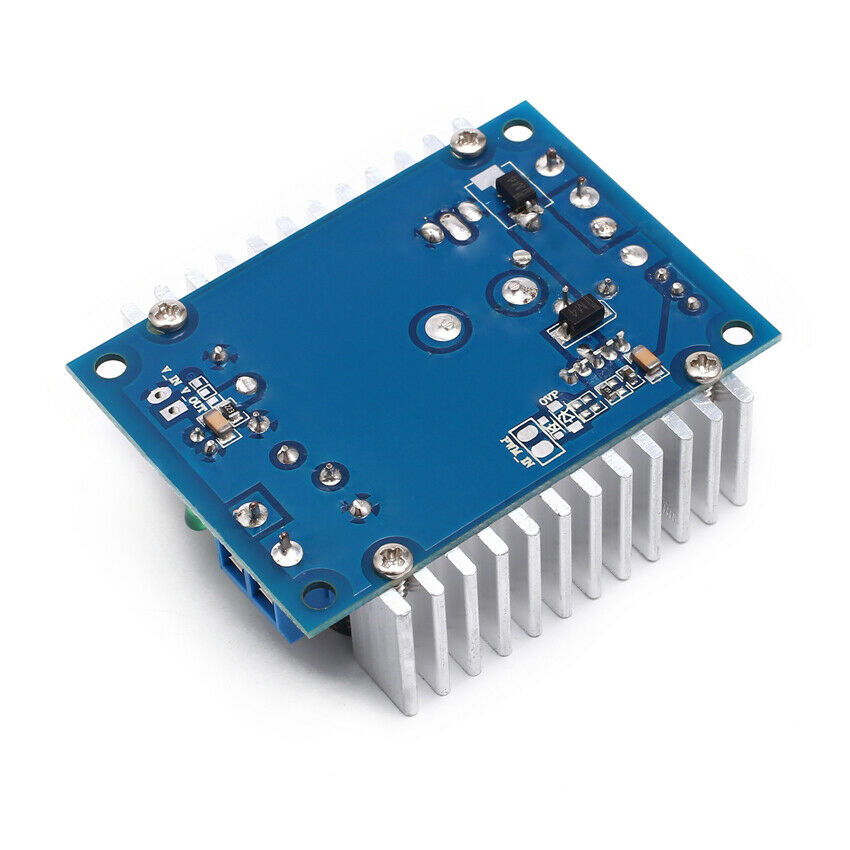

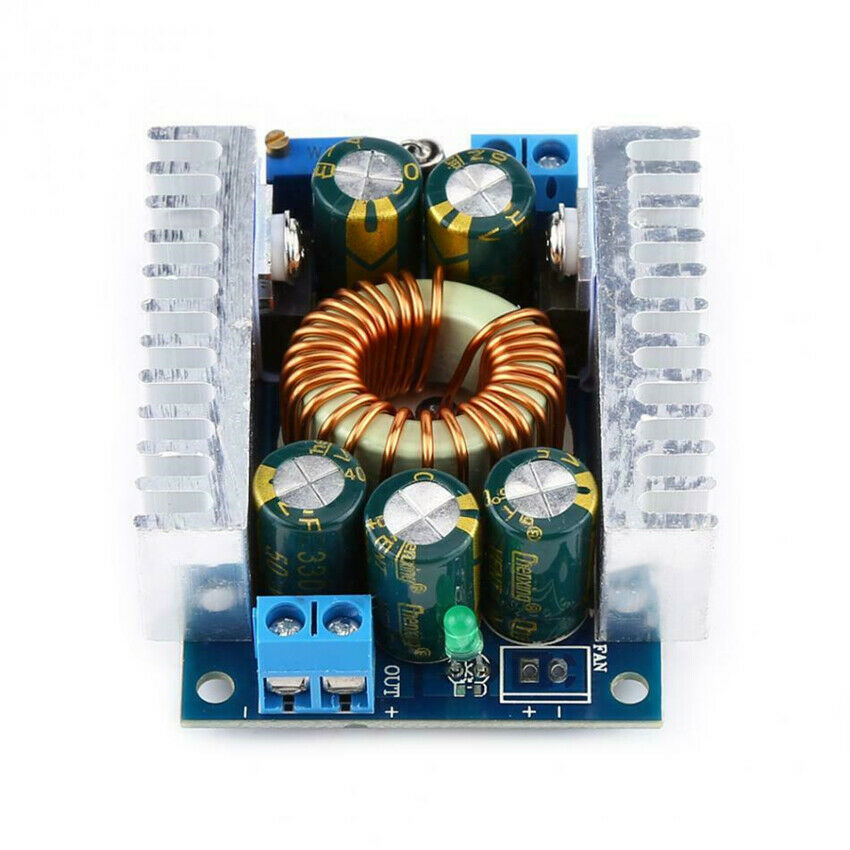

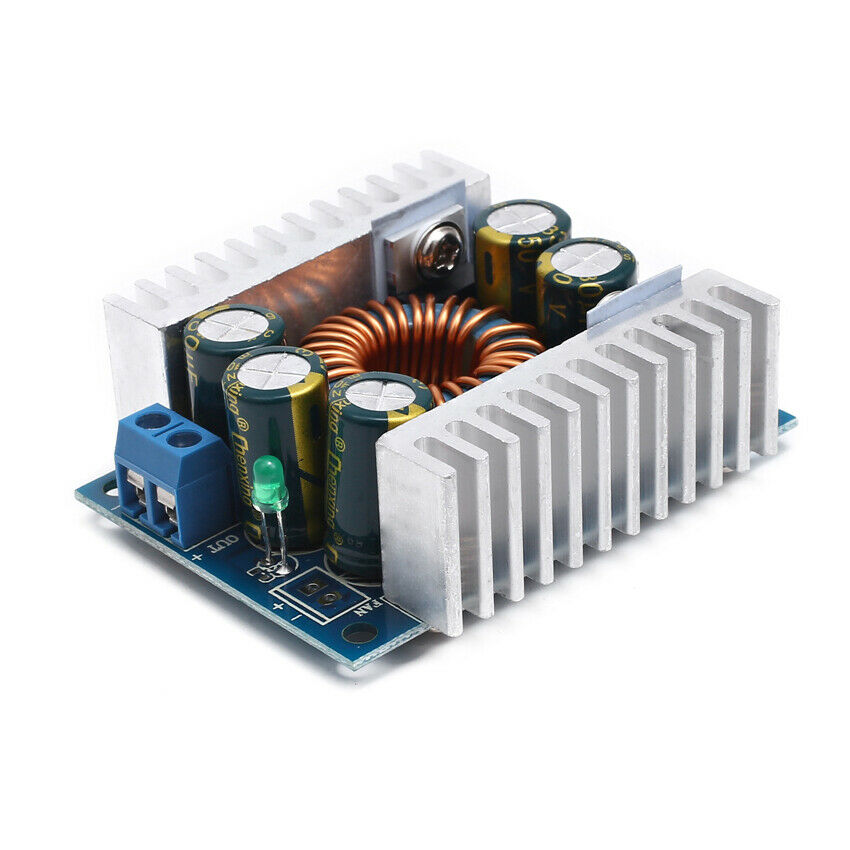

100W DC-DC High Power Low Ripple 12A Adjustable Step-Down Buck Supply Converter

Out of stock
B-02-06-01
Features: Used in situation where input voltage is higher than output voltage. Suitable for storage battery, power transformer, DIY adjustable regulated power supply, 24V car power, car LED power, ...
$7.63
  customers are viewing this product

Features:
Used in situation where input voltage is higher than output voltage.
Suitable for storage battery, power transformer, DIY adjustable regulated power supply, 24V car power, car LED power, etc.
Professional 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V voltage step-down.

Specifications:
Module Type: BUCK
Input Voltage: 5-30V(Max.30V)
Output Voltage: 1.25-30V adjustable (5V default)
Output Current: Max 12A (rated 8A, max 12A 100W, 200W with enhanced cooling)
Work Temperature: -40 - 85°C
Working frequency : 300KHz
Short Circuit Protection: Yes (12A limited)
Over Temperature Protection: Yes
Reverse Input Protection: No (connect diode if needed)
Installation: 4 X 3 mm screws
Wiring: Connect wire terminals, no welding needed, V-IN as input, V-OUT as output
Module Size: approx. 60 X 51 X 22/2.36 X 2.01 X 0.87"

Package Included:
1 x DC-DC High Power Low Ripple 12A Adjustable Step-down Module Car Power Module
Instructions/schematics are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
