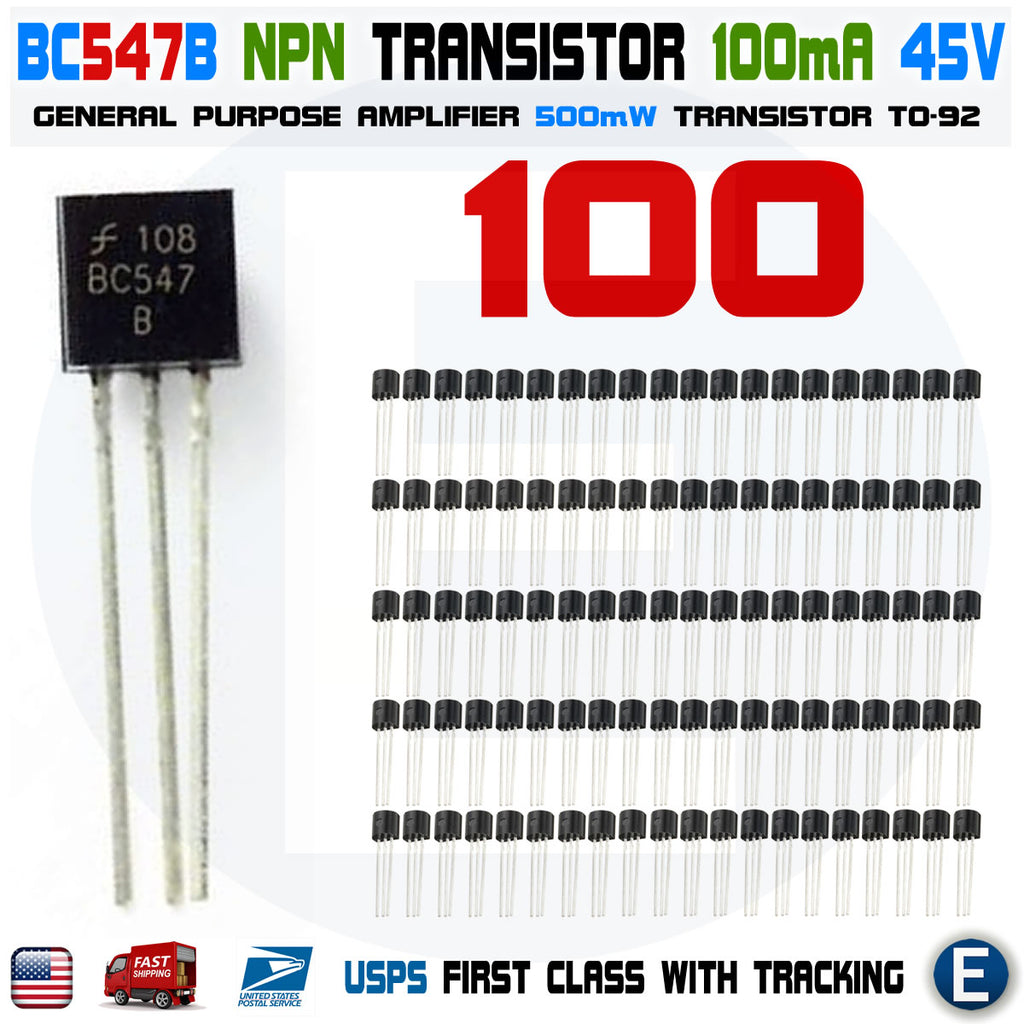

100 x BC547B BC547 Silicon NPN Transistors 45V 100mA 500mW Amplifier TO-92 USA

In stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Transistors
Fairchild
For Switching and Amplifier Designs Complement to BC557 Configuration: Single Transistor Polarity: NPN Collector- Base Voltage VCBO: 50 V Collector- Emitter Voltage VCEO Max: 45 V Emitter- Base V...
$8.63
$8.63
  customers are viewing this product
For Switching and Amplifier Designs
Complement to BC557

Configuration: Single
Transistor Polarity: NPN
Collector- Base Voltage VCBO: 50 V
Collector- Emitter Voltage VCEO Max: 45 V
Emitter- Base Voltage VEBO: 6 V
Collector-Emitter Saturation Voltage: 250 mV
Maximum DC Collector Current: 0.1 A
Gain Bandwidth Product fT: 300 MHz
Maximum Operating Temperature: + 150 C
Mounting Style: Through Hole
Package / Case: TO-92-3
DC Collector/Base Gain hfe Min: 110
DC Current Gain hFE Max: 800
Maximum Power Dissipation: 0.5 W
Minimum Operating Temperature: - 65 C

Package Included:

100 x BC547B Complementary Epitaxial Silicon NPN Transistors 45V 100mA 500mW Amplifier TO-92 Case
