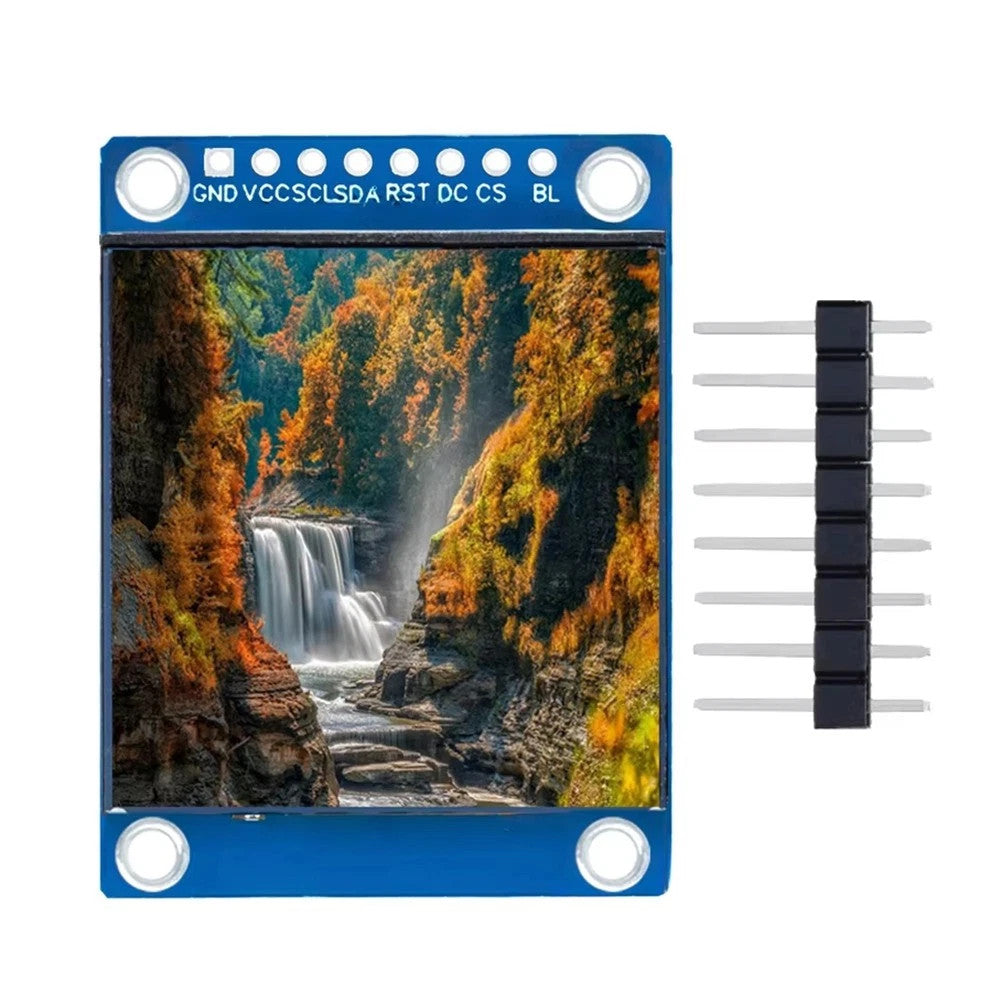

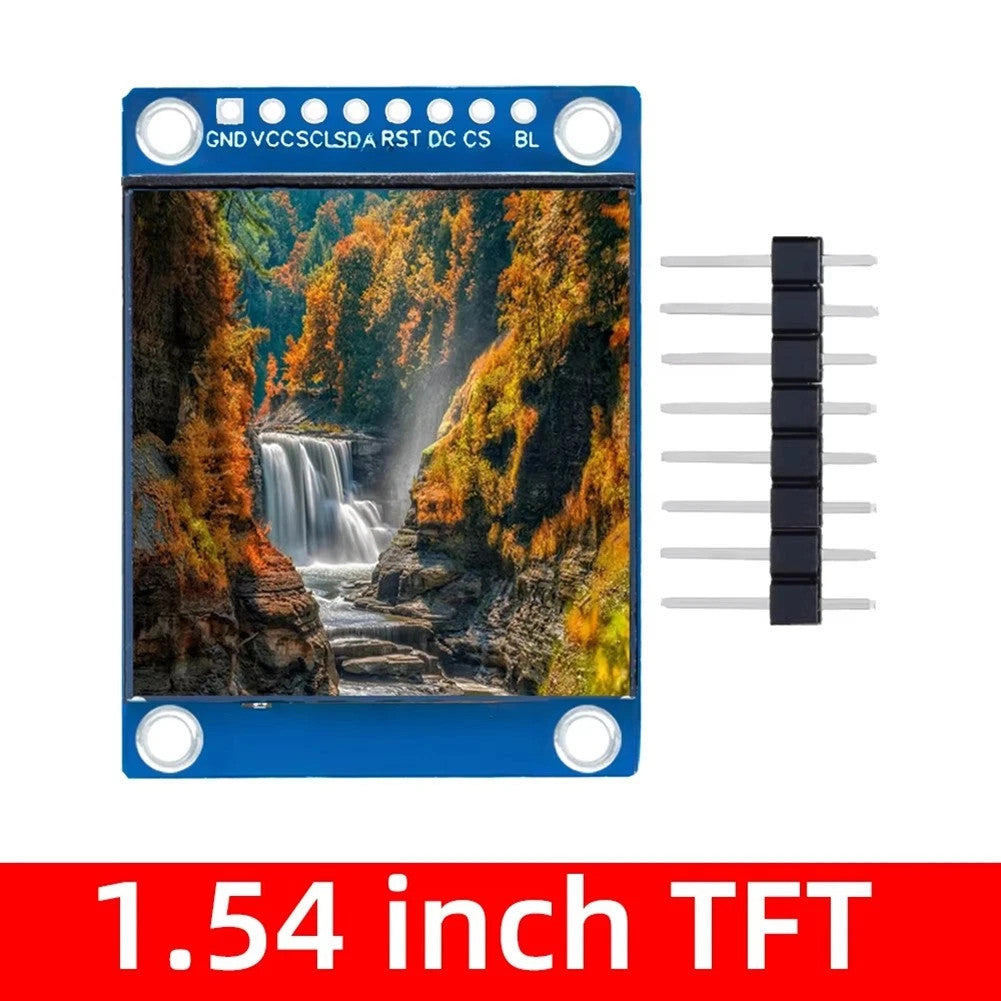

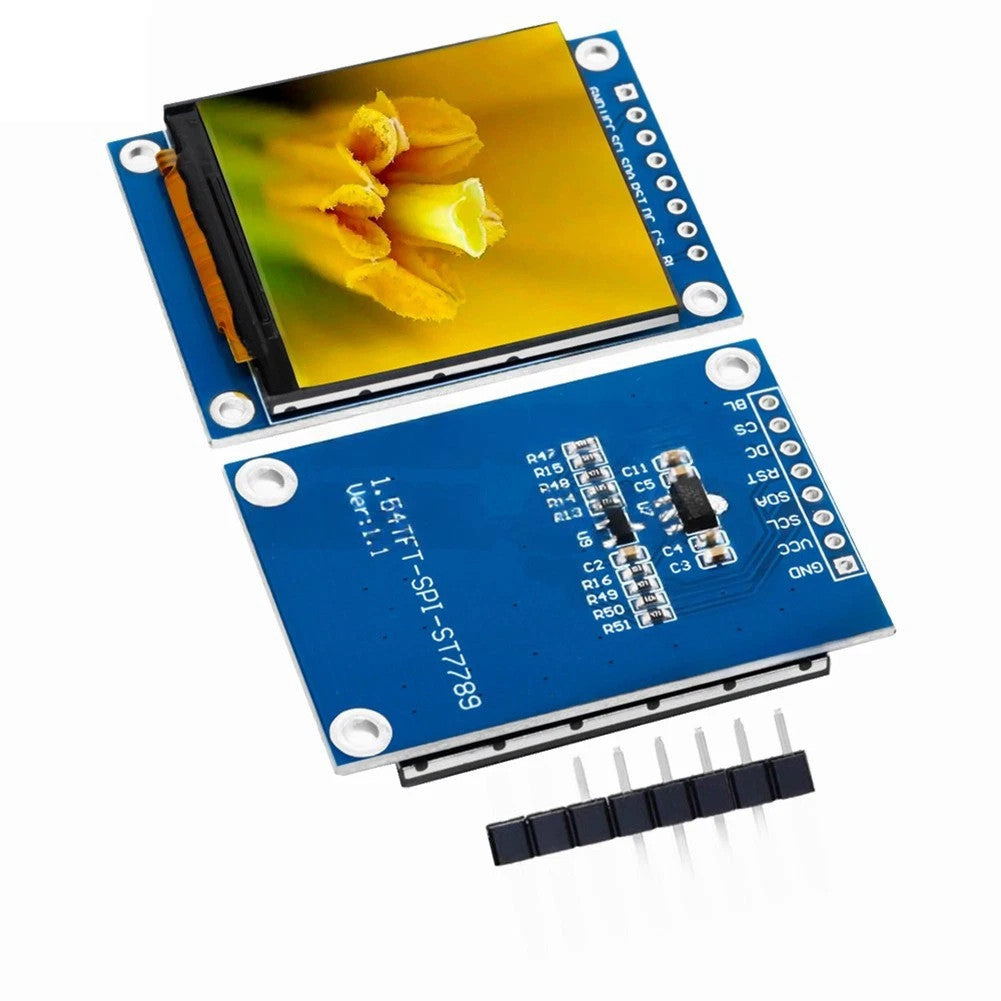

1.54 inch TFT IPS LCD Display Module 240x240 SPI ST7789 for Arduino Raspberry Pi
In stock
Business & Industrial > Electrical Equipment & Supplies > Electronic Components & Semiconductors > LEDs, LCDs & Display Modules > LCD Display Modules
A-02-05-02
240x240 pixel 1.54 inch IPS tft lcd display with ST7789 controller and breakout board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,...
$12.89
240x240 pixel 1.54 inch IPS tft lcd display with ST7789 controller and breakout board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM, ESP32 and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It's 4-wire serial spi interface with pin header connection.
Resolution: 240 x 240
Panel Type: 1.54INCH TFT, fully transparent
Display Mode: Normally Black
LCM Operating Voltage (VCC-IM): 3-5V
Display Operating Voltage (Vddio): 2.5-3.3V (TYP: 2.8V)
Backlight: 3 white LEDs, = 2.8-3.2V, I/F = 60mA
Operating Temperature: -20°C-70°C
Storage Temperature: -30°C-80°C
Connection/Driver IC: COG/ST7789V3
Soldering Method: 12-pin, 0.7mm pitch
Interface: 4-wire SPI
Viewing Angle: Full
Specification:TFT
Color: As Shown
Material: PCB
Package Included:
1 x 1.54 inch TFT IPS LCD Display Module 240x240 SPI ST7789 for Arduino Raspberry Pi
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
