NodeMCU Lua ESP8266 ESP-12 WeMos D1 Mini WIFI 4MB Development Board Module USA

Out of stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Development Kits & Boards
A-03-10-01
This is D1 mini, it is a mini WIFI board based on ESP-8266EX. 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0) 1 analog input(3.3V max input) a Micro U...
$4.63
  customers are viewing this product

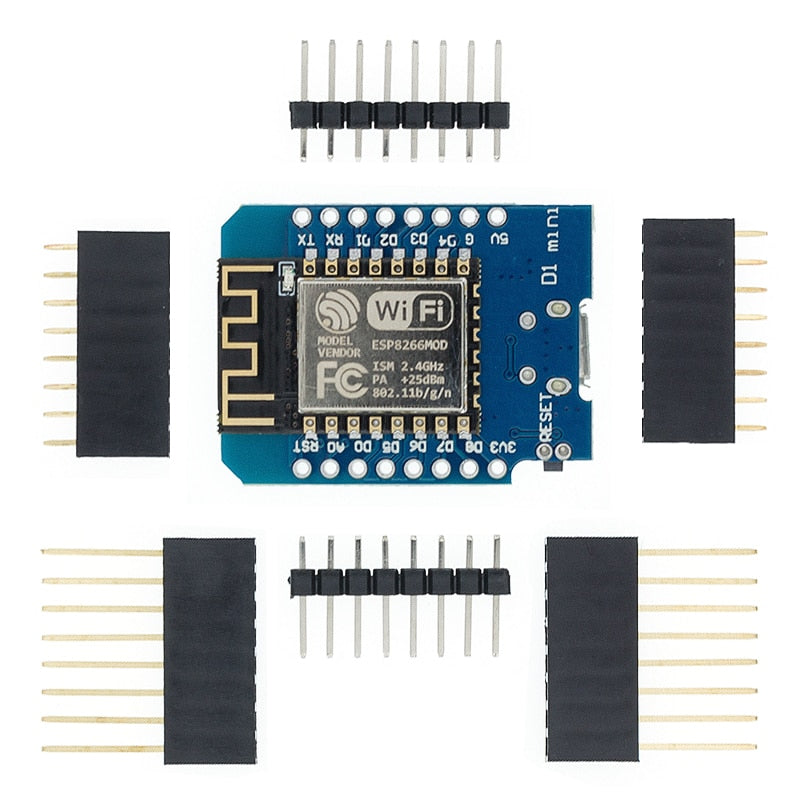

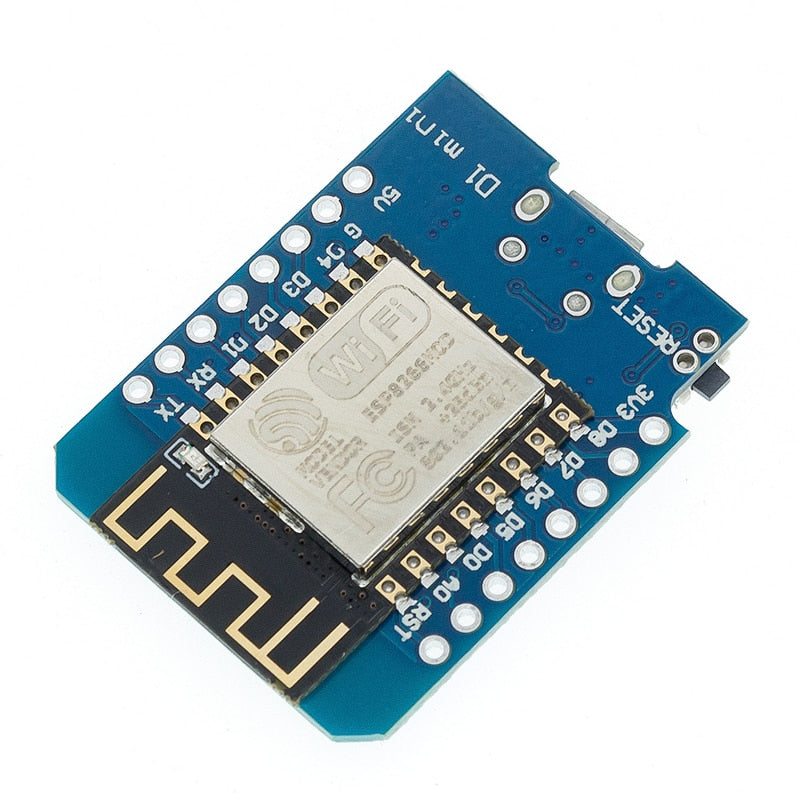

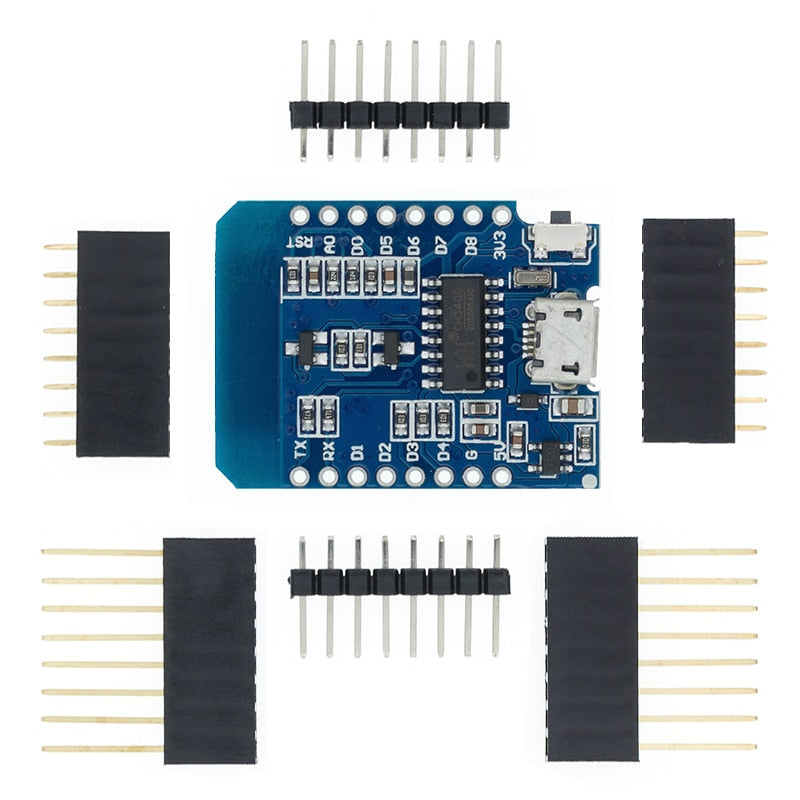

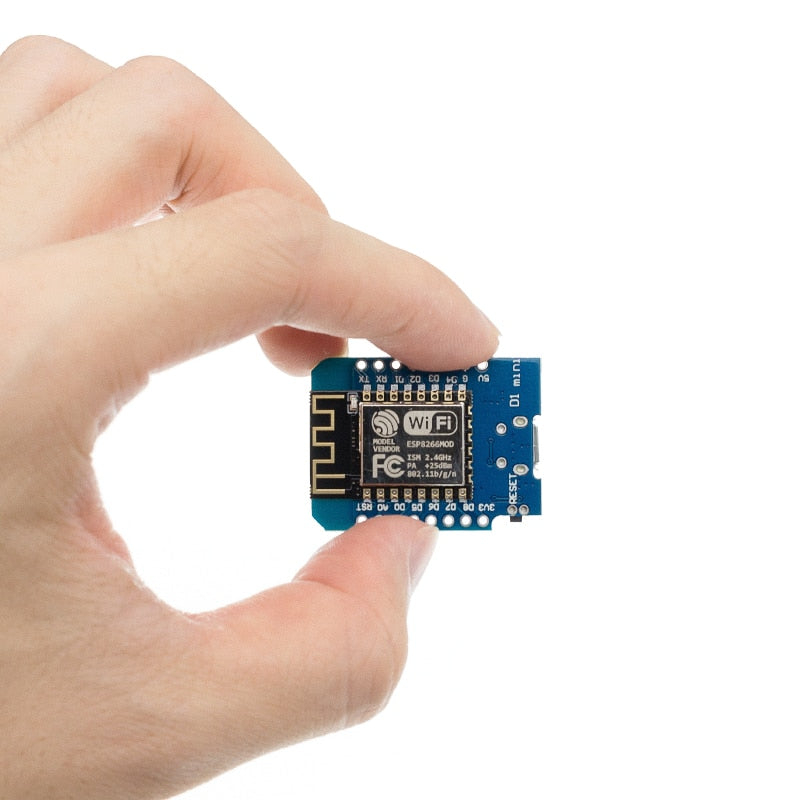

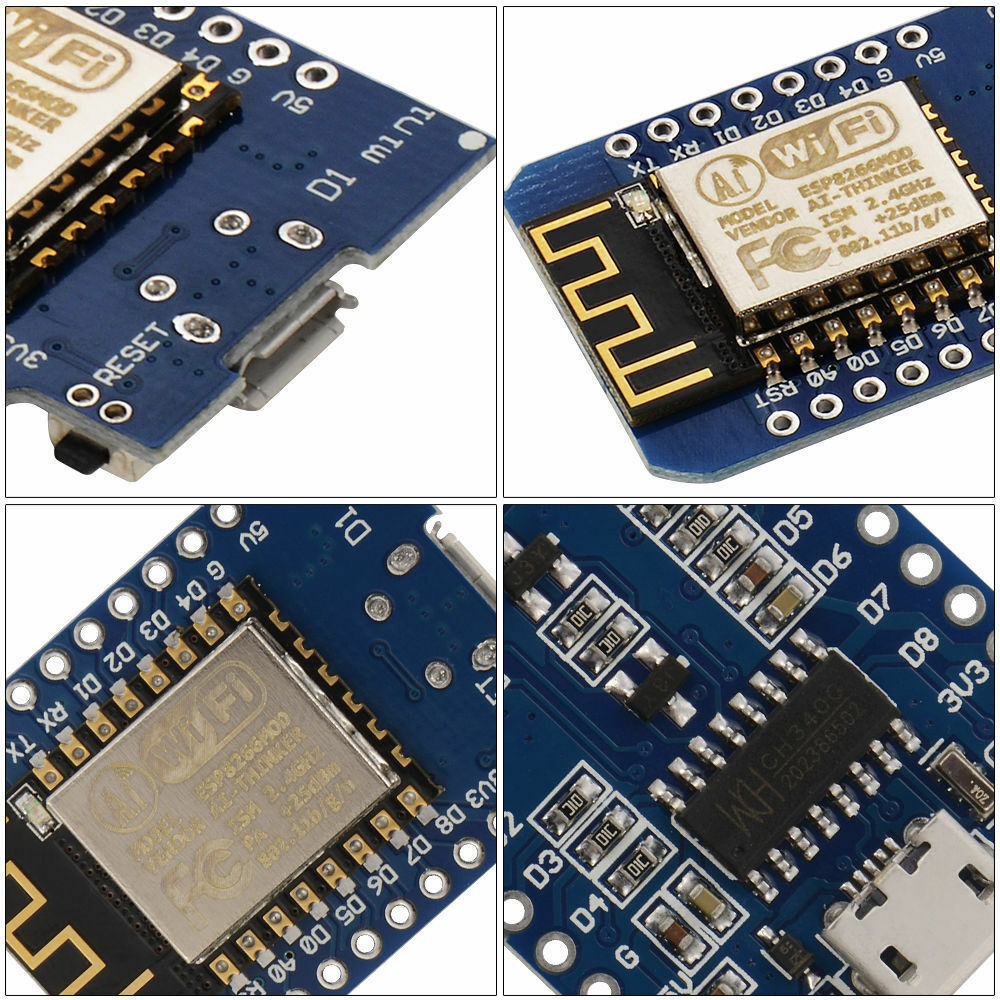

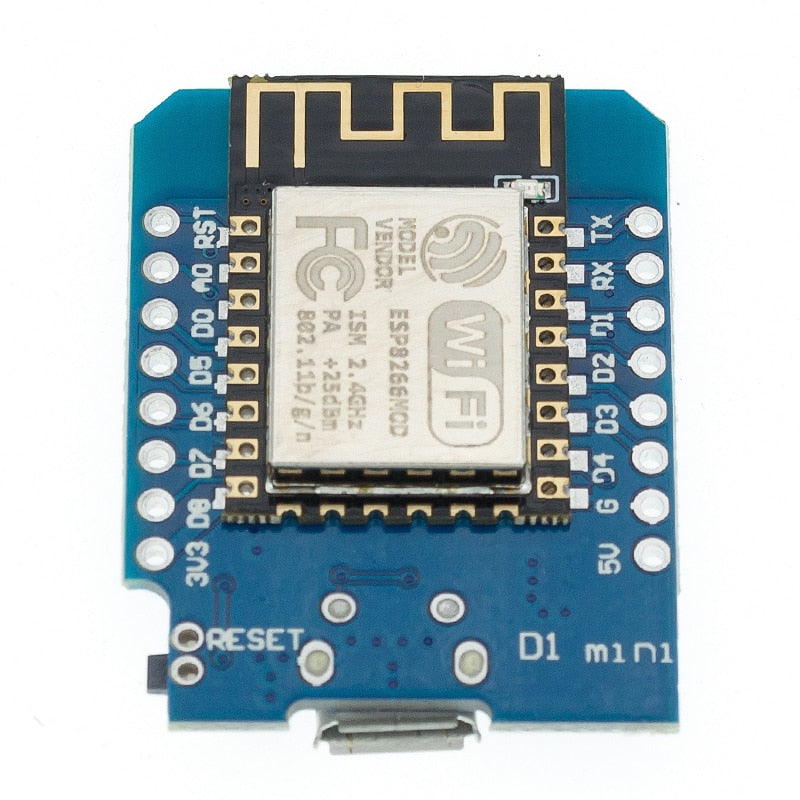

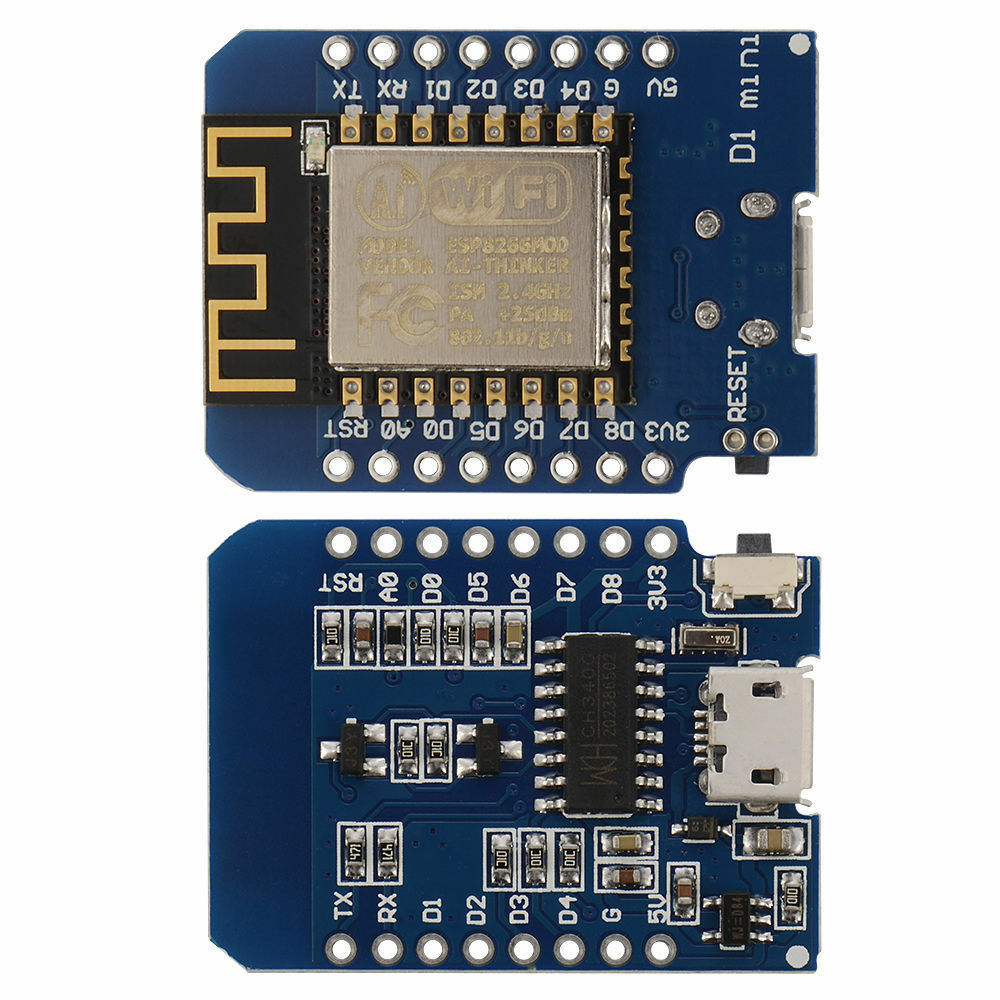

This is D1 mini, it is a mini WIFI board based on ESP-8266EX.

11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)

1 analog input(3.3V max input) a Micro USB connection

How to get started in Arduino:

    Setup driver

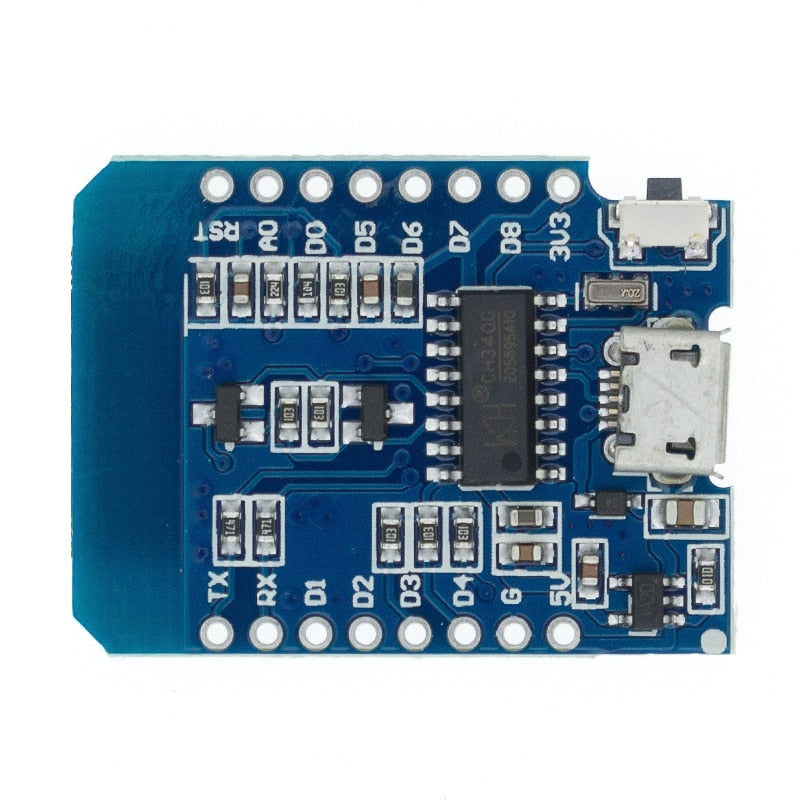

Before you use miniD1 boards, you need setup CH340g driver.

    Python

On Windows you need install Python 2.7.10.

On Linux & MAC OSX, you don't need install it, comes preinstalled with OS.

    Installing Hardware package

There are two ways to install hardware package, Boards Manager or GIT

    Installing with Boards Manager

Starting with 1.6.4, Arduino allows installation of third-party platform packages using Boards Manager. We have packages available for Windows, Mac OS, and Linux (32 and 64 bit).

<1>. Install Arduino the latest version IDE from the Arduino website.

<2>. Start Arduino and open Preferences window.

<3>.Enter link: arduino.esp8266.com/stable/package_esp8266com_index.json (with http:// in front of arduin....) into Additional Boards Manager URLs field. You can add multiple URLs, separating them with commas.

<4>. Open Tools→Board:xxx→Boards Manager and install esp8266 by ESP8266

Community (and don't forget to select your ESP8266 board from Tools > Board menu after installation).

    Installing with GIT (Recommend):

We recommend using GIT to install Hardware package, you can always get the latest version of it.



Package Included

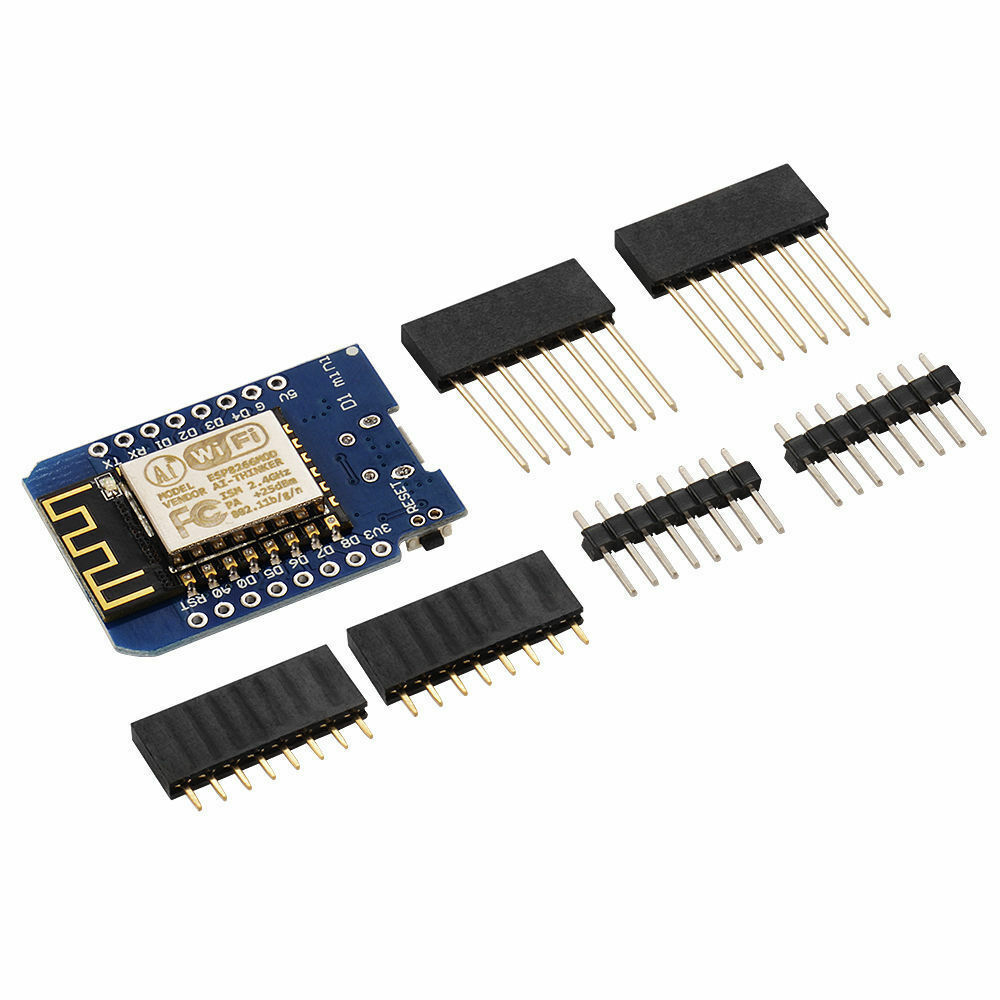

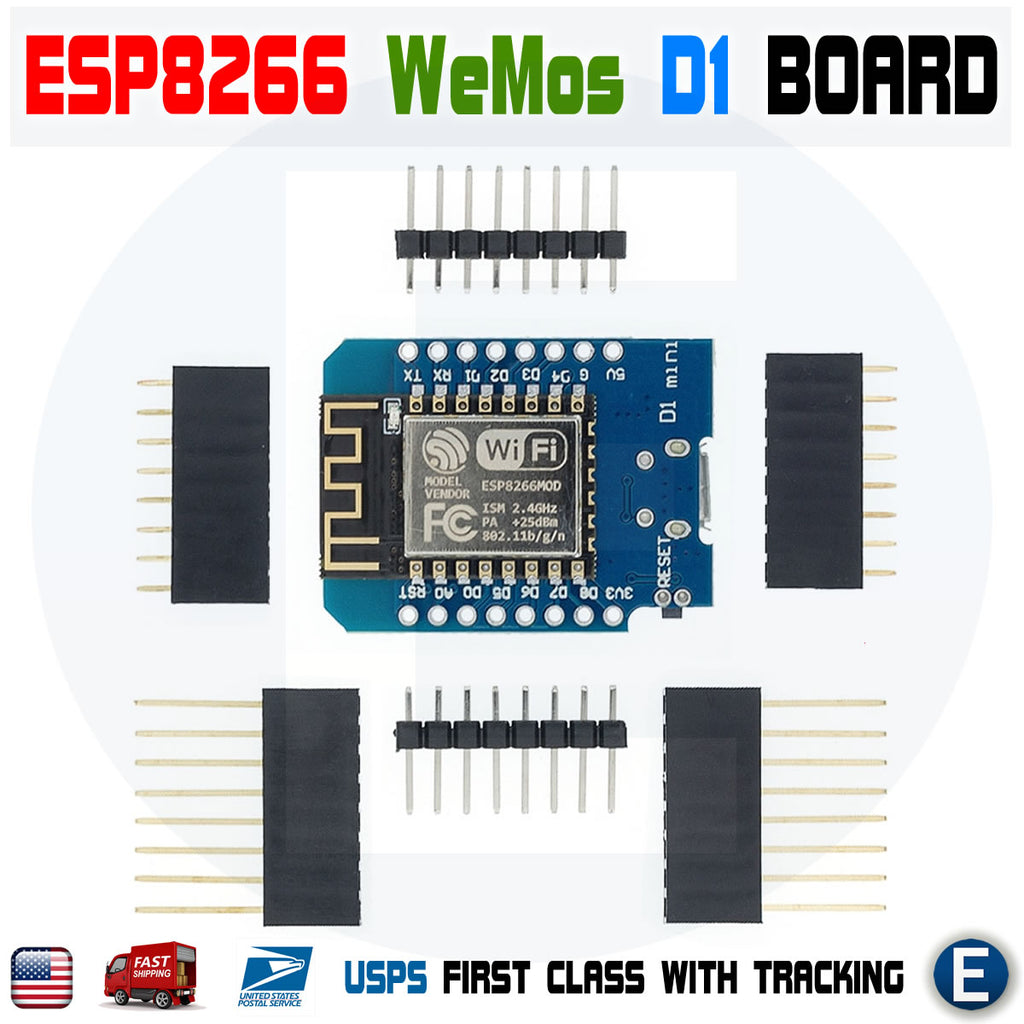

1 x ESP8266 ESP-12 ESP12 WeMos D1 Mini WIFI Dev Kit Development Board NodeMCU Lua
