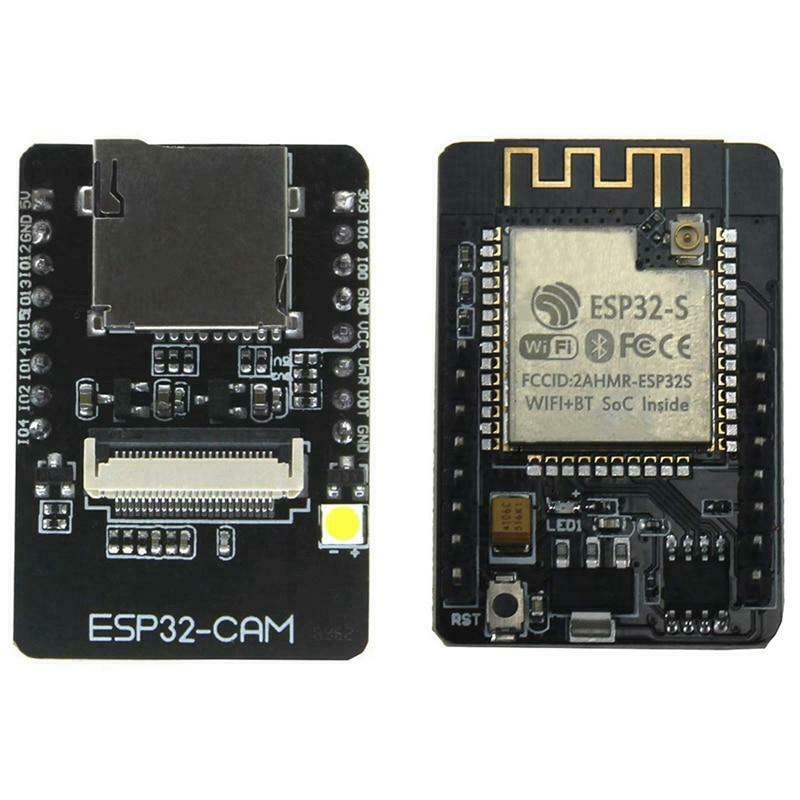

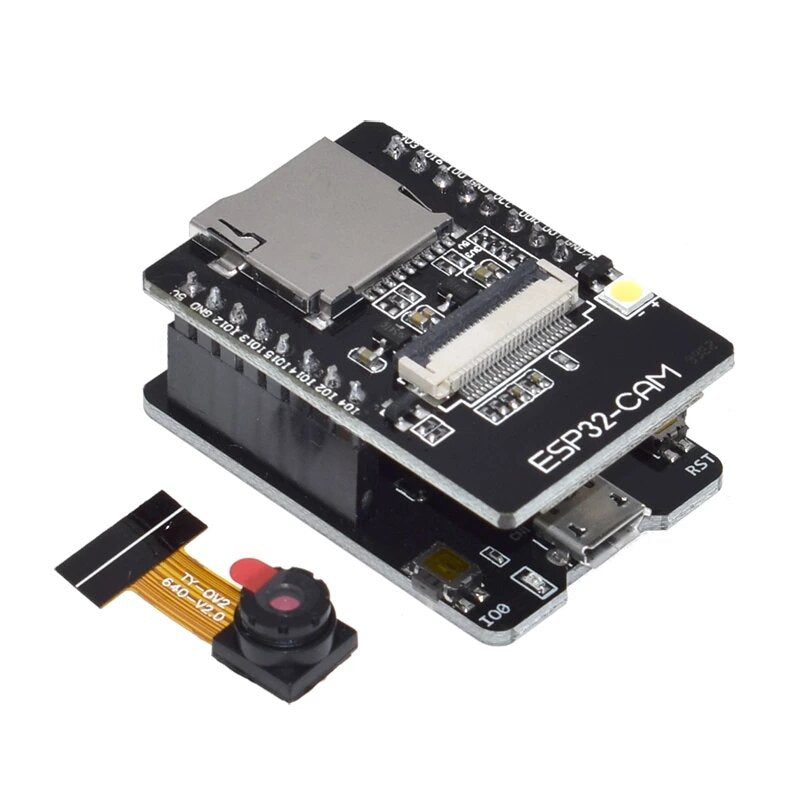

ESP32-CAM ESP32 WIFI Bluetooth Development Board + OV2640 Camera + Antenna + MB

Out of stock
Business & Industrial:Electrical Equipment & Supplies:Electronic Components & Semiconductors:Semiconductors & Actives:Development Kits & Boards
Unbranded
A-03-11-07
Product Features Low-power dual-core 32-bit CPU for application processors Main frequency up to 240MHz, computing power up to 600 DMIPS Built-in 520 KB SRAM, external 4M PSRAM Supports interfa...
$15.98
  customers are viewing this product
Product Features
Low-power dual-core 32-bit CPU for application processors
Main frequency up to 240MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC

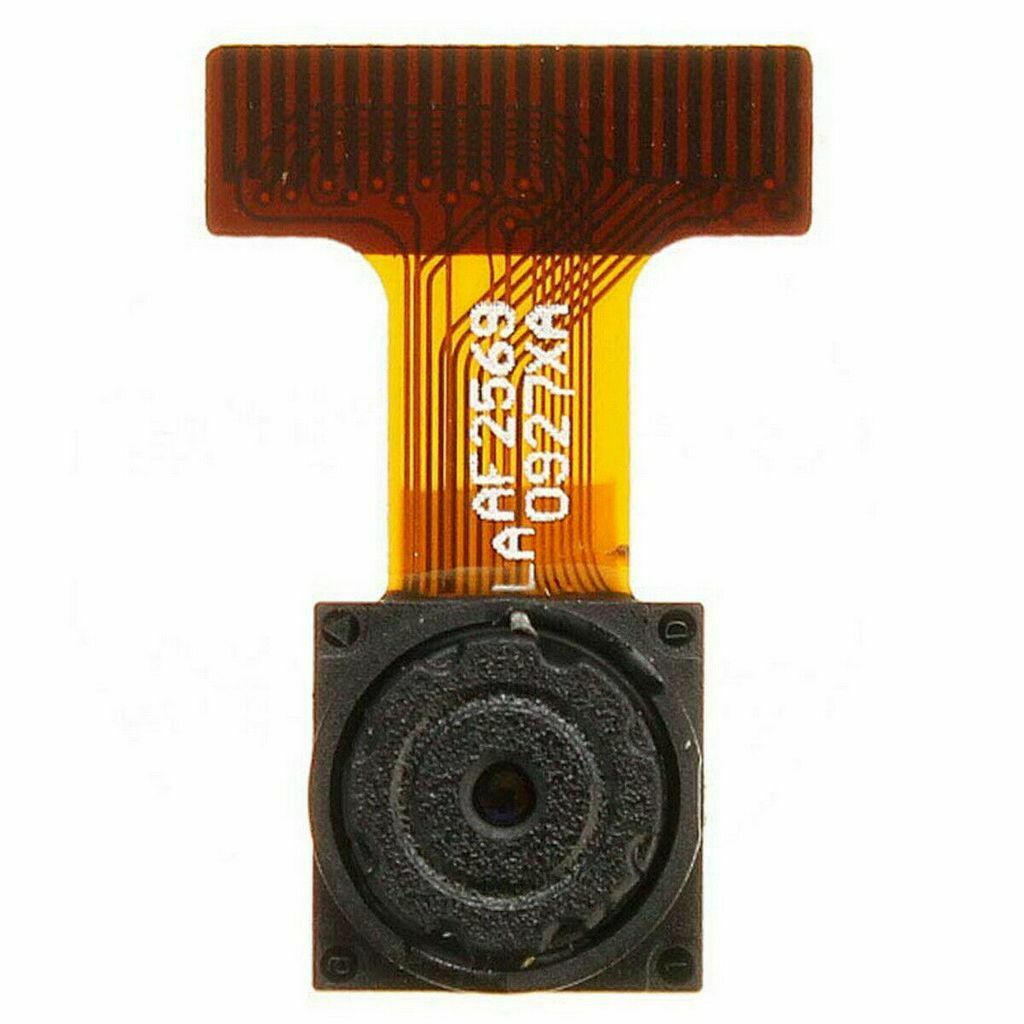

Support OV2640 and OV7670 cameras, built-in flash
Support image WiFi upload
Support TF card
Support multiple sleep modes
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click distribution network
Support secondary development

WIFI module: ESP-32S
Processor: ESP32-D0WD
Built-in Flash: 32Mbit
RAM: Internal 512KB + External 4M PSRAM
Antenna: Onboard PCB antenna
WiFi protocol: IEEE 802.11 b/g/n/e/i
Bluetooth: Bluetooth 4.2 BR/EDR and BLE
WIFI mode: Station / SoftAP / SoftAP+Station
Security: WPA/WPA2/WPA2-Enterprise/WPS
Output image format: JPEG (OV2640 support only), BMP, GRAYSCALE
Supported TF card: up to 4G
Peripheral interface: UART/SPI/I2C/PWM
IO port: 9
UART baud rate rate: default 115200bps
Power supply: 5V
Transmitting power:
802.11b: 17 ±2dBm(@11Mbps)
802.11g: 14 ±2dBm(@54Mbps)
802.11n: 13 ±2dBm(@HT20,MCS7)
Receiving sensitivity:
CCK,1Mbps: -90 dBm
CCK,11Mbps: -85 dBm
6Mbps(1/2 BPSK): -88 dBm
54Mbps(3/4 64-QAM): -70 dBm
HT20,MCS7(65Mbps, 72.2Mbps): -67 dBm
Power consumption:
Flash off: 180mA@5V
Flash on and brightness max: 310mA@5V
Deep-Sleep: as low as 6mA@5V
Modern-Sleep: as low as 20mA@5V
Light-Sleep: as low as 6.7mA@5V
Operating temperature: -20 ° ~ 85 °
Storage environment: -40 ° ~ 90 °, <90%RH
Dimensions: 40.5mm x 27mm x 4.5mm

Package Included:
1 x ESP32-CAM ESP32 WIFI Bluetooth Development Board + OV2640 Camera + Antenna + MB
Instructions/schematic are NOT included. We don't provide technical assistance please make sure that you are familiar with the product before purchasing.
